Features

• Four-component intumescent system is ideal for firestopping larger penetrations such as cable trays and conduit
• Forms effective intermittent fire-break within horizontal and vertical cable tray runs
• Hard char material tightly seals penetrations against flame spread, smoke and toxic gases
• Easy to install: cut, form and install using common trade tools for nearly any size
• Thermally conductive: allows unwanted heat build-up to escape, helping reduce derating issues

Specifications

• Manufacturer Catalog Number: 7100011415
• Color Family (incorporate Product Color): Gray
• Fire Rating: 4 Hour
• Overall Length (Imperial): 36 in
• Overall Length (Metric): 0.914 m
• Overall Width (Imperial): 3 ft
• Overall Width (Metric): 0.914 m
• Size: 36 in x 36 in

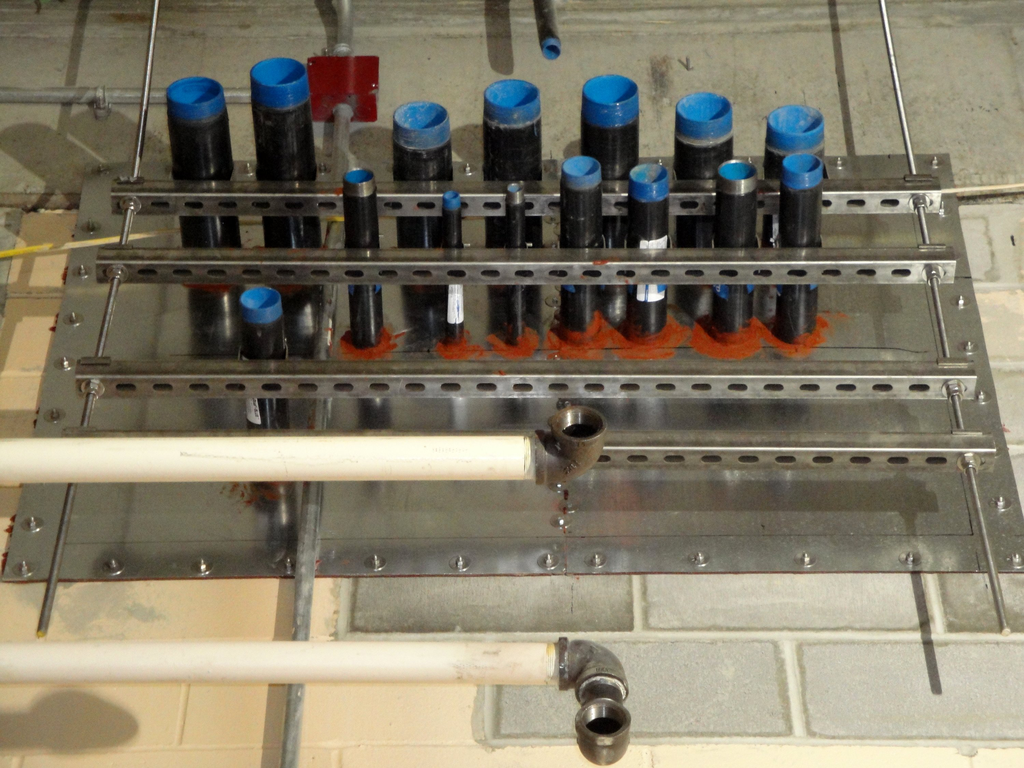

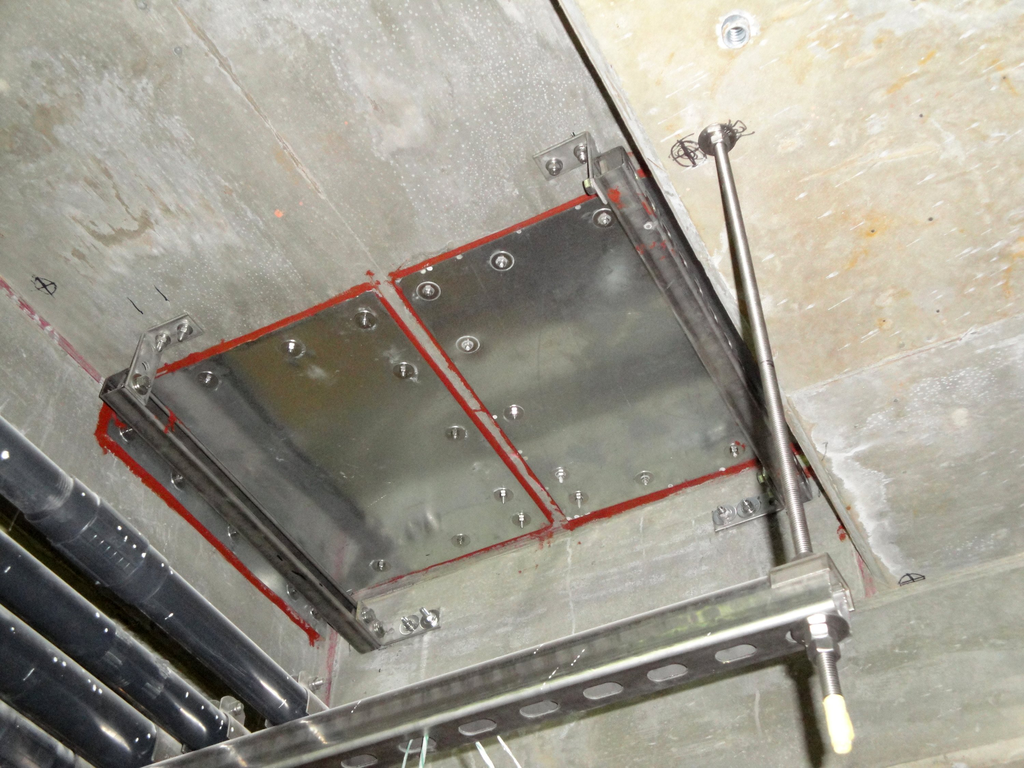

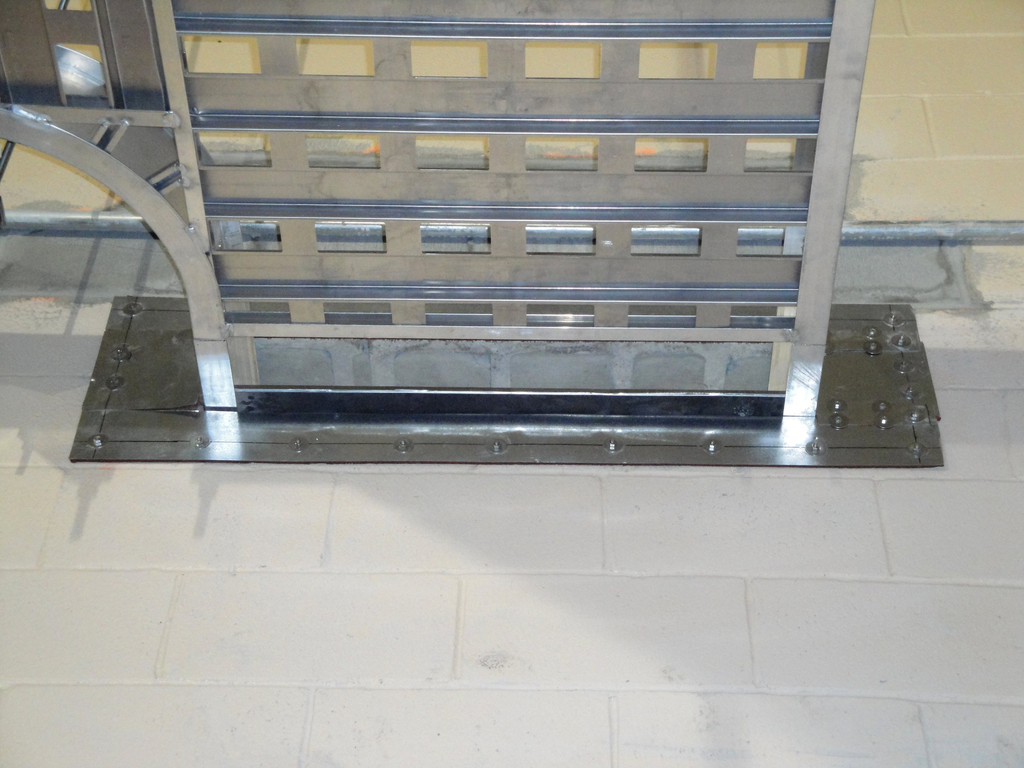

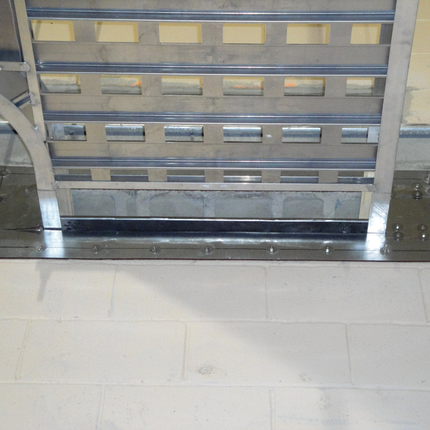

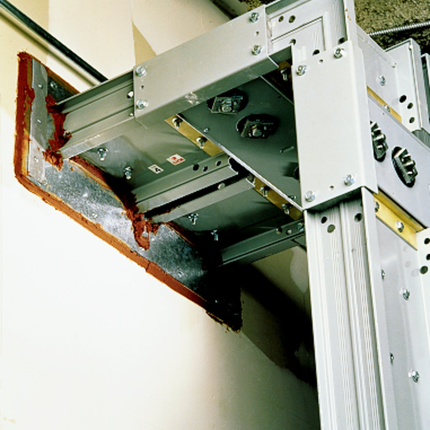

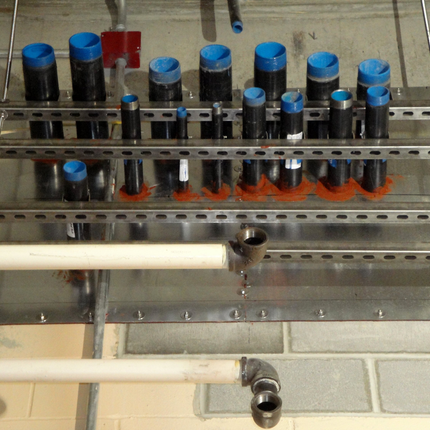

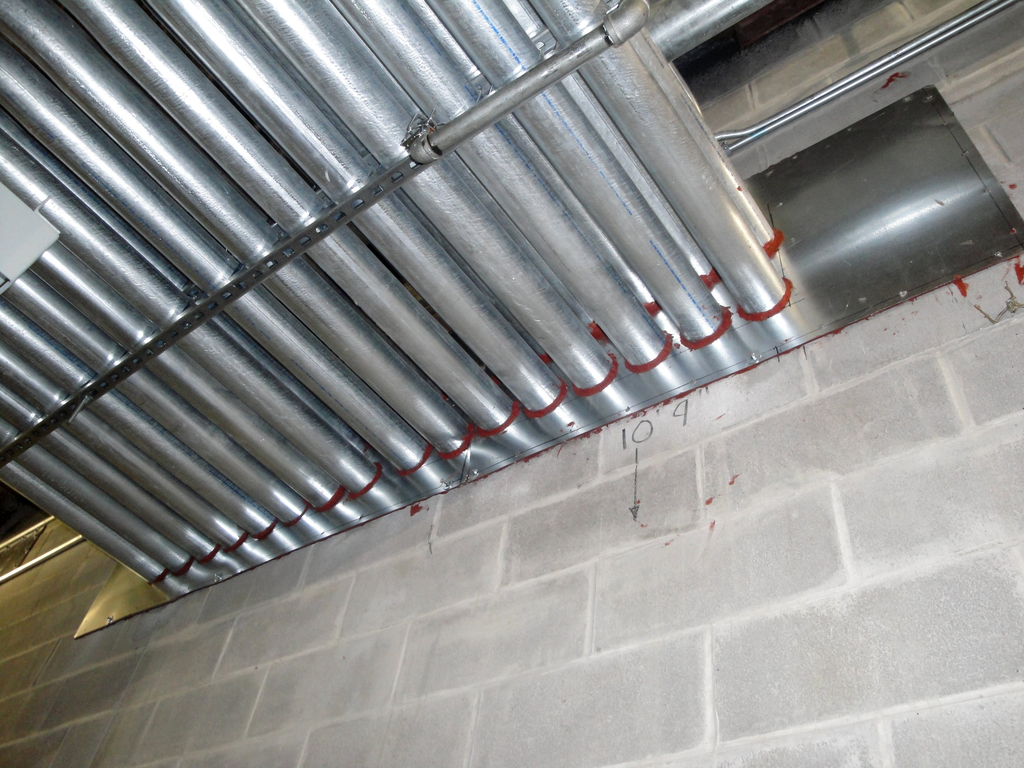

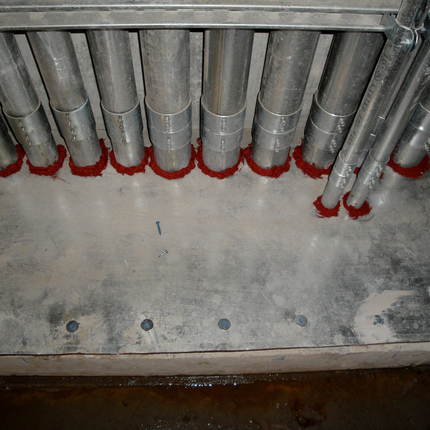

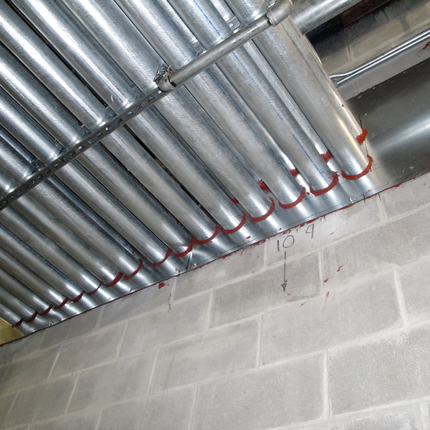

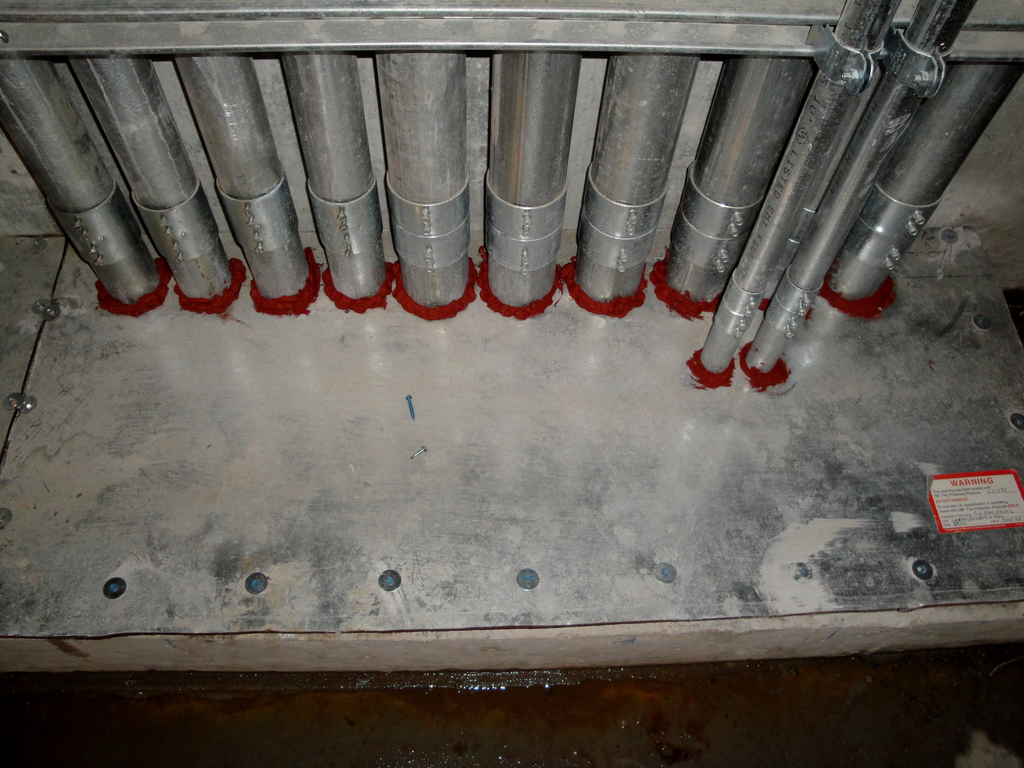

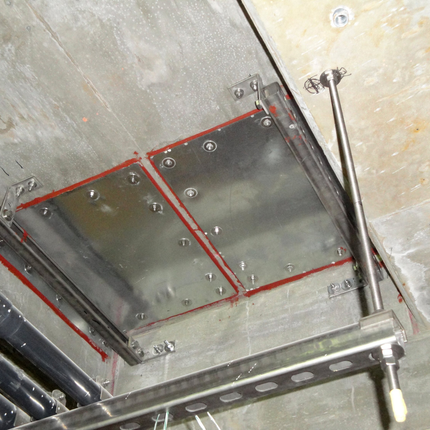

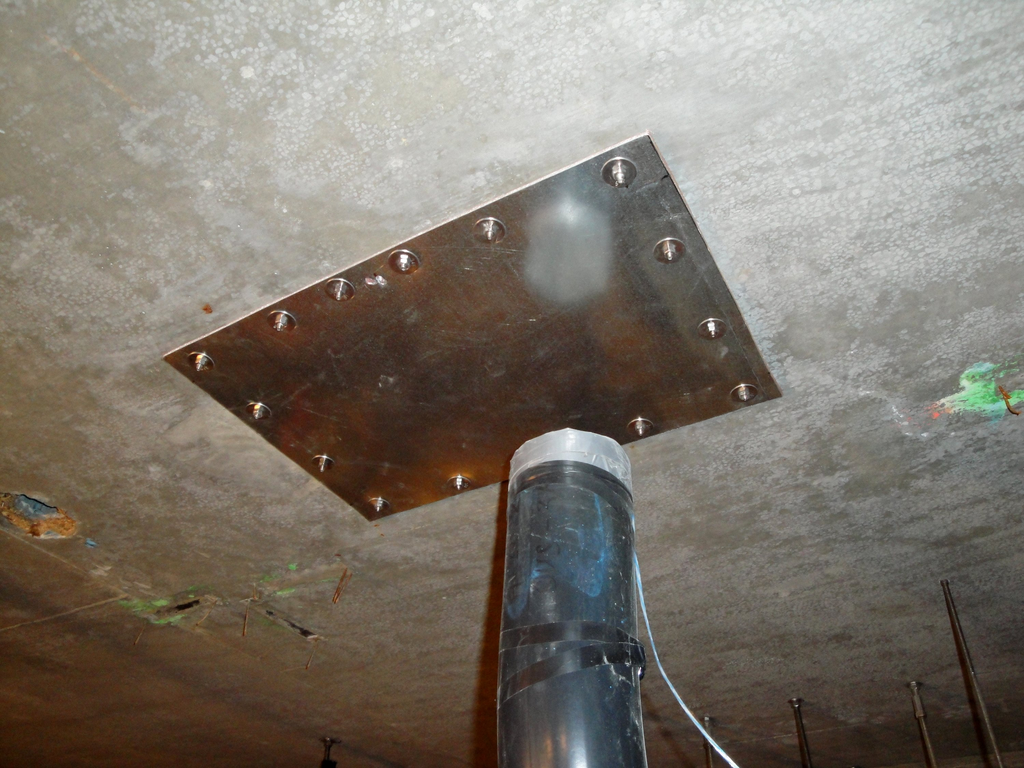

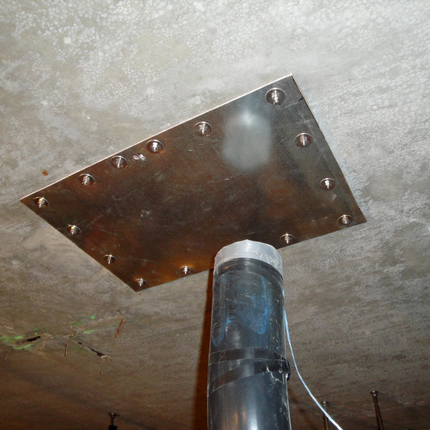

• Suggested Application 1: A UL-Classified firestop used to seal cable trays, cable, piping and other items that penetrate through fire-rated walls and floors. The product firestops large blanks and provides a smoke seal (when used in conjunction with 3M™ Fire Barrier Sealant or Moldable Putty MP+) for any shape opening in concrete block or slabs. Use 3M™ Fire Barrier Composite Sheet CS-195+ to shield cable trays, conduit, HVAC ductwork, panels, valves and vital heat-sensitive process equipment. The product is effective in protecting cable drop-outs, junction boxes and cabinets, as well as in providing an intermittent firestop in horizontal and vertical cable tray runs.
• Water-tight: No
