3M Corrosion Protection Kit CPT-1, Cable Min. O.D. 0.66 in (17 mm), Connector Max. O.D. 2.20 in (56 mm), 10/case
SKU: #13017
Part: #7100003712
UPC: 054007430230
3M Corrosion Protection Kit CPT-1, Cable Min. O.D. 0.66 in (17 mm), Connector Max. O.D. 2.20 in (56 mm), 10/case
SKU: #13017
Part: #7100003712
UPC: 054007430230
Next day delivery
Description

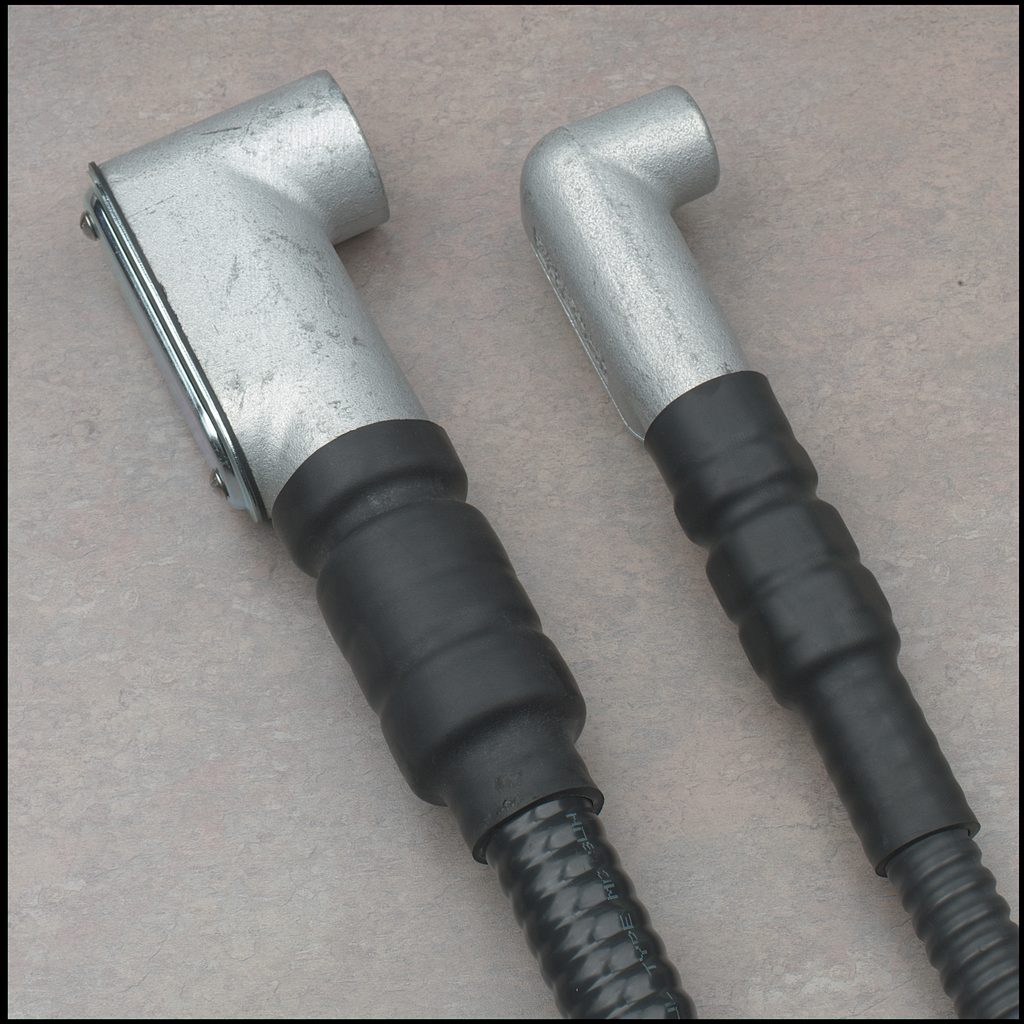

3M Corrosion Protection Kit CPT-1 – Electrical Cable Corrosion Protection
The 3M Corrosion Protection Kit CPT-1 is designed to provide reliable corrosion protection for bulkhead termination connectors in electrical installations. This cold shrink kit offers a quick and effective solution to safeguard connectors from corrosive effects caused by wet and salt-fog environments. Ideal for electrical distributors and wire and cable applications, the CPT-1 kit ensures durable sealing and protection in junction boxes, panel boards, and other enclosures. The kit includes an EPDM rubber insulating sleeve that is factory expanded on a removable core for easy installation.
Specifications
- Manufacturer: 3M
- Manufacturer Part #: 7100003712
- Product Weight: 4.4190 lbs
- Cable Minimum Outer Diameter: 0.66 in (17 mm)
- Connector Maximum Outer Diameter: 2.20 in (56 mm)
- Maximum Installed Length: 4.80 in (122 mm) (from installation guide, page 1)
- Material: EPDM Rubber (contains no chlorides or sulfurs)
- Country of Origin: United States
- Made in USA: Yes
- UPC: 054007430230
Features
- Cold shrink design for easy, tool-free installation
- Factory expanded EPDM rubber sleeve assembled on a removable core
- Includes mastic seal strips for sealing NPT fitting threads
- Provides protection against corrosion in wet and salt-fog environments
- Suitable for use with bulkhead termination connectors on corrugated aluminum armor cable
- Plastic core is recyclable
