3M™ Cold Shrink QT-III Termination Kit 7620-T-95, Tape/Wire/UniShield®Shielding, 5-8.7 kV, Insulation OD 0.32-0.59 in, 3/kit
SKU: #12198
Part: #7620-T-95
UPC: 054007417583
3M™ Cold Shrink QT-III Termination Kit 7620-T-95, Tape/Wire/UniShield®Shielding, 5-8.7 kV, Insulation OD 0.32-0.59 in, 3/kit
SKU: #12198
Part: #7620-T-95
UPC: 054007417583
Next day delivery
Description

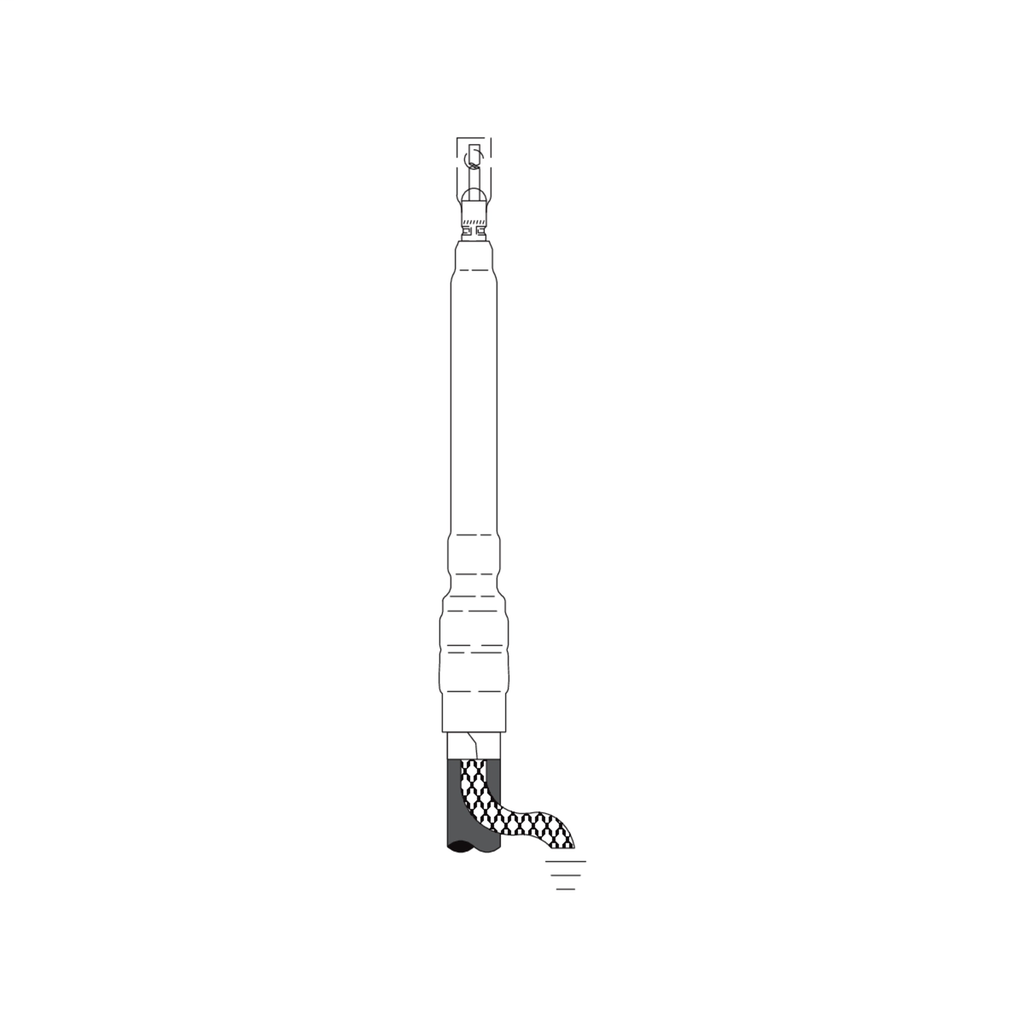

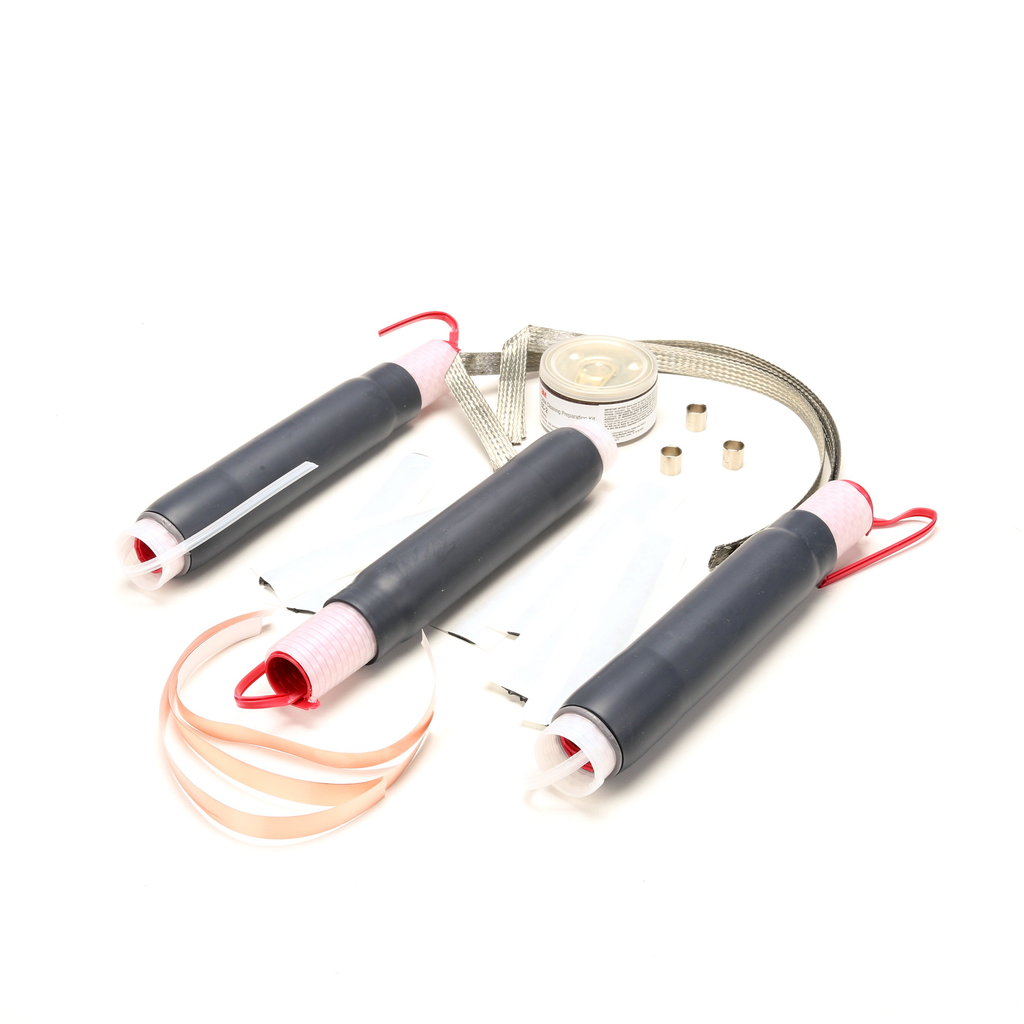

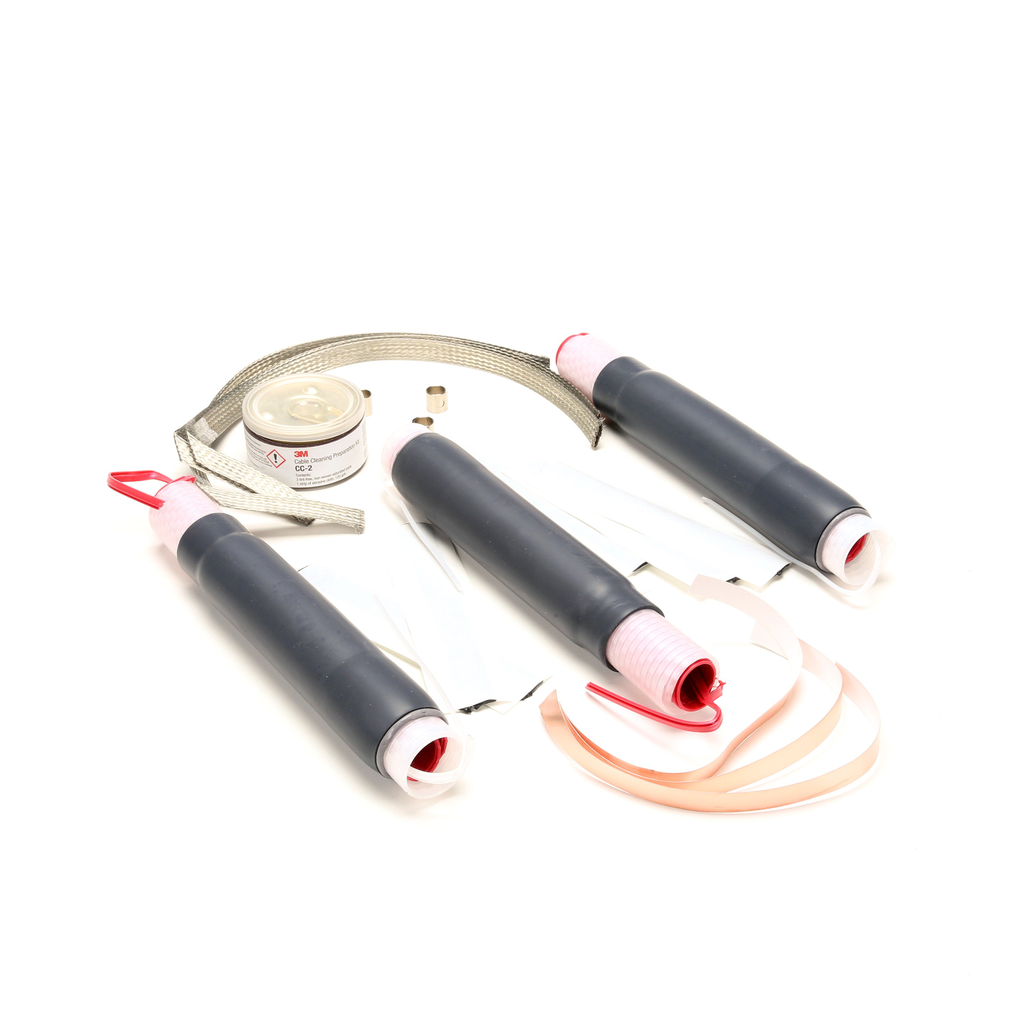

3M™ Cold Shrink QT-III Termination Kit 7620-T-95 – Silicone Rubber Termination Kit
The 3M™ Cold Shrink QT-III Termination Kit 7620-T-95 is designed for terminating solid dielectric shielded power cables rated 5–8.7 kV with tape shield, wire shield, and UniShield® constructions. This kit contains one-piece, non-skirted silicone rubber terminations that meet IEEE Standard 48 Class 1 for indoor and weather-protected applications. It is suitable for electrical distributors and switchgear suppliers requiring reliable cable termination solutions for wire and cable installations.
Specifications
- Manufacturer: 3M
- Manufacturer Part #: 7620-T-95
- Voltage Rating: 5–8.7 kV
- Insulation Diameter Range: 0.32–0.59 in (10.16 millimeters)
- Number of Conductors: 1
- Indoor/Outdoor Use: Indoor Non-skirted
- Product Weight: 2.5570 lbs
- Quantity per Kit: 3
Features
- One-piece, non-skirted silicone rubber terminations
- Meets IEEE Standard 48 Class 1 for indoor and weather-protected applications
- Compatible with tape shield, wire shield, and UniShield® cable constructions
- Cold shrink technology for easy installation without heat or special tools
