Overview

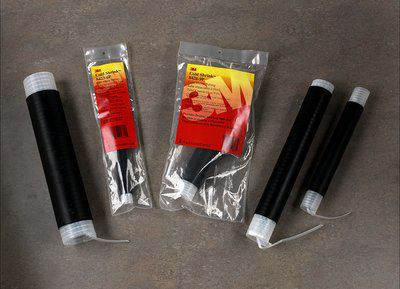

3M™ 8420 Cold Shrink Connector Insulator is an open-ended, tubular sleeve that provides ozone, acids and alkalis resistance. This environmental sealing insulator offers primary electrical insulation for 1 kV-rated applications. The tough, durable, EPDM rubber construction makes the insulator withstand operating temperatures of -40 to 194 degrees F (-40 to 90 degrees C).

3M™ 8420 Connector Insulator is designed for use on all solid dielectric insulated wires and cable splices. This cold shrink insulator offers moisture-tight sealing while maintaining its prolonged resiliency and pressure. It is ideal for insulating secondary splices, direct-buried or submersible, dig-in repairs and physical protection of high-voltage, air-insulated connectors or lugs. ANSI Certified and RoHS 2011/65/EU Compliant.

• Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
• Simple installation which requires no tools
• Suitable for insulating secondary splices, direct-buried or submersible and dig-in repairs
• Insulates cable or connectors within a diameter range of 0.67 - 1.38 in (16,8 - 35,1 mm)
• Accommodates 250 to 400 kcmil conductor sizes
• Made of EPDM rubber which contains no chlorides or sulfur
• Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
• Environmental sealing for communication and other non-electrical applications
• ANSI Certified and RoHS 2011/65/EU Compliant
• 10/case

Specifications

• 3M ID: 80610928386
• Brand: 3M
• Cable Type: Power Cable
• Case Quantity: 10
• Conductor Material: Aluminum, Copper
• Conductor Sizes: 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil
• Inner Diameter After Heat-Shrink: 16.8 mm
• Inner Diameter Before Heat-Shrink: 35.1 mm
• Maximum Connector Length: 8.0 in
• Maximum Connector Length (metric): 203.2 mm
• Number of Conductors: 1
• Product Type: Splice
• RoHS 2011/65/EU Compliant: Yes
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Shielding Type: Non-shielded, Tape Shield, UniShield®, Wire Shield
• Splice Type: Cold Shrink
• Trademark: 3M
• Voltage: 1 kV

Legal Disclaimer

• Manufacturing Origin: USA
• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
