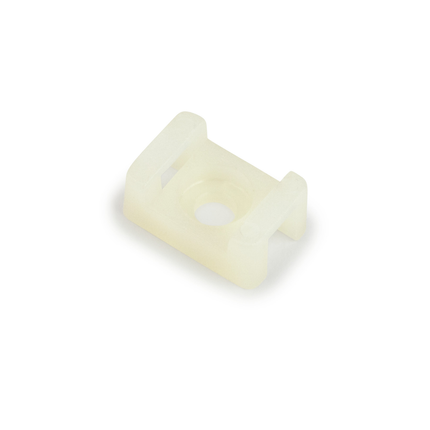

Features

• Makes mounting wires and cables quick, easy and secure
• Features a self-adhesive stick for lightweight applications or a screw mount for heavyweight applications
• Available in neutral or black
• RoHS 2011/65/EU Compliant‎

Specifications

• ETIM Class 8.0: EC000449

Specifications

• Country of Origin: Taiwan
• Mount Type: Screw
• Overall Length (Imperial): 0.87 in
• Overall Length (Metric): 22.0 mm
• Overall Width (Imperial): 0.62 in
• Overall Width (Metric): 15.75 mm
• Slot Height (Imperial): 0.1 in
• Slot Height (Metric): 2.5 mm
• Slot Width (Imperial): 0.35 in
• Slot Width (Metric): 8.89 mm
• Cable Management Products: Cable Tie Bases
• Cable Tie Base Height: 0.38 Inch
• Cable Tie Base Height (Metric): 10.0 mm
• Cable Tie Base Length: 0.87 in
• Cable Tie Base Length (Metric): 22 mm
• Cable Tie Base Width: 0.62 Inch
• Cable Tie Base Width (Metric): 16 mm
• Cable Tie Type: Base
• For Use With: Miniature, Intermediate, Standard, & Heavy Duty Cable Ties
• Halogen Free: Yes
• MIL Approval: No
• Manufacturing Origin: USA
• Material: Nylon
• Maximum Operating Temperature: 85 Degree Celsius
• Maximum Operating Temperature (Celsius): 85.0 Degree
• Maximum Operating Temperature (Fahrenheit): 185.0 Degree
• Product Type: Cable Ties
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Slot Width (mm): 5.1 mm
• UL Approval: Yes
• Units per Case: 500.0
• VG Approval: No
