Description
3F3Y075D16 Dry Type Distribution Transformer
The Siemens 3F3Y075D16 is a three-phase dry type distribution transformer designed for electrical distributors and switchgear suppliers requiring reliable power conversion and distribution. It operates at a frequency of 60 hertz and is suitable for applications requiring a 75 kVA rating with a primary voltage of 480V Delta and a secondary load voltage of 208Y/120V. This ventilated transformer meets DOE 2016 energy efficiency standards and is commonly used in commercial and industrial lighting solutions and wire and cable systems.
Specifications
- KVA: 75.00
- Enclosure: NEMA 3R Ventilated
- Phase: Three-Phase
- Line Voltage: 480V Delta
- Load Voltage: 208Y/120V
- Windings: Aluminum
- Temperature Rise: 150° C
- Frequency: 60 Hz
- Taps: 2 - 2.5% FCAN; 4 - 2.5% FCBN
- Approvals: UL, cUL, DOE
- Mounting Type: Floor

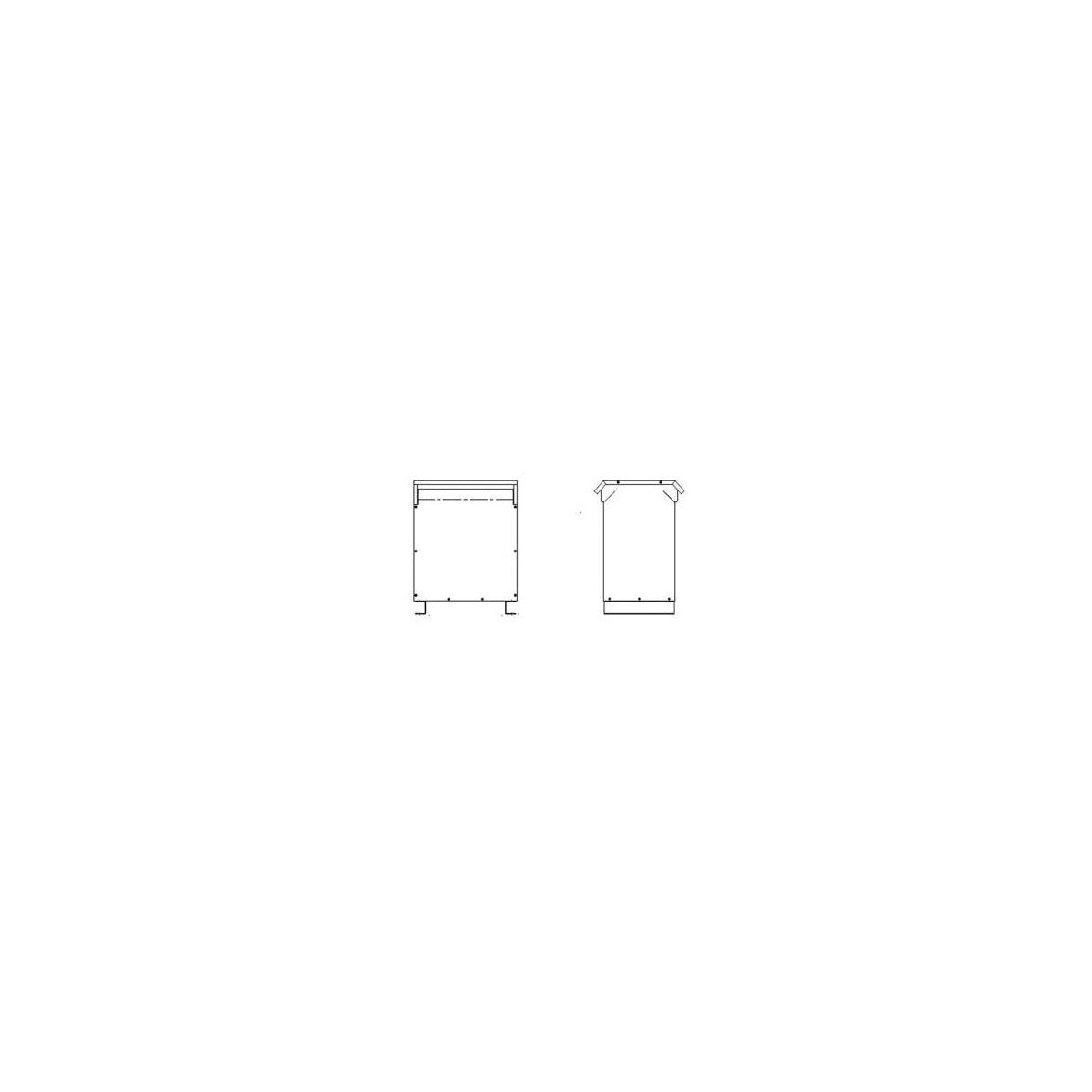

- Dimensions (HxWxD): 32" x 27" x 26"
- Shipping Weight: 585 lbs
Features
- Dry type construction suitable for indoor electrical distribution
- Ventilated NEMA 3R enclosure for enhanced cooling and protection
- Aluminum windings for efficient conductivity and weight reduction
- Meets DOE 2016 energy efficiency standards for regulatory compliance
- Multiple tap settings for voltage adjustment flexibility
- UL and cUL approved for safety and reliability
