3F3Y015D16, Dry Type Distribution Transformer
SKU: #307203
Part: #3F3Y015D16
UPC: 804766144738
3F3Y015D16, Dry Type Distribution Transformer
SKU: #307203
Part: #3F3Y015D16
UPC: 804766144738
Description
3F3Y015D16 Dry Type Distribution Transformer
The Siemens 3F3Y015D16 is a dry type distribution transformer designed for low voltage electrical distribution applications. It features a 3-phase configuration with a primary voltage of 480V and a secondary voltage of 208Y/120V. This transformer is suitable for use by electrical distributors and switchgear suppliers requiring reliable and efficient wire and cable management solutions in industrial and commercial settings.
Specifications
- Manufacturer: Siemens
- Manufacturer Part #: 3F3Y015D16
- Transformer Type: Dry Type Distribution Transformer
- Phase: 3-Phase
- Primary Voltage: 480V
- Secondary Voltage: 208Y/120V
- Rated Power: 15 kVA
- Temperature Rise: 150°C
- Insulation Class: 220
- Windings Material: Aluminum
- K-Factor: 1
- Energy Efficiency: Meets DOE 2016 standards
- Mounting Type: Floor

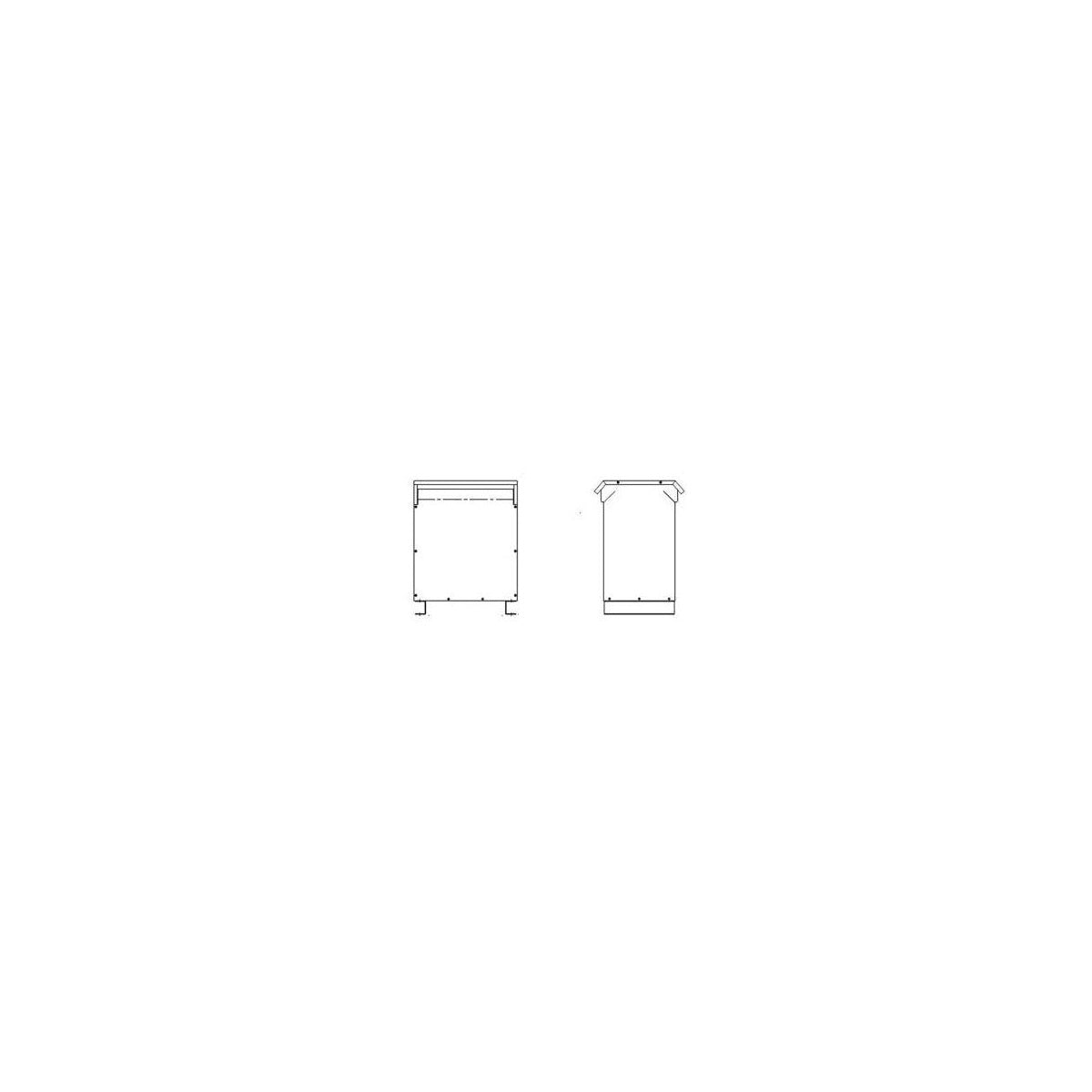

- Dimensions (W x H x L): 19 in x 22 in x 21 in
- Product Weight: 215 lbs
Features
- Six taps with 2.5% voltage adjustment (2 FCAN and 4 FCBN)
- Ventilated design for indoor or outdoor use
- UL listed and designed to ANSI C89.2 and NEMA ST-20 standards
- Aluminum windings reduce weight and improve efficiency
- Meets Department of Energy (DOE) 2016 energy efficiency requirements
- 150°C temperature rise ensures reliable operation under load
- ANSI #61 gray paint for corrosion resistance
