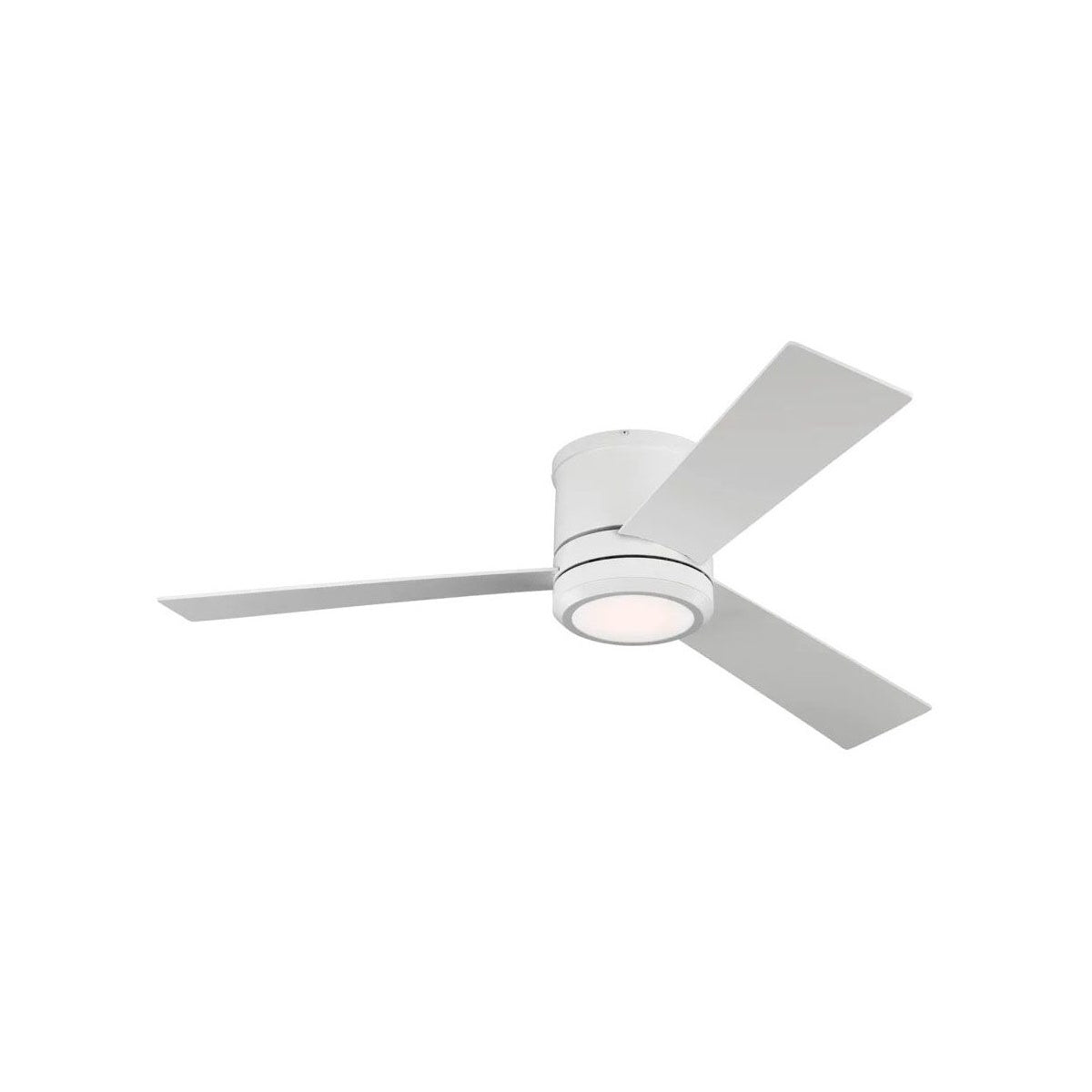

3CLMR56RZWD-V1 Ceiling Fan – Low Profile Ceiling Fan

The 3CLMR56RZWD-V1 ceiling fan by Monte Carlo is a 56-inch low profile ceiling fan designed for rooms with low ceilings. This flush-mount fan features a sleek, three-blade design with plywood blades and an integrated 20W LED downlight. It is damp-rated and includes a four-speed wall control with LED dimmer and manual reverse function, making it suitable for residential and commercial lighting solutions. This model is ideal for electrical distributors and switchgear suppliers focusing on efficient, modern ceiling fans with integrated lighting.

Specifications

• Blade Sweep: 56 Inch
• Number of Blades: 3
• Blade Material: Plywood
• Blade Pitch: 12°
• Lamping: Integrated Downlight, 20W LED
• Light Output: 950 Lumens Net
• Color Temperature (CCT): 2700K
• Color Rendering Index (CRI): 90+
• Mounting: Flush Mount Only
• Controls Included: Wall Mount Control, 4-speed, Dimmer, Manual Reverse
• Fixture Drop: 9.2 Inches
• Blade Drop: 7.6 Inches
• Housing Width: 9.7 Inches
• Motor Size: 172 mm x 17 mm
• Product Weight: 23.9 lbs
• Finish: Matte White Housing with Matte White Blades and Frosted Acrylic Lens
• Energy Use (High Speed): 64 Watts
• Airflow (High Speed): 4381 CFM
• Efficiency (High Speed): 68 CFM/Watt
• Damp Rated: Yes

Features

• Low profile design ideal for rooms with low ceilings
• Integrated LED downlight with high CRI and warm color temperature
• Four-speed wall control with LED dimmer and manual reverse for versatile operation
• Damp-rated for use in covered outdoor or humid environments
• Energy-efficient motor and lighting system
• Sleek three-blade design with plywood blades for durability and style

Downloads & Links

• Catalog
• Warranty
• Parts
• Specification/Technical
• Installation/Operator
