36x12x36 Hinge Cover Type 3R Steel No Knockouts ANSI 61 Gray Double Doors Padlocking 3 Point Handle Back Panel Weld Studs Draw Shield No Center Position
SKU: #200620
Part: #363612-CT3R
UPC: 784572161856
36x12x36 Hinge Cover Type 3R Steel No Knockouts ANSI 61 Gray Double Doors Padlocking 3 Point Handle Back Panel Weld Studs Draw Shield No Center Position
SKU: #200620
Part: #363612-CT3R
UPC: 784572161856
Description

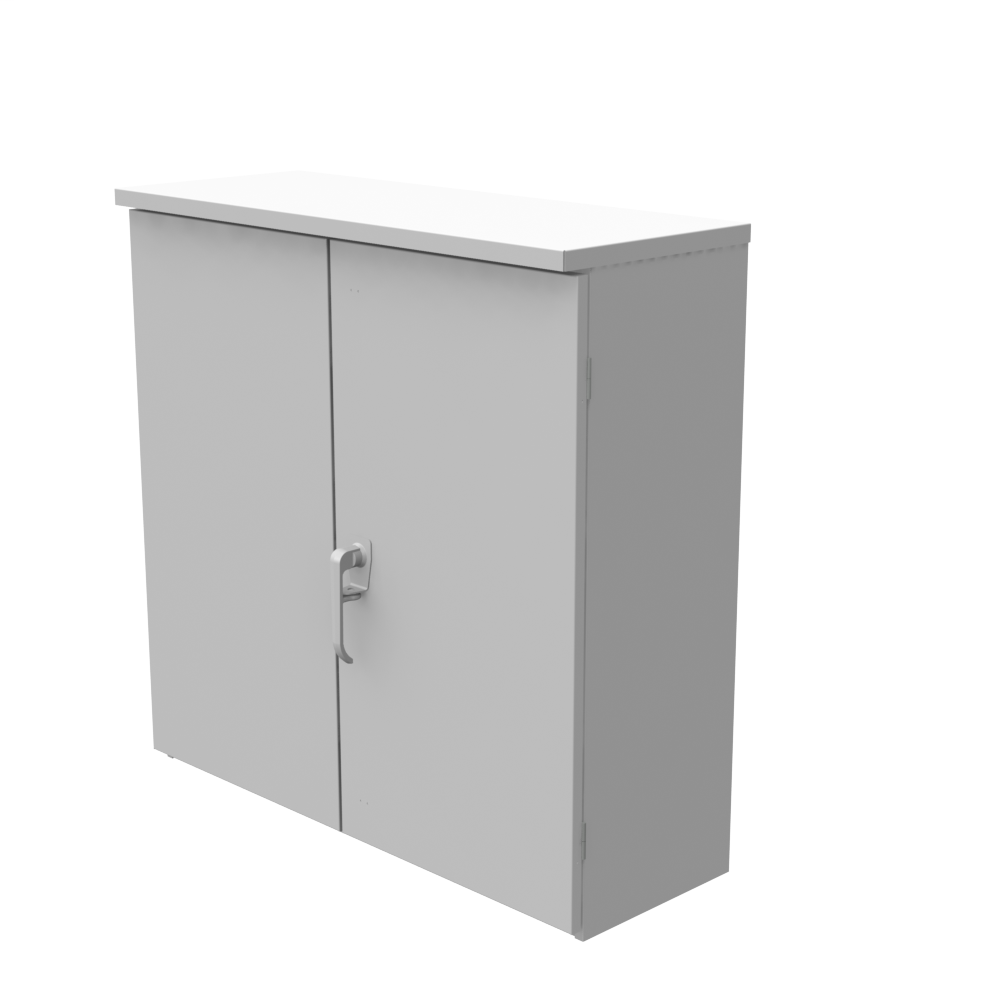

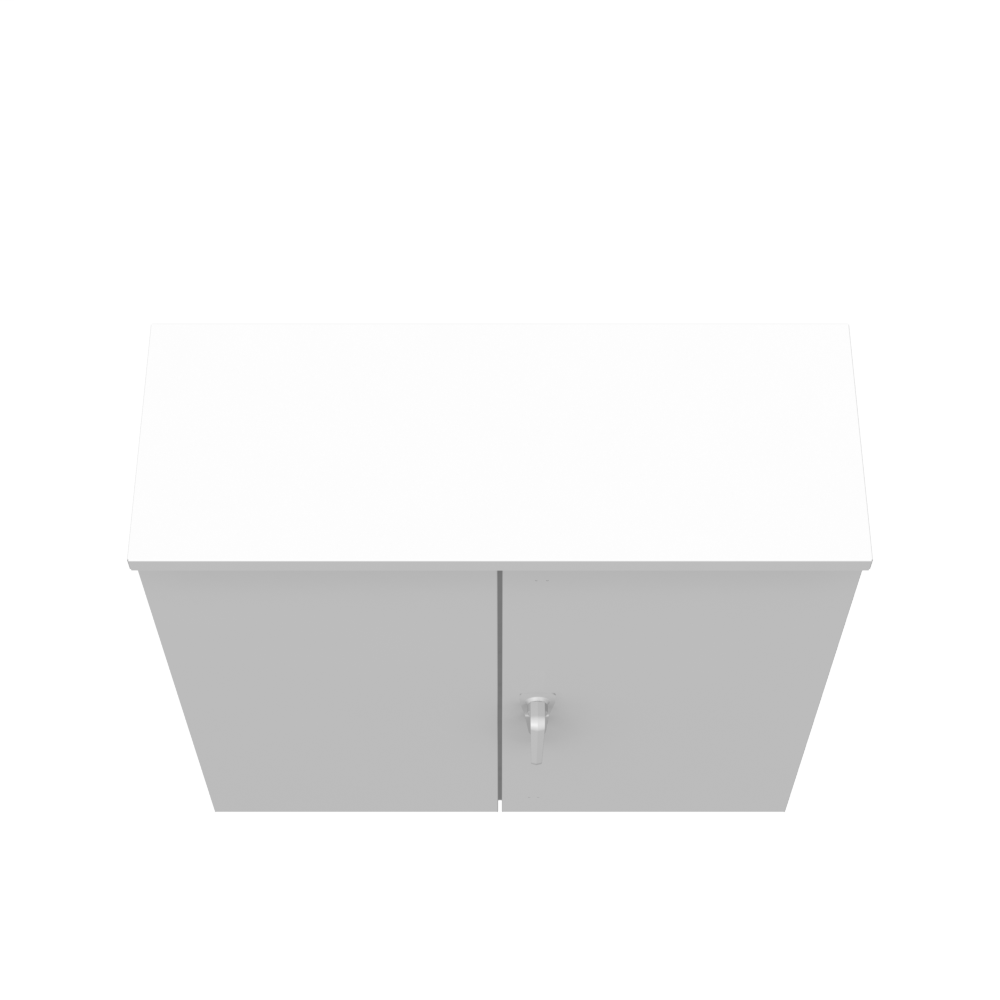

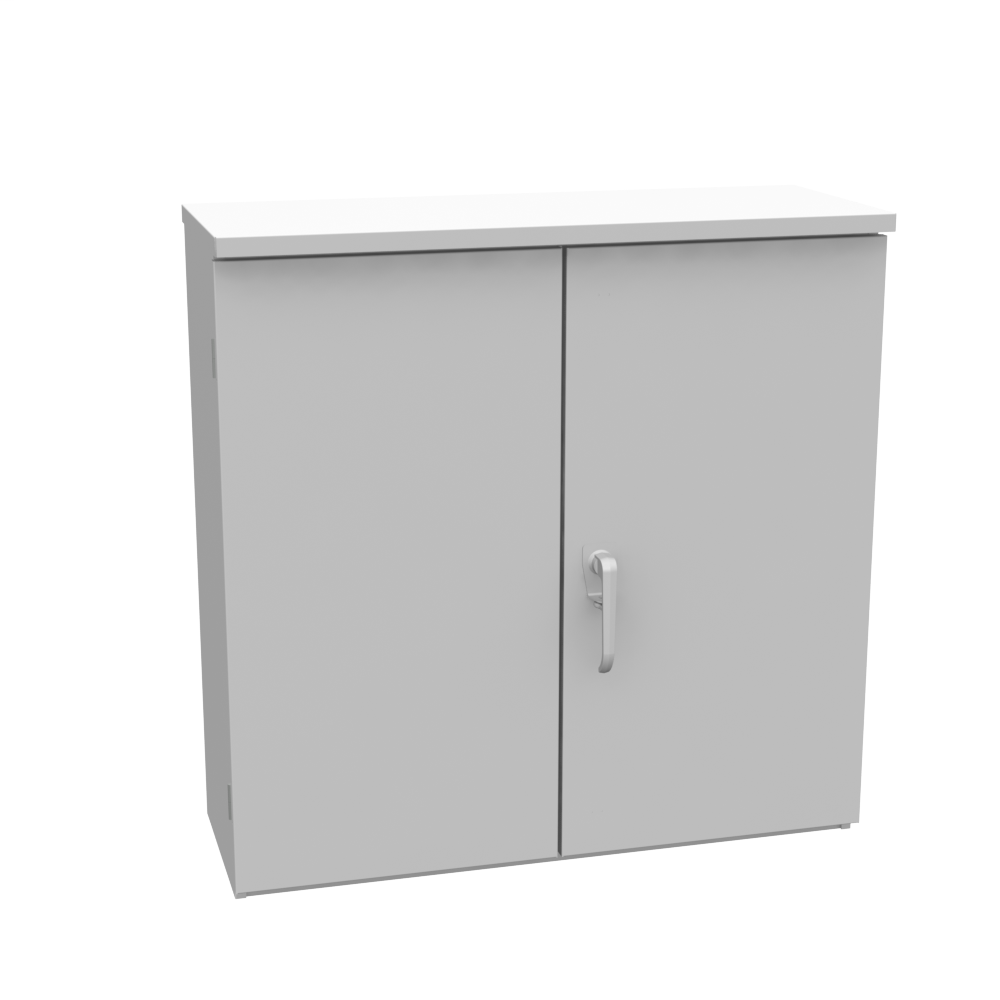

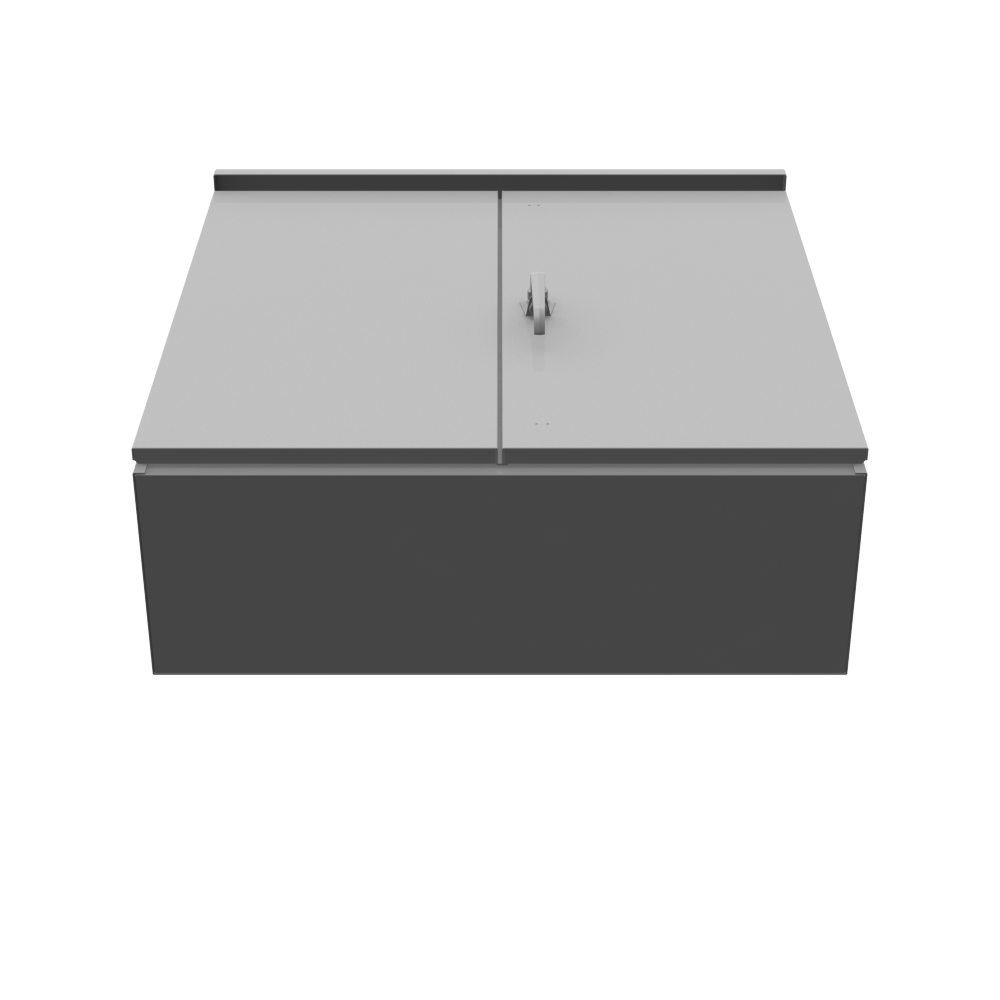

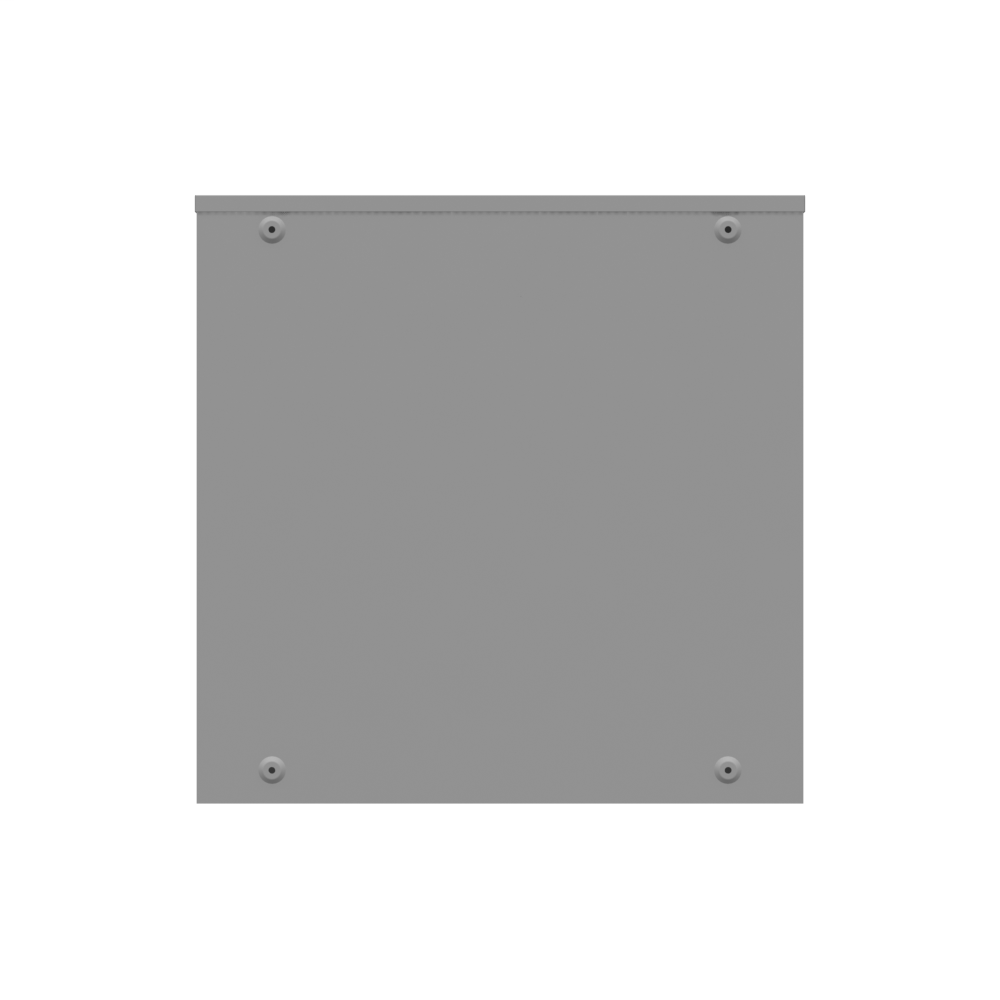

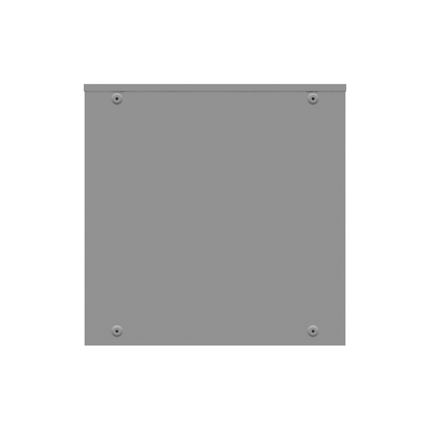

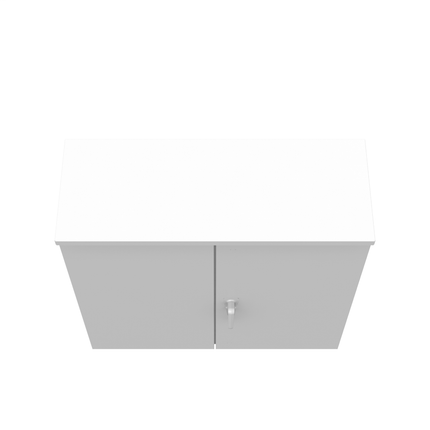

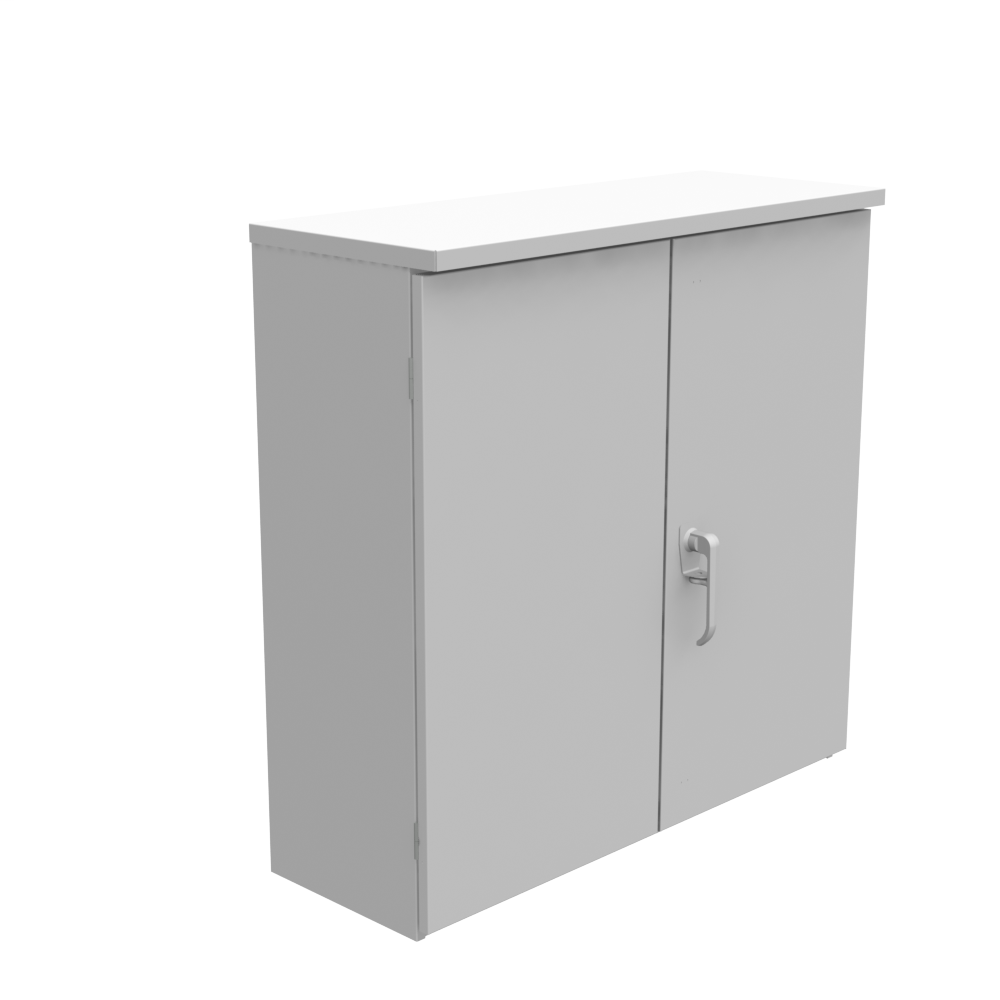

36x12x36 Hinge Cover Type 3R Steel Enclosure – Current Transformer Cabinet
This Milbank 36x12x36 hinge cover enclosure is designed as a current transformer cabinet suitable for outdoor and indoor electrical applications. It provides secure and weather-resistant housing for current transformers, making it an essential component for electrical distributors and switchgear suppliers. Its Type 3R NEMA rating ensures protection against rain, sleet, and snow, while its construction supports pad or wall mounting for flexible installation.
Specifications
- Application: Current Transformer Enclosure
- Dimensions: 36" W x 12" D x 36" H
- Material: G90 Galvanized Steel with Powder Coat Finish
- Color: ANSI 61 Gray
- NEMA Rating: Type 3R
- Mounting Type: Pad Mount or Wall Mount
- Cable Entry: No Knockouts
- Product Weight: 118 lbs
- Manufacturer: Milbank
- Manufacturer Part #: 363612-CT3R
Features
- Enclosure and cover manufactured from 16 or 14 gauge G90 galvanized steel
- Overlapping double doors with no center post for easy access
- Hinge cover mounted on galvanized lift-off hinges with stainless steel hinge pins
- Padlockable three-point draw latch handle for secure closure
- Panel mounting studs provided for optional back panels
- Drip shield top and seam-free sides, front, and back for enhanced weather protection
- ANSI 61 gray polyester powder coating over phosphatized steel for durability
