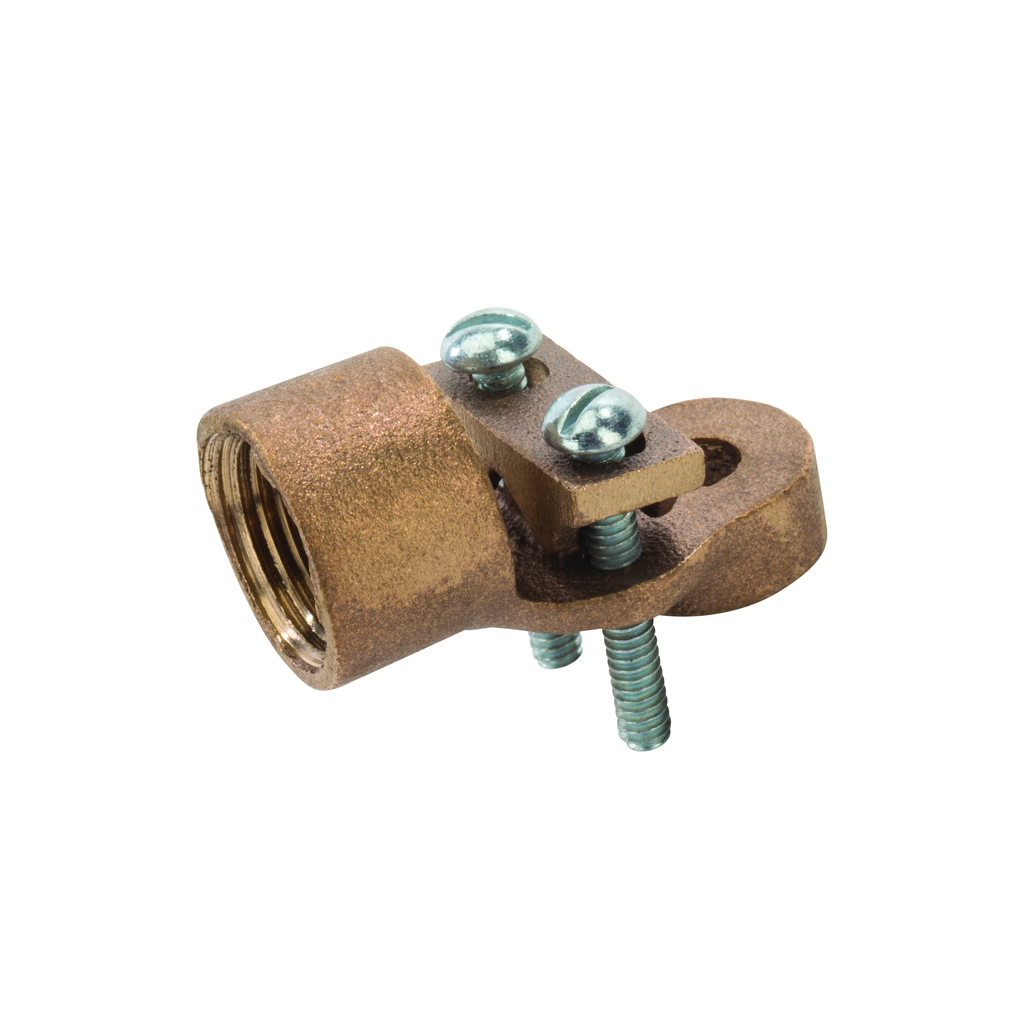

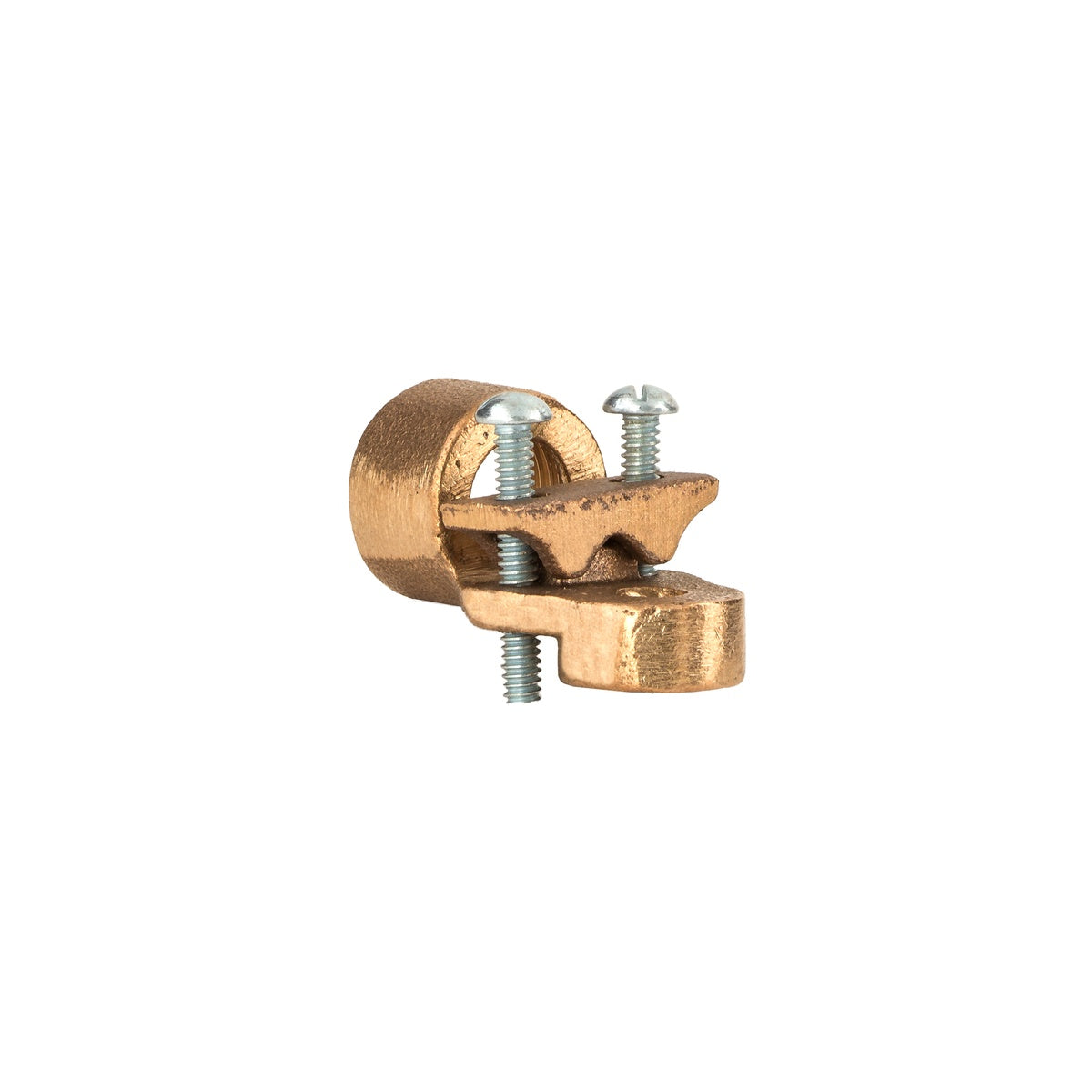

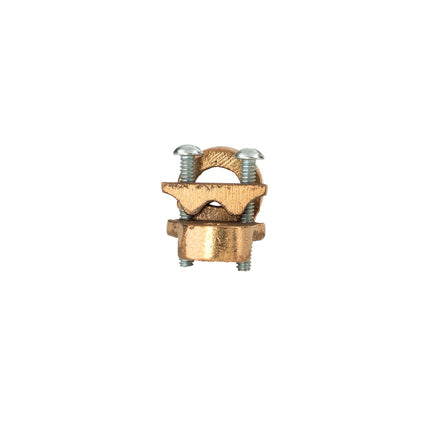

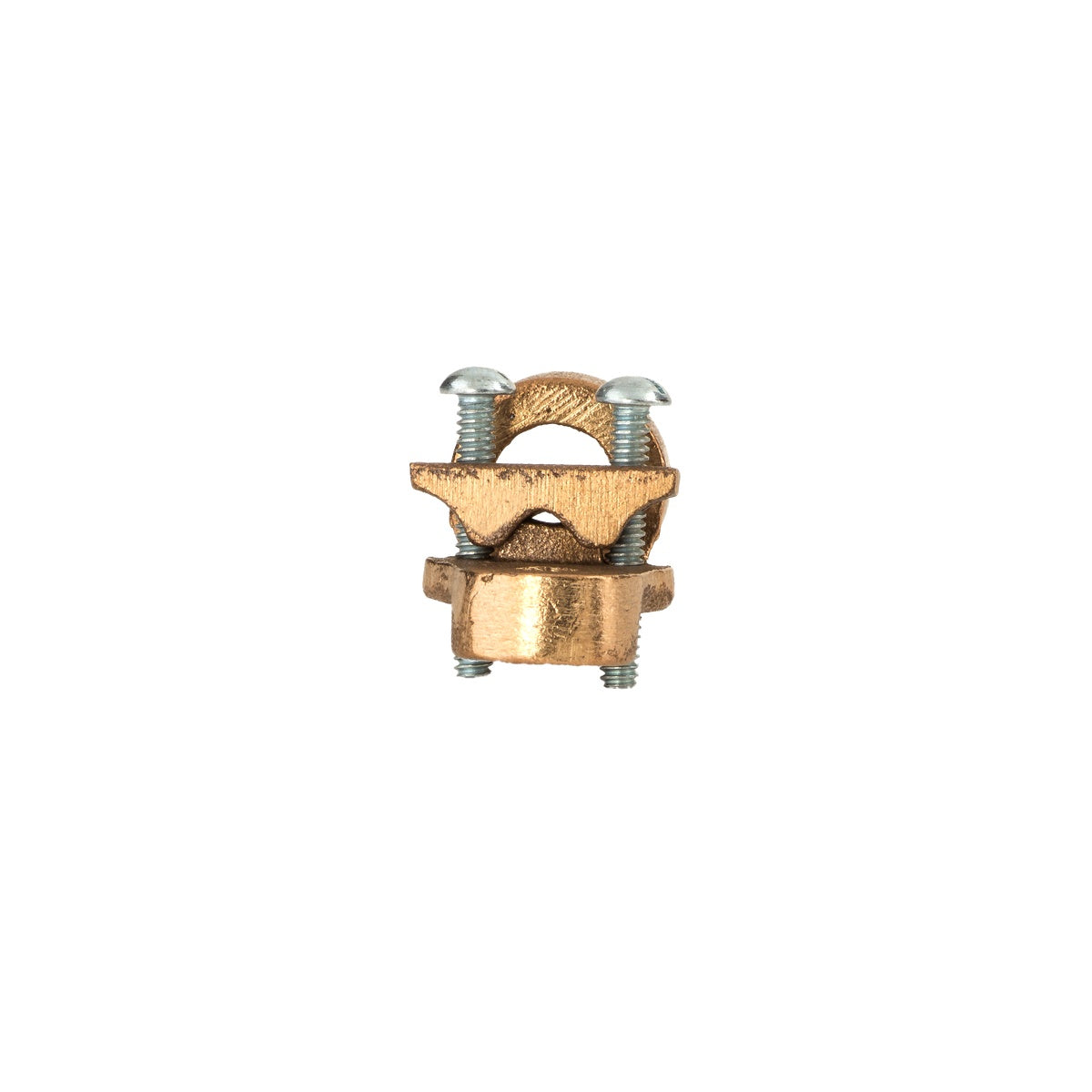

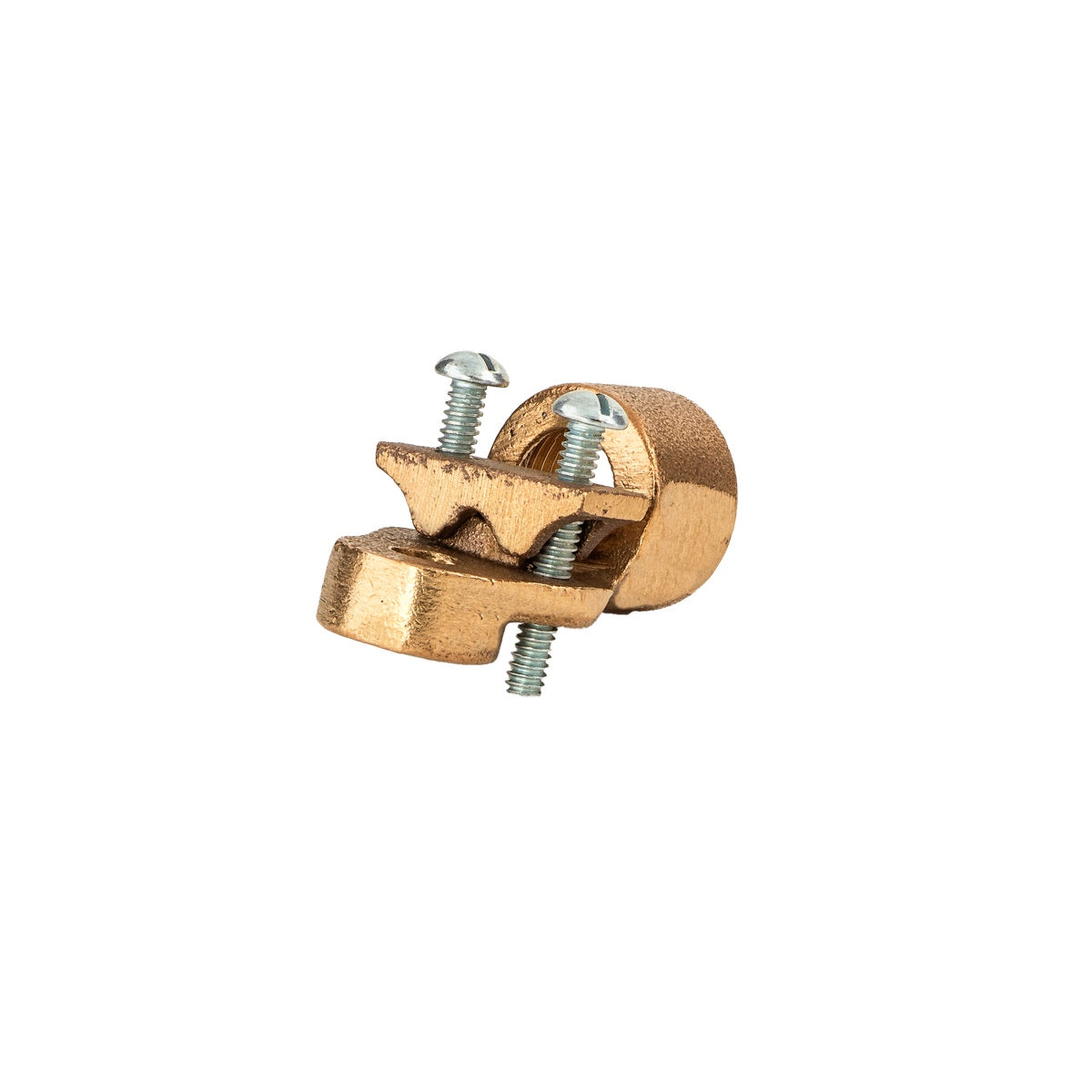

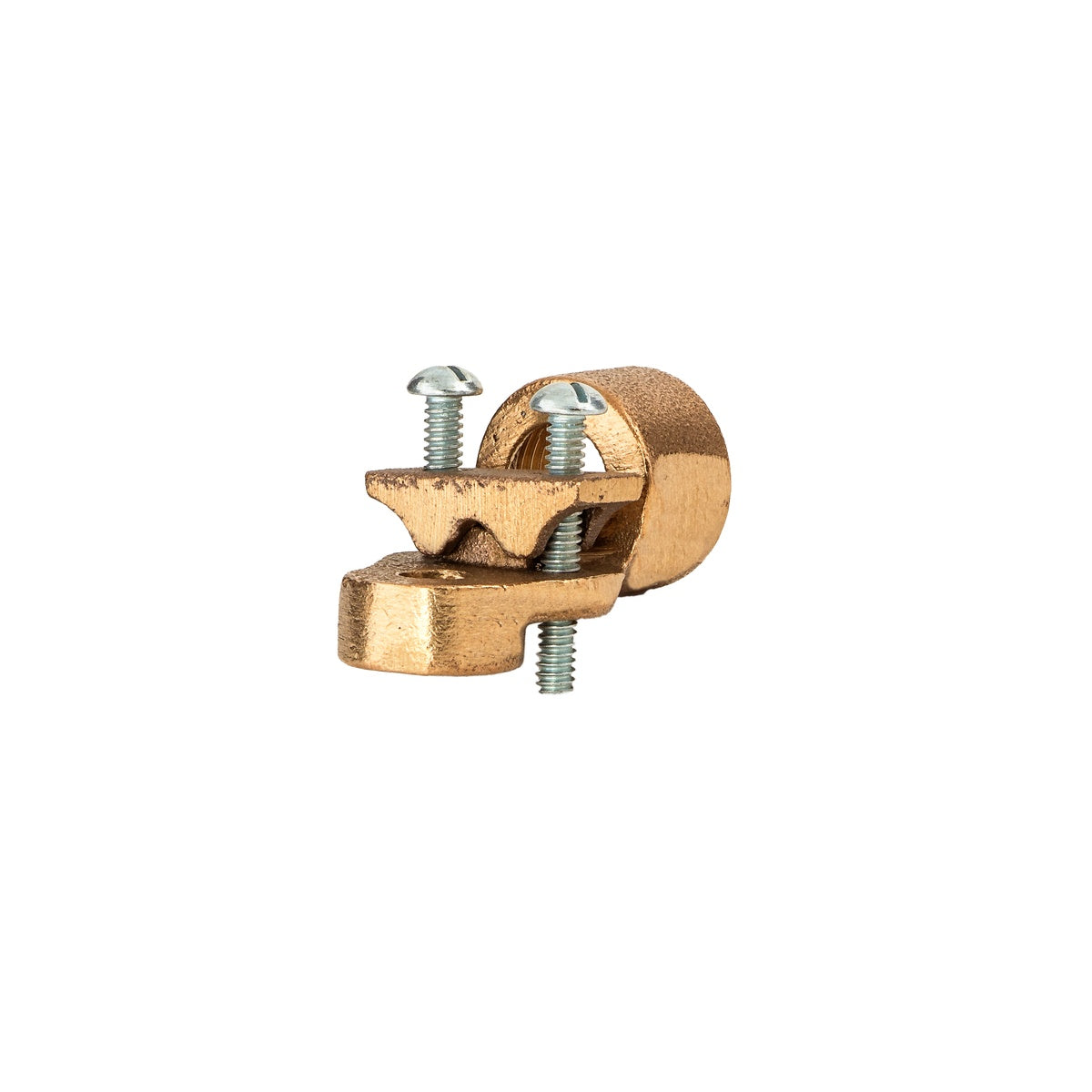

360 Degree Swing Type Conduit Hub, 1/2″, Bronze, 10 SOL to 2/0 STR
SKU: #304029
Part: #GHM-50
UPC: 662381010360
360 Degree Swing Type Conduit Hub, 1/2″, Bronze, 10 SOL to 2/0 STR
SKU: #304029
Part: #GHM-50
UPC: 662381010360
Total Price: $9.23 per each Sold in increments of 1 each
Description
360 Degree Swing Type Conduit Hub, 1/2″, Bronze, 10 SOL to 2/0 STR – Grounding Wire Connector
The 360 Degree Swing Type Conduit Hub (Model GHM-50) by NSI Industries is designed for grounding copper conductors to water pipes in indoor electrical installations. This conduit hub offers flexible alignment with a 360-degree swing feature, making it suitable for use with ground clamps that have serrated hubs. It accommodates 1/2″ conduit or wire sizes ranging from 10 SOL to 2/0 STR, providing a reliable grounding solution for electrical distributors and switchgear suppliers.
Specifications
- Manufacturer Part #: GHM-50
- Application: Grounding Wire
- Conduit Hub Size: 1/2″
- Ground Wire Range: 10 SOL to 2/0 STR
- Material: Silicon Bronze (hub), Zinc-Plated Steel (screws)
- Dimensions (L x W x H): 1.958 in x 1.114 in x 1.197 in
- Product Weight: 0.2040 lbs
- Country of Origin: India
Features
- 360-degree swing type hub allows entry from any direction for easier installation
- Threaded hub made of high-strength, highly conductive bronze for durability and conductivity
- Compatible with ground clamps featuring serrated hubs to ensure secure grounding
- Zinc-plated steel screws provide corrosion resistance and long-lasting performance
- Economical and high-quality metals suitable for a range of indoor grounding applications
