36 Crct Stked Neut C/W P1
SKU: #303420
Part: #1036MB
UPC: 662381008190
36 Crct Stked Neut C/W P1
SKU: #303420
Part: #1036MB
UPC: 662381008190
Description

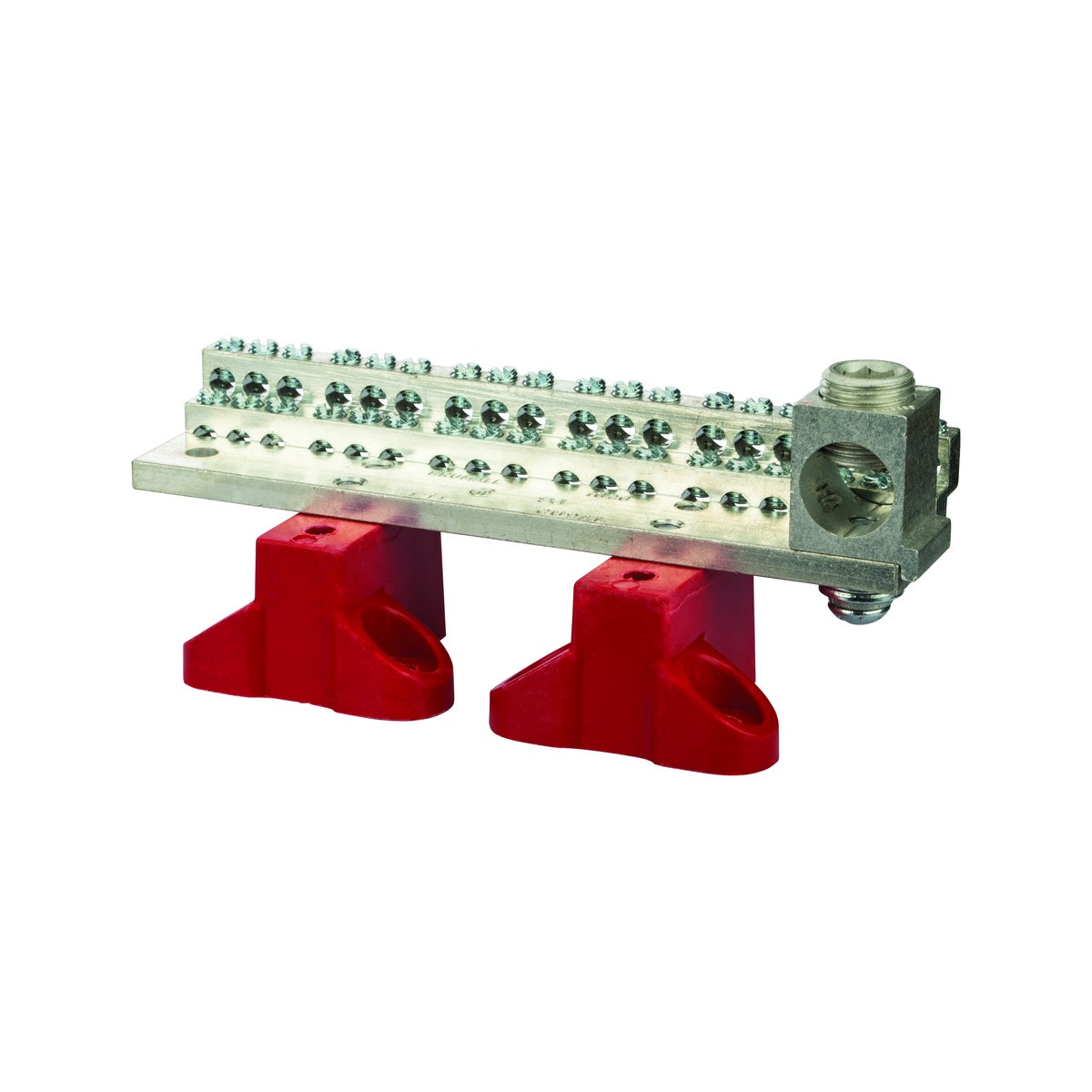

36 Crct Stked Neut C/W P1 Stacked Neutral Bar
This 36 circuit stacked neutral bar is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It supports 225A current and accommodates wire sizes from 4-14 AWG for circuits, with a 350 MCM to 6 AWG main lug. Constructed from 6061T-6 aluminum alloy, it offers durability and reliable performance for lighting solutions and wire and cable installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1036MB
- Conductor Material: Aluminum
- Conductor Size: (36) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
- Material: 6061T-6 Aluminum Alloy
- Dimensions: 6.449 in (Length) x 2.75 in (Height) x 2.25 in (Width)
- Product Weight: 0.41 lb
- Application: Wire Termination
- Made in USA: Yes
- Country of Origin: United States
- Order Minimum: 1
Features
- Stacked neutral assembly for compact design and superior mechanical performance
- Wire holes stacked to minimize width
- One-piece construction enhances durability
- Includes a 350 MCM main lug
- High strength, glass-filled polyester mounting base for isolated mounting
- Supports up to 36 circuits with 4-14 AWG wire sizes
