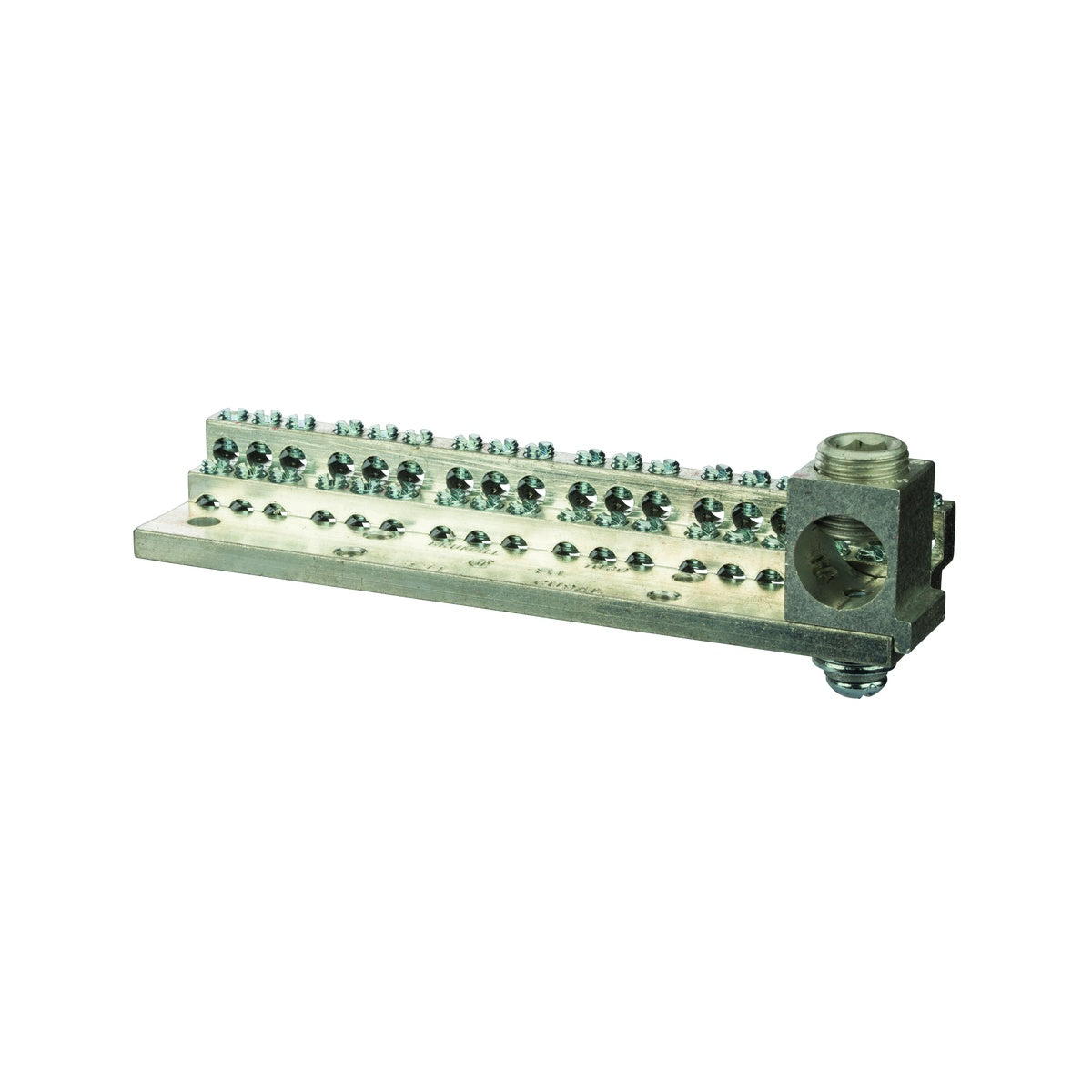

36 Crct Stacked Neut w/Mount – Stacked Neutral Bar for Electrical Distribution

The 36 Crct Stacked Neut w/Mount is a 225A stacked neutral bar designed for wire termination applications in electrical distribution systems. This component is suitable for use by electrical distributors and switchgear suppliers requiring compact and reliable neutral bar solutions for lighting and power wiring. It accommodates (36) 4-14 AWG circuits with a main lug capacity of 350 MCM to 6 AWG, providing a robust connection point for neutral conductors in panelboards and switchgear assemblies.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1036M
• Application: Wire Termination
• Conductor Size: (36) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
• Material: 6061T-6 Aluminum Alloy
• Conductor Material: Aluminum
• Dimensions: 6.449 in (Length) x 1.375 in (Height) x 1.5 in (Width)
• Product Weight: 0.41 lbs
• Electrical Rating: 225A, 600 VAC
• Country of Origin: United States
• Made in USA: Yes

Features

• Compact stacked design minimizes width for space-efficient installations
• One-piece construction for superior mechanical performance and durability
• High strength 6061T-6 aluminum alloy for corrosion resistance and electrical conductivity
• Includes a 350 MCM main lug for heavy gauge conductor connections
• Mounting base designed for secure installation in electrical panels

Downloads & Links

• Spec Sheet
