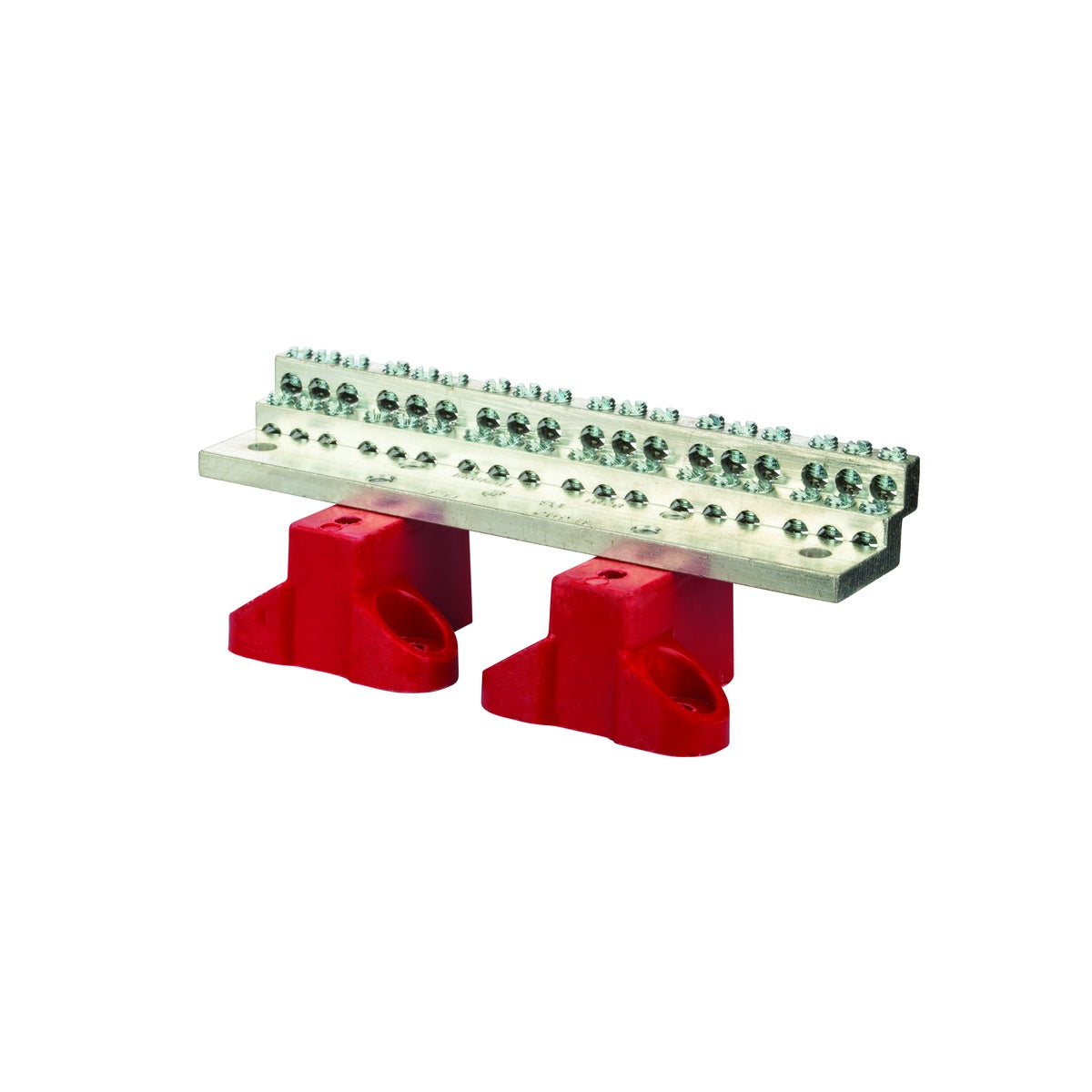

36 Crct Stacked Neut W/Base – Stacked Neutral Bar

This 36 Circuit Stacked Neutral Bar with Mounting Base is designed for wire termination applications in electrical distribution systems. Manufactured by NSI Industries, it offers a compact and efficient solution for managing neutral conductors in switchgear assemblies and lighting solutions. The product is suitable for use with wire and cable sizes ranging from 4 to 14 AWG, supporting up to 225A current capacity.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1036B
• Application: Wire Termination
• Conductor Size: (36) 4-14 AWG Circuits
• Conductor Material: Aluminum
• Material: 6061T-6 Aluminum Alloy
• Dimensions (L x W x H): 6.324 in x 2.25 in x 2.25 in
• Product Weight: 0.41 lbs
• Made in USA: Yes
• Country of Origin: United States

Features

• Compact stacked design minimizes width for space-efficient installation
• One-piece construction ensures superior mechanical performance
• High strength 6061T-6 aluminum alloy construction
• Includes a high-strength, glass-filled polyester mounting base for isolated mounting
• Supports up to 225A current rating

Downloads & Links

• Spec Sheet
