36 Crct Stacked Neut
SKU: #303414
Part: #1036
UPC: 662381008169
36 Crct Stacked Neut
SKU: #303414
Part: #1036
UPC: 662381008169
Next day delivery
Description

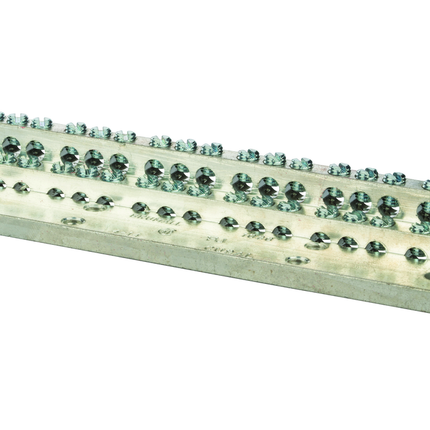

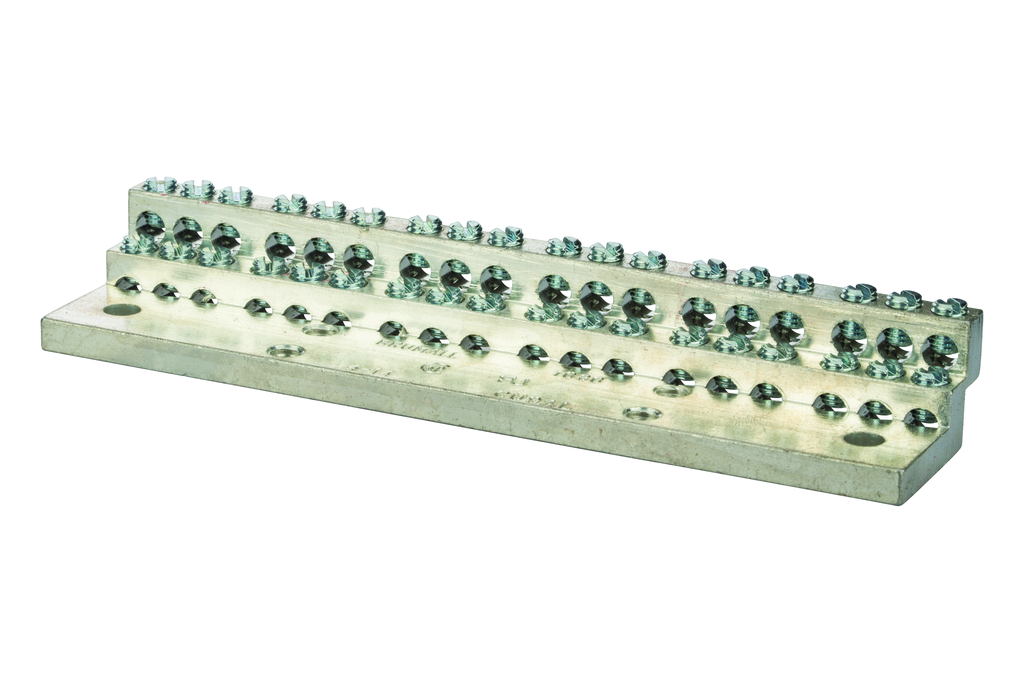

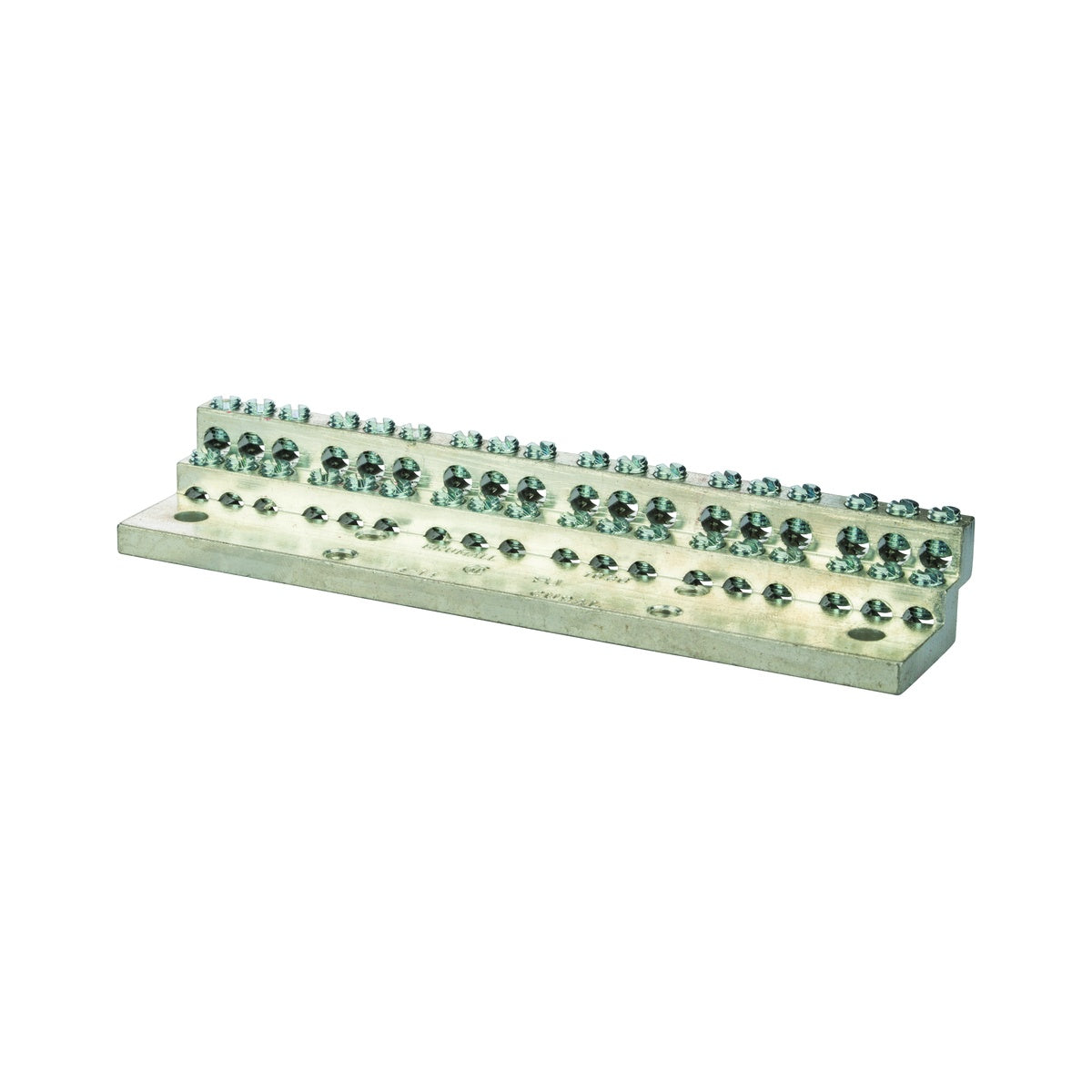

36 Crct Stacked Neut – Stacked Neutral Bar
The 36 Circuit Stacked Neutral Bar by NSI Industries is designed for wire termination applications in electrical distribution and switchgear assemblies. This 225A neutral bar supports 4-14 AWG conductor sizes across 36 circuits, providing a compact and efficient solution for neutral wiring in lighting solutions and wire and cable systems.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1036
- Conductor Size: (36) 4-14 AWG Circuits
- Conductor Material: Aluminum
- Material: 6061T-6 Aluminum Alloy
- Dimensions: 6.324 in (Length) x 1.5 in (Width) x 0.875 in (Height)
- Product Weight: 0.3560 lbs
- Order Minimum: 1
- Made in USA: Yes
- Country of Origin: United States
Features
- Stacked neutral assembly offers a compact design minimizing width by stacking wire holes
- One-piece construction for superior mechanical performance
- High strength 6061T-6 aluminum alloy construction
- Supports up to 225A current rating
