350-4/0 Main 350-6 Tap
SKU: #304093
Part: #GP-350WC
UPC: 662381003058
350-4/0 Main 350-6 Tap
SKU: #304093
Part: #GP-350WC
UPC: 662381003058
Description

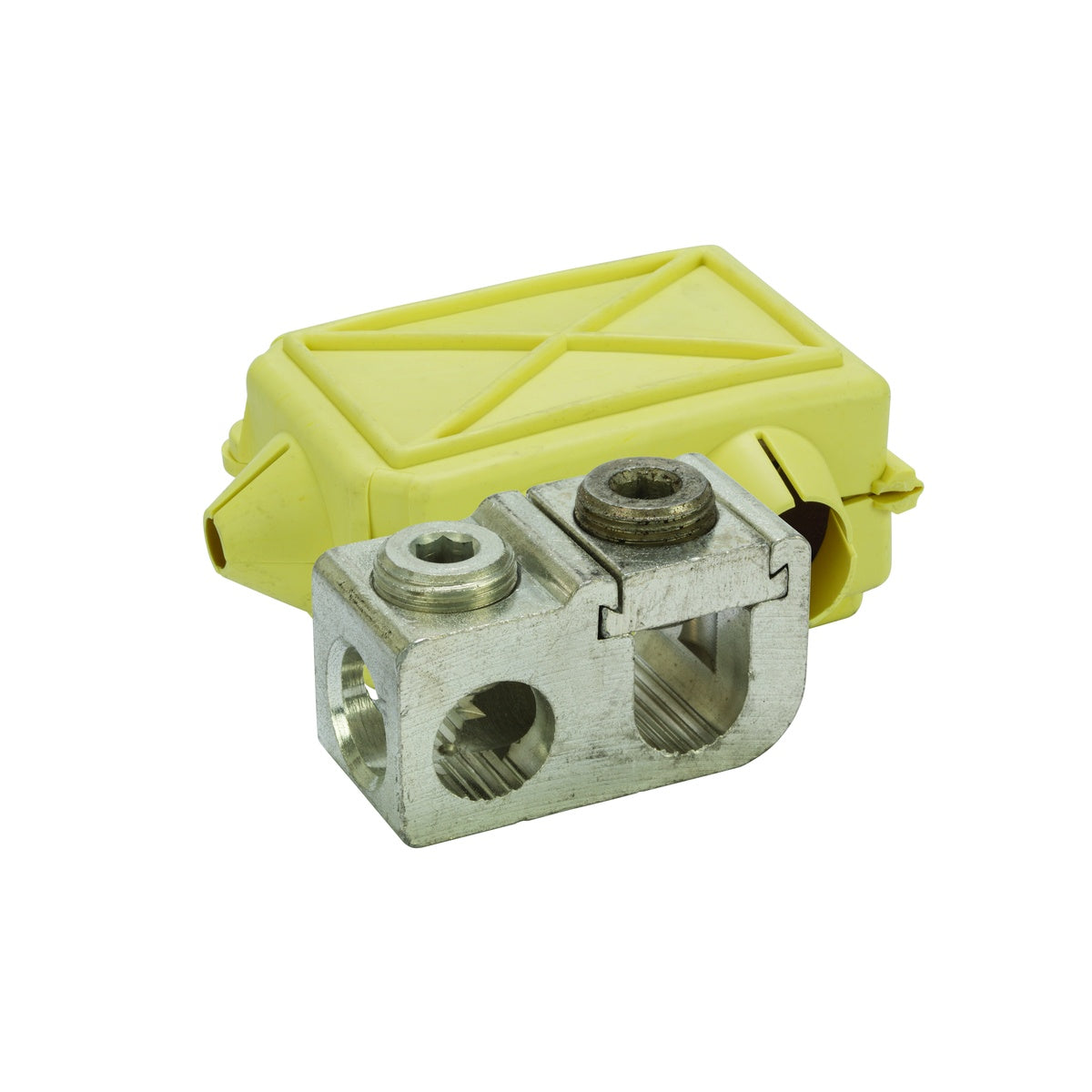

350-4/0 Main 350-6 Tap Parallel "T" Tap Connector
This 350 MCM Parallel "T" Tap Connector with cover is designed for electrical distributors and switchgear suppliers requiring reliable wire and cable tapping solutions. It allows tapping off a main conductor without cutting, using a lay-in feature for easy installation. The perpendicular tap supports both parallel and "T" tap configurations, with a flexible, secure snap cover that eliminates the need for taping. This connector is suitable for lighting solutions and other electrical applications rated up to 600V and 90°C.
Specifications
- Material: Aluminum
- Finish: Tin-Plated
- Color: Yellow
- Dimensions (L x W x H): 3.76 in x 3.29 in x 1.76 in
- Maximum Temperature: 90 degrees Celsius
- Voltage Rating: 600V
- Product Weight: 0.63 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: GP-350WC
- Country of Origin: United States
- Made in USA: Yes
Features
- Allows tapping off main conductor without cutting due to lay-in feature
- Perpendicular tap for parallel or "T" tap wiring configuration
- Flexible cover accommodates parallel or "T" tap wire entry
- Secure snap cover eliminates need for taping
- Electro-tin plated for low contact resistance
- Rated for 600V and 90°C temperature operation
