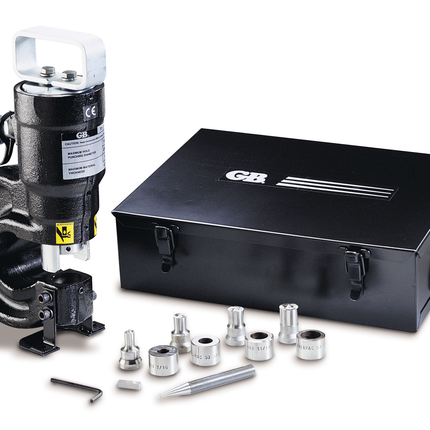

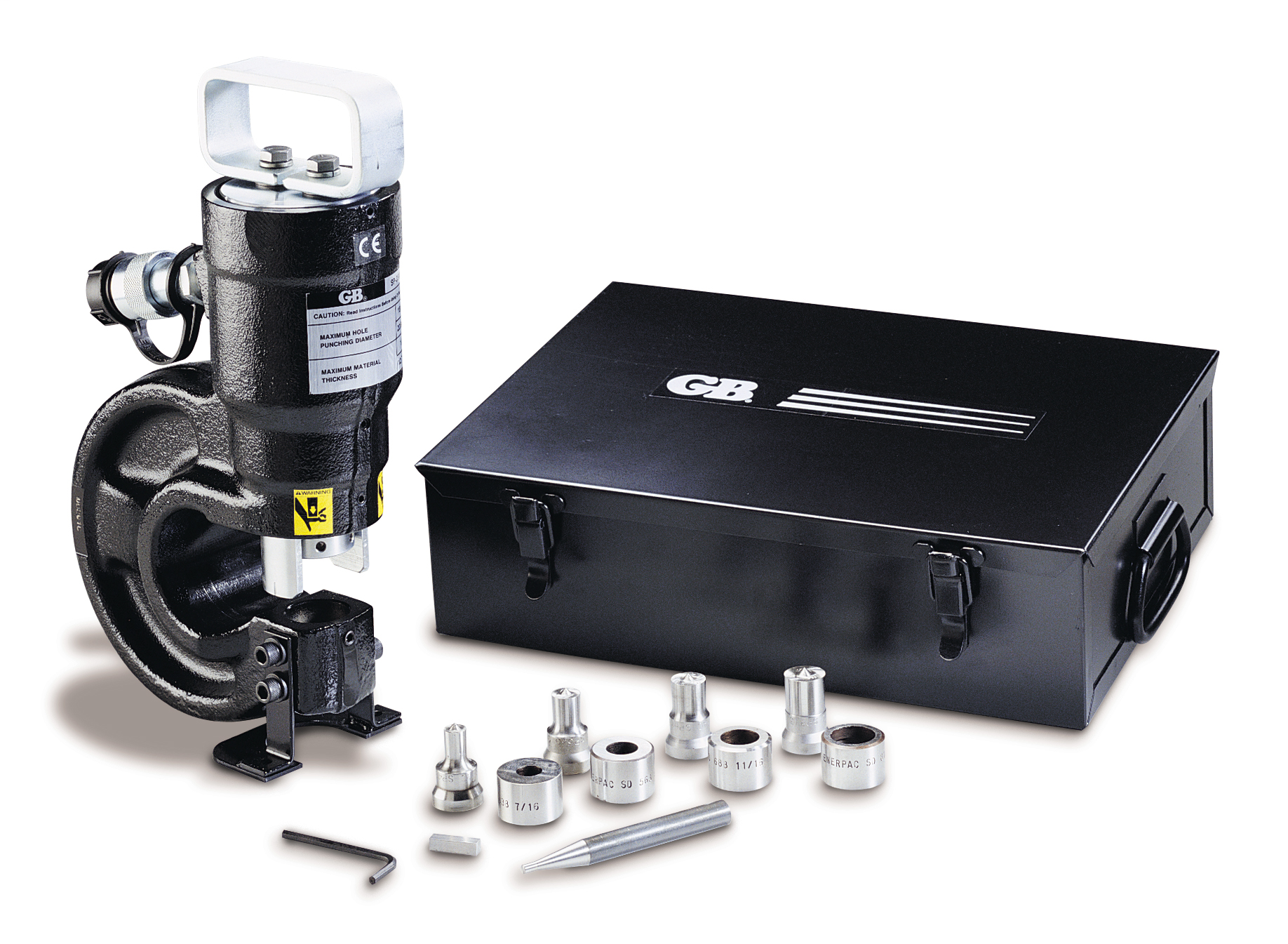

35 Ton Steel Punch Set Complete - Hydraulic Punching Tool

The Gardner Bender 35 Ton Steel Punch Set Complete (Model SP3500) is a hydraulic punching tool designed for electrical distributors and switchgear suppliers requiring precise, burr-free holes in mild steel plates, beams, railings, bus bars, or angle iron up to 1/2" thick. This tool is suitable for both portable and fixed applications, making it ideal for wire and cable installations and various lighting solutions where clean conduit and bolt holes are necessary.

Specifications

• Manufacturer: Gardner Bender
• Manufacturer Part #: SP3500
• Product Weight: 44.9 lbs
• Punch Capacity: Up to 1/2" thick mild steel
• Throat Depth: 3"
• Height: 13 3/4"
• Includes Four Punch and Die Sets for Round Holes: 7/16" - 13/16" diameter
• UPC: 032076897857

Features

• Hydraulic operation delivers 35 tons of force for clean, burr-free holes
• Includes die changeover tool set for quick punch and die changes
• Holding plates grip workpiece to prevent binding and free operator‚Äôs hands
• Portable design with easy-carry handle or mountable for production setups
• Compatible with recommended hydraulic pumps and hoses (HC913 6' hose, HC927 10' hose, PH80 manual pump)
• Complete set includes installation kit and multiple punch & die sizes for versatile electrical and conduit applications
