340-6N5, Vibrating Bell - Electrical Signaling Solution

The Edwards 340-6N5 vibrating bell is designed to produce a long, continuous ringing sound for timing, scheduling, paging, and general alarm applications. As an electrical signaling device, it operates at 120V AC and is suitable for installation by electrical distributors and switchgear suppliers requiring reliable audible alert solutions. This model is specifically engineered to mount directly on an electrical box, making it adaptable for various wiring and cable setups in industrial and commercial environments.

Specifications

• Manufacturer Part #: 340-6N5
• Operating Voltage: 120V AC
• Current: 0.07 amperes
• Gong Size: 6" (152 mm)
• Sound Level: 102 dB at 1 meter / 92 dB at 10 feet
• Housing Material: Corrosion Resistant Heat Flowed Epoxy Coated Die-Cast
• Mounting Type: Electrical Box
• Product Weight: 3.7 lb

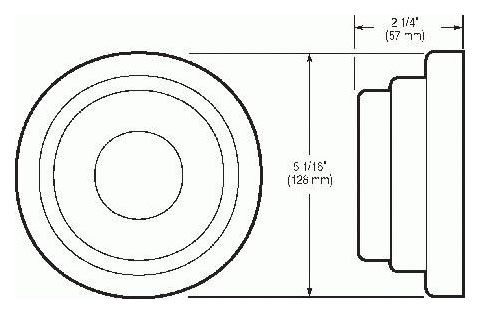

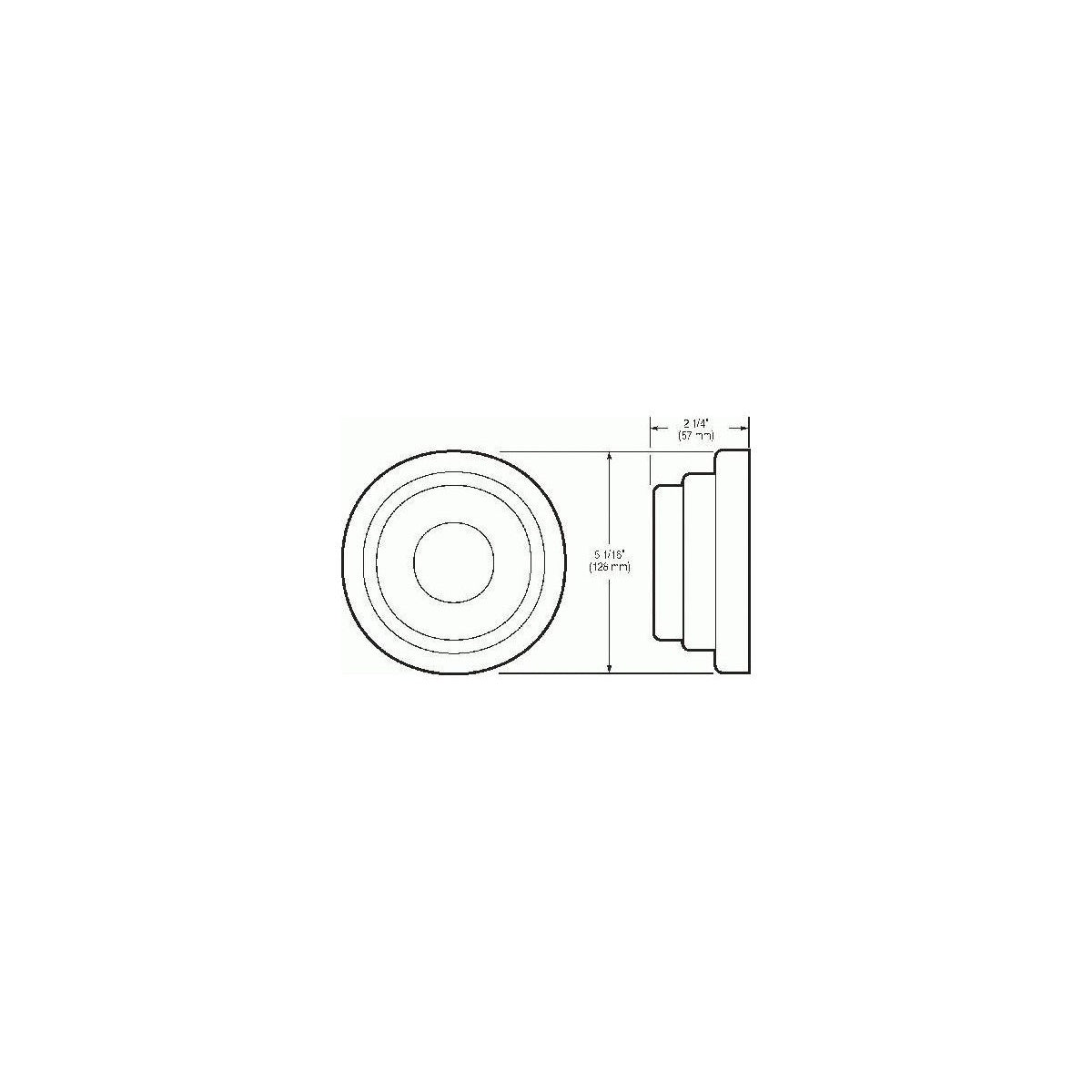

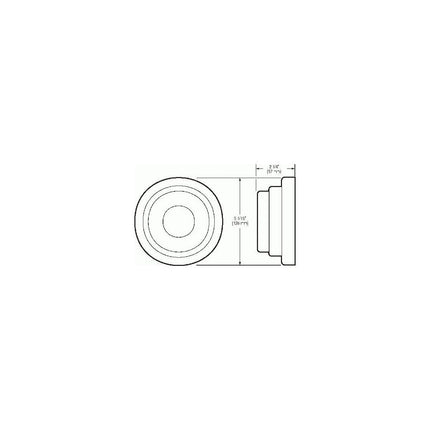

• Dimensions: Diameter 5 1/8" (130 mm), Depth 2 1/4" (57 mm)

Features

• Produces a long continuous ringing sound with rapid striker action as long as current is applied
• Universal Adaptaplate mounts directly on surface or fits any single-gang box, 3-1/4" (83 mm), 3-1/2" (89 mm), or 4" (102 mm) octagon box
• 6" bells mount on 4" (102 mm) square boxes
• Corrosion resistant die-cast housing with heat-flowed epoxy finish for durability
• Suitable for moderate noise level areas such as general factory environments
• FM approved for AC applications
