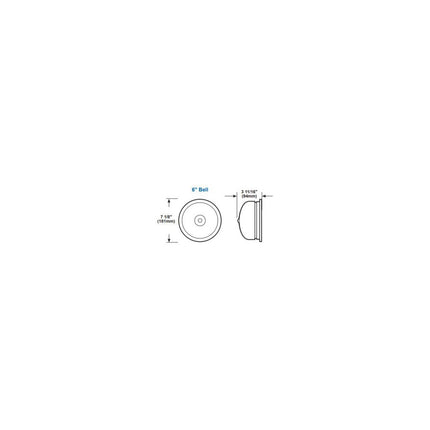

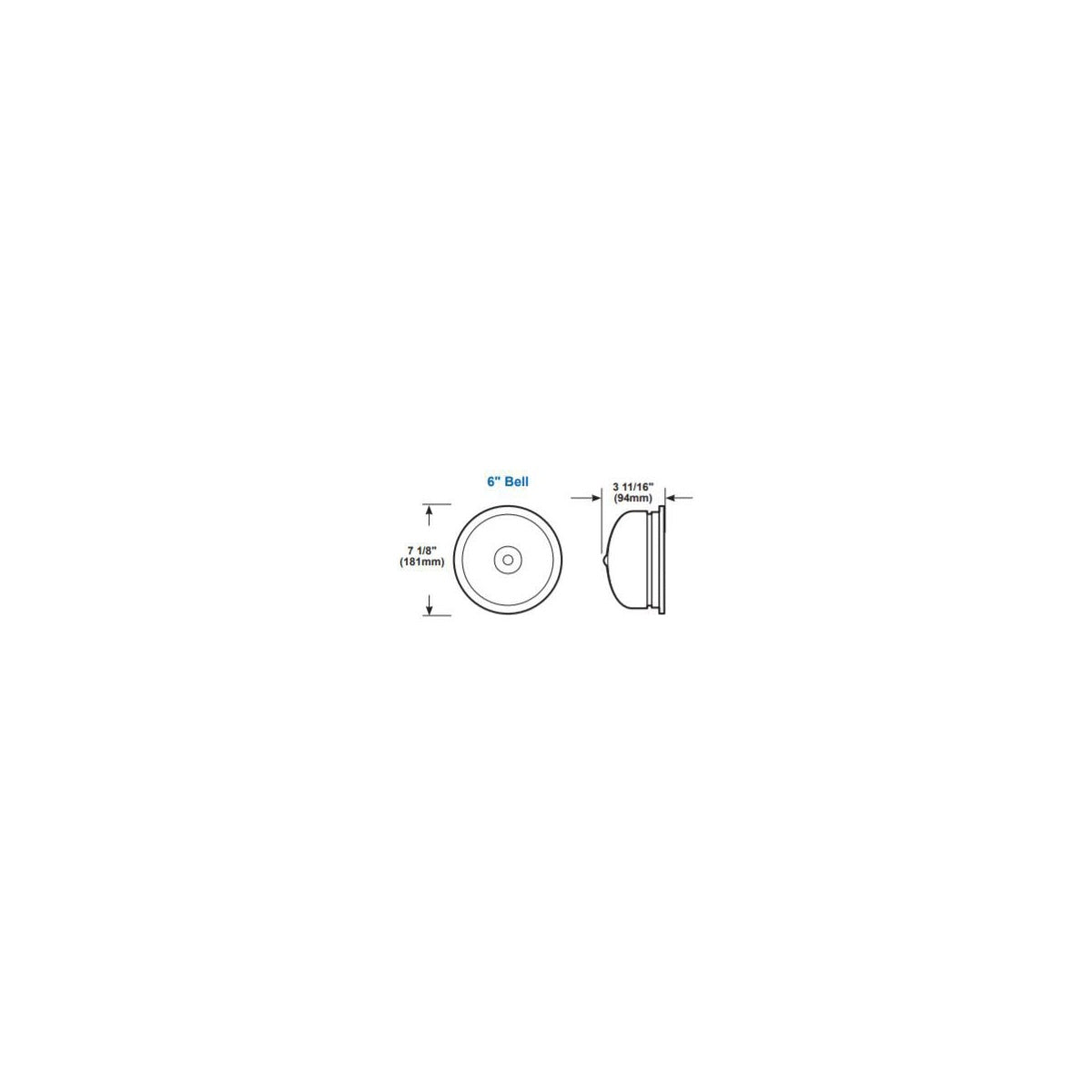

340-6G5 Vibrating Bell – Electrical Signaling Solution

The Edwards 340-6G5 Vibrating Bell is designed for reliable audible signaling in industrial and commercial electrical systems. It produces a long, continuous ringing sound suitable for timing, scheduling, paging, and general alarm applications. This model mounts directly on a 1-gang electrical box, making it compatible with standard electrical installations. It is an ideal component for electrical distributors and switchgear suppliers looking to provide effective signaling solutions.

Specifications

• Manufacturer: Edwards Signaling
• Manufacturer Part #: 340-6G5
• Current: 0.35 amperes
• Mounting Type: 1-Gang Box
• Housing Material: Corrosion Resistant Heat Flowed Epoxy Coated Die-Cast
• Product Weight: 3.9 lb

Features

• Produces long, continuous ringing sound via vibrating striker
• Mounts directly on surface or 1-gang electrical box
• Corrosion resistant die-cast housing with epoxy finish
• Self-compensating solenoid plunger for consistent operation
• FM approved for AC bells

Downloads & Links

• Installation/Operator
• Catalog
