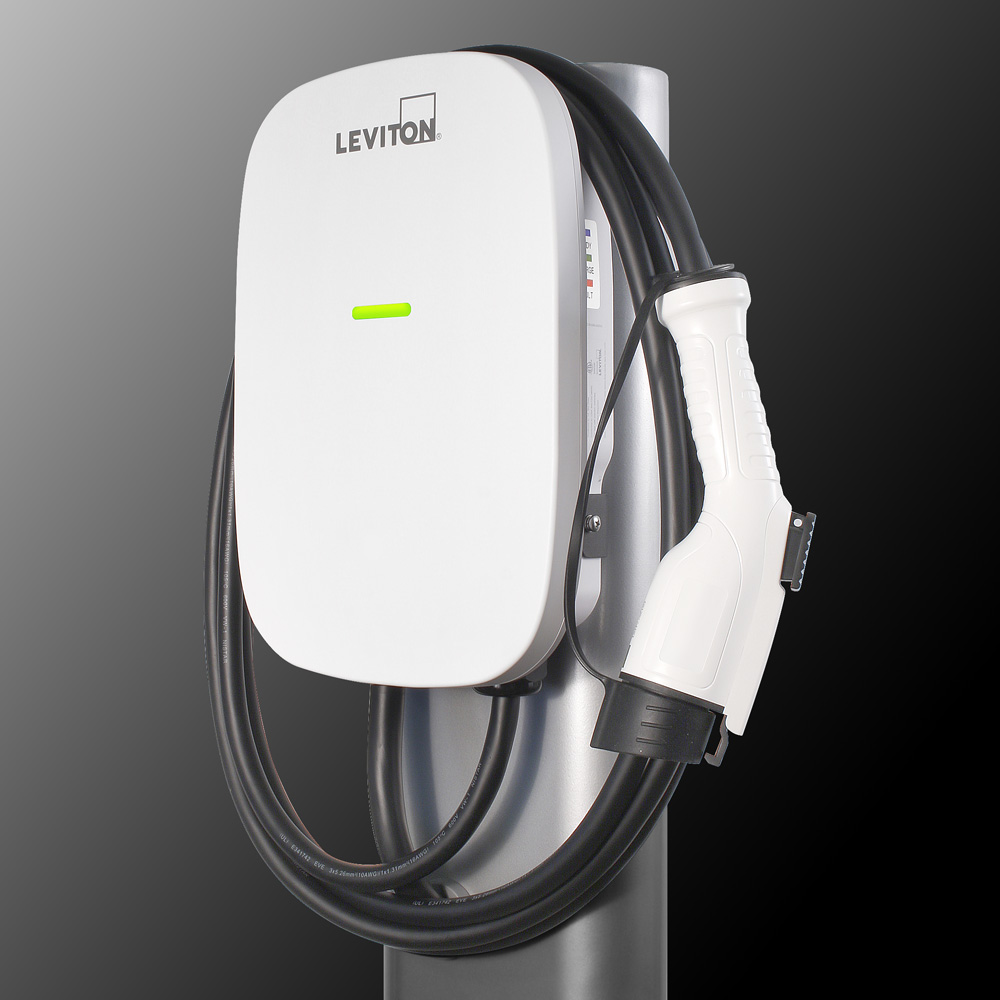

32 Amp Level 2 Electric Vehicle Charging Station - EV Series

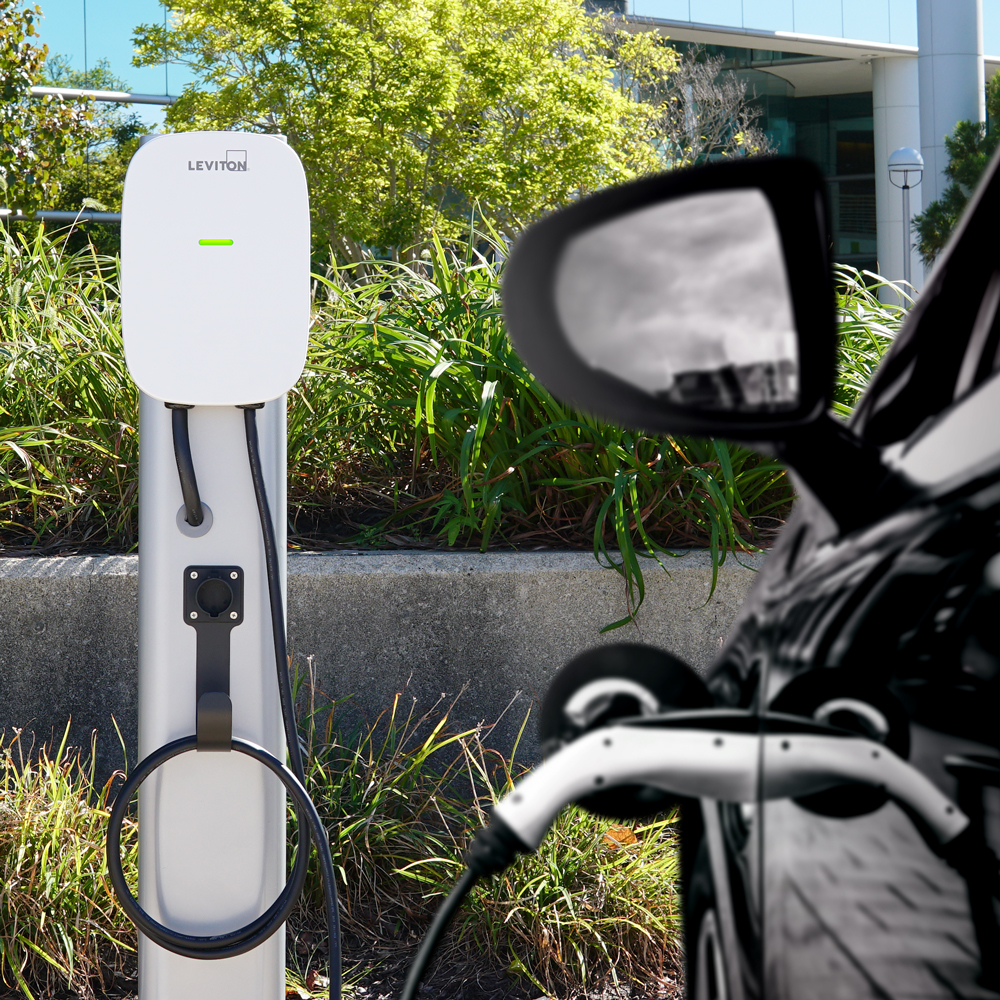

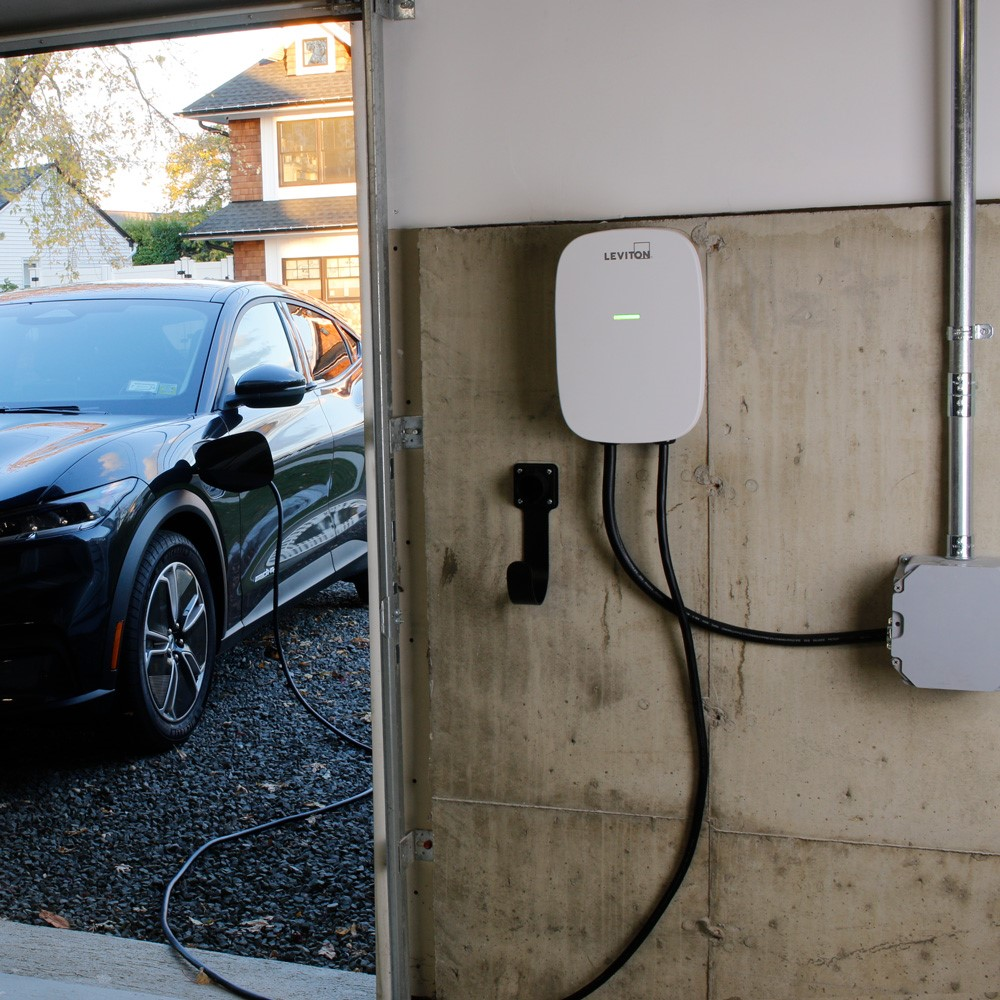

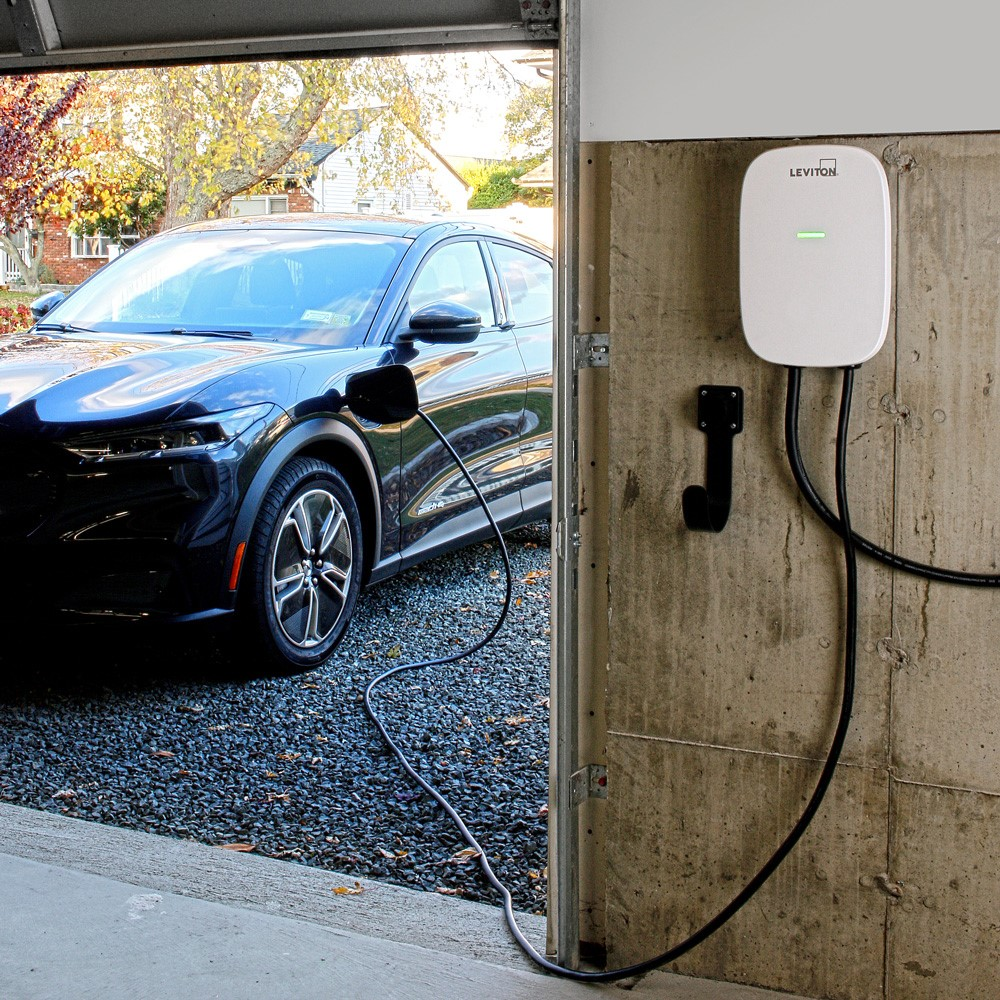

The Leviton 32 Amp Level 2 Electric Vehicle Charging Station from the EV Series is designed for fast and secure charging of any SAE J1772‚Ñ¢ compatible electric vehicle, suitable for residential, commercial, fleet, and public applications. This hardwired charger operates at 208/240 VAC with a 7.6 kW output and features an 18-foot cable with the industry-standard J1772 charge connector. It is ideal for electrical distributors and lighting solutions providers offering wire and cable, switchgear, and EV charging infrastructure.

Specifications

• Amperage: 32 amperes
• Voltage: 208/240 VAC
• Output Power: 7.6 kW

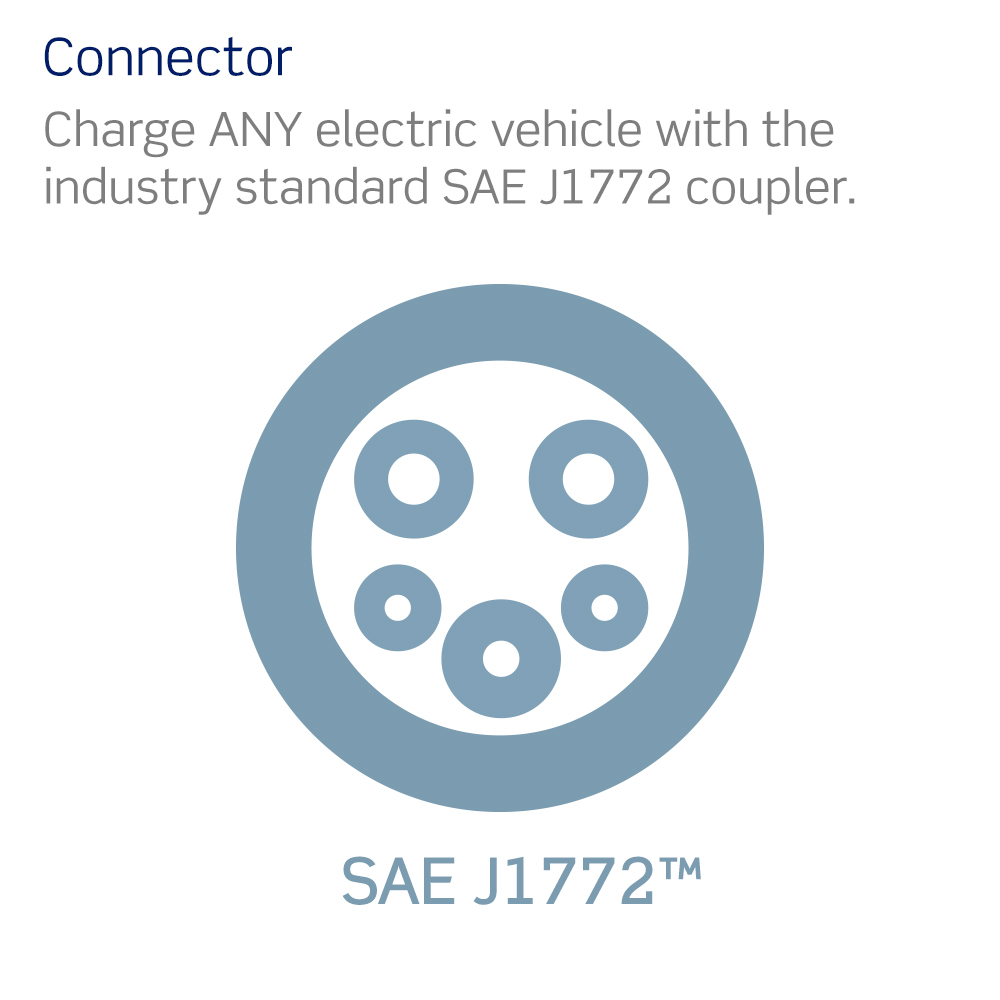

• Charge Connector: SAE J1772
• Cable Length: 18 ft.
• Operating Temperature: -30 ¬∞C to 50 ¬∞C (-22 ¬∞F to 122 ¬∞F)
• Enclosure Rating: NEMA Type 3R for indoor/outdoor use
• Product Weight: 12.79 lbs
• Manufacturer: Leviton
• Manufacturer Part Number: EV320
• Country of Origin: China
• Certification: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280
• Access Control: Optional RFID card access control
• Warranty: 2-Year Limited

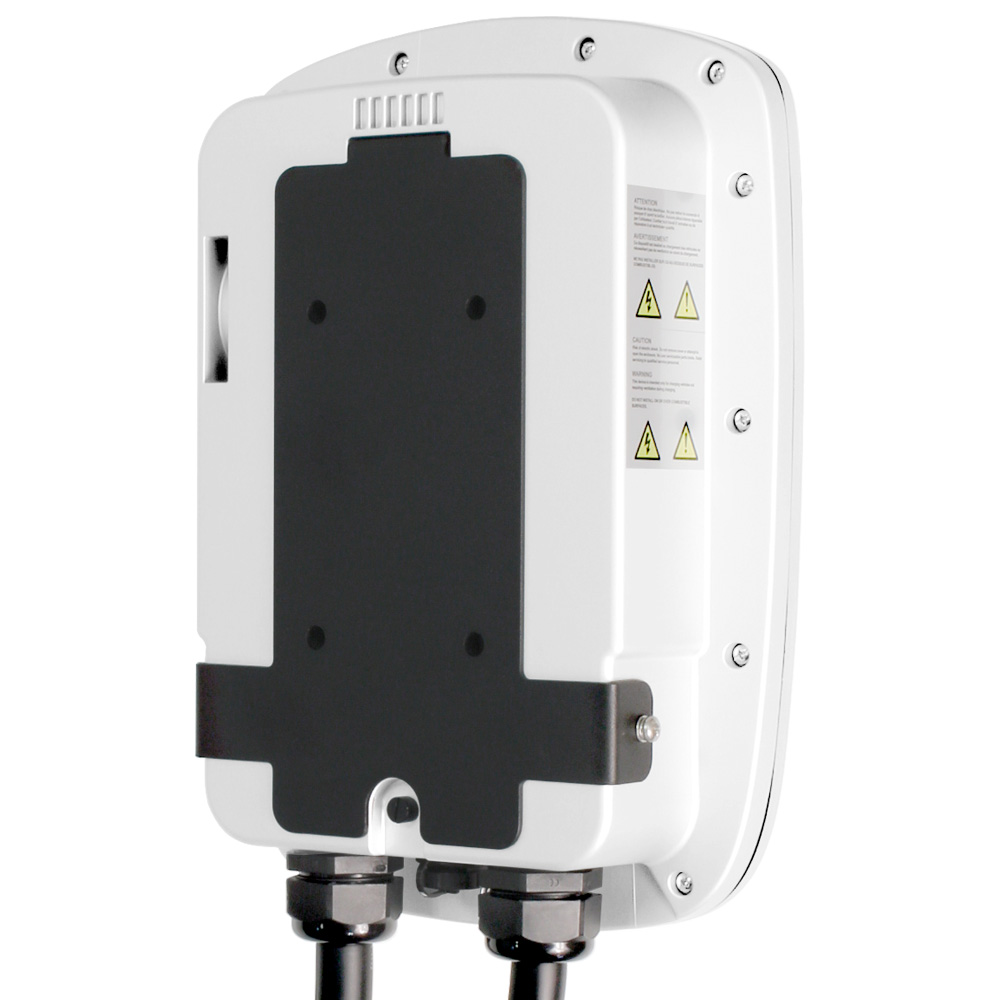

• Installation: Hardwired only, includes mounting bracket and pre-attached input cable

Features

• Compatible with any SAE J1772‚Ñ¢ electric vehicle, including Tesla with adapter

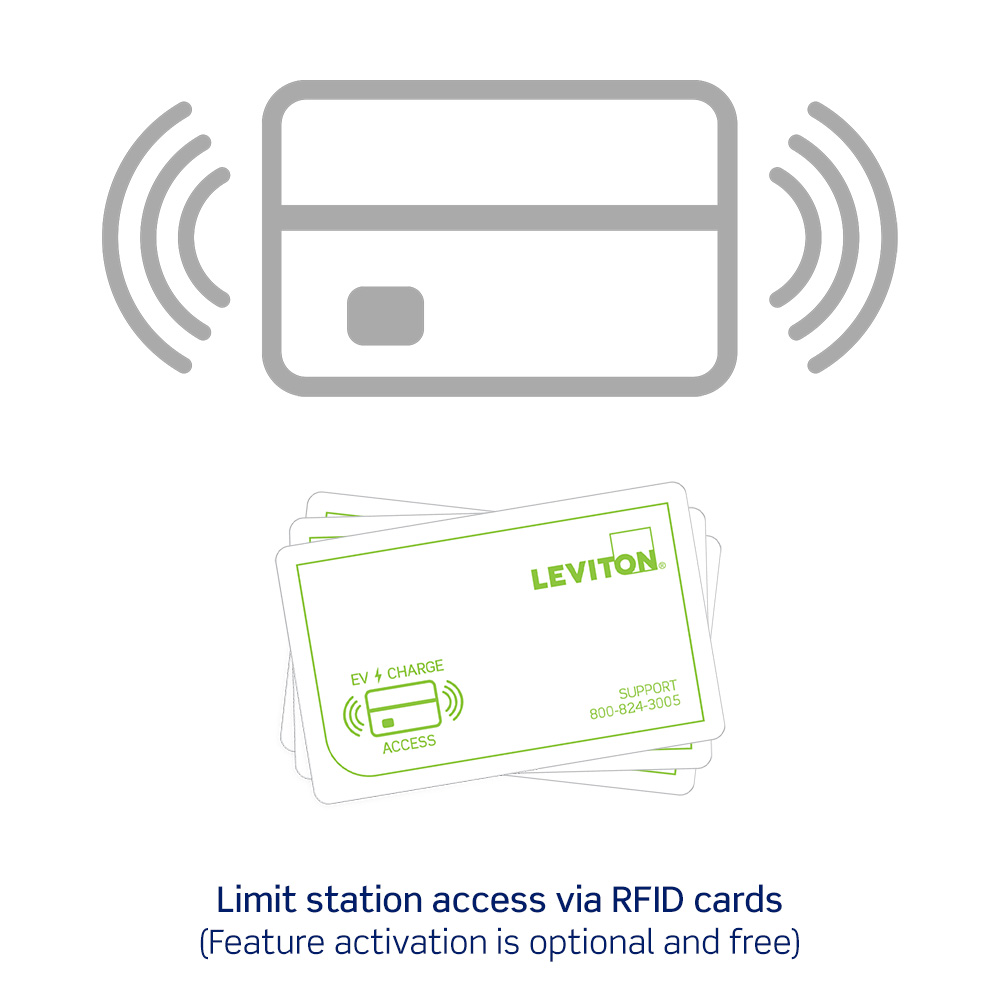

• Optional access control via RFID cards for secure station access

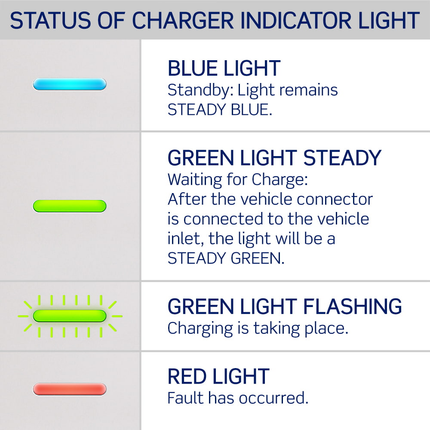

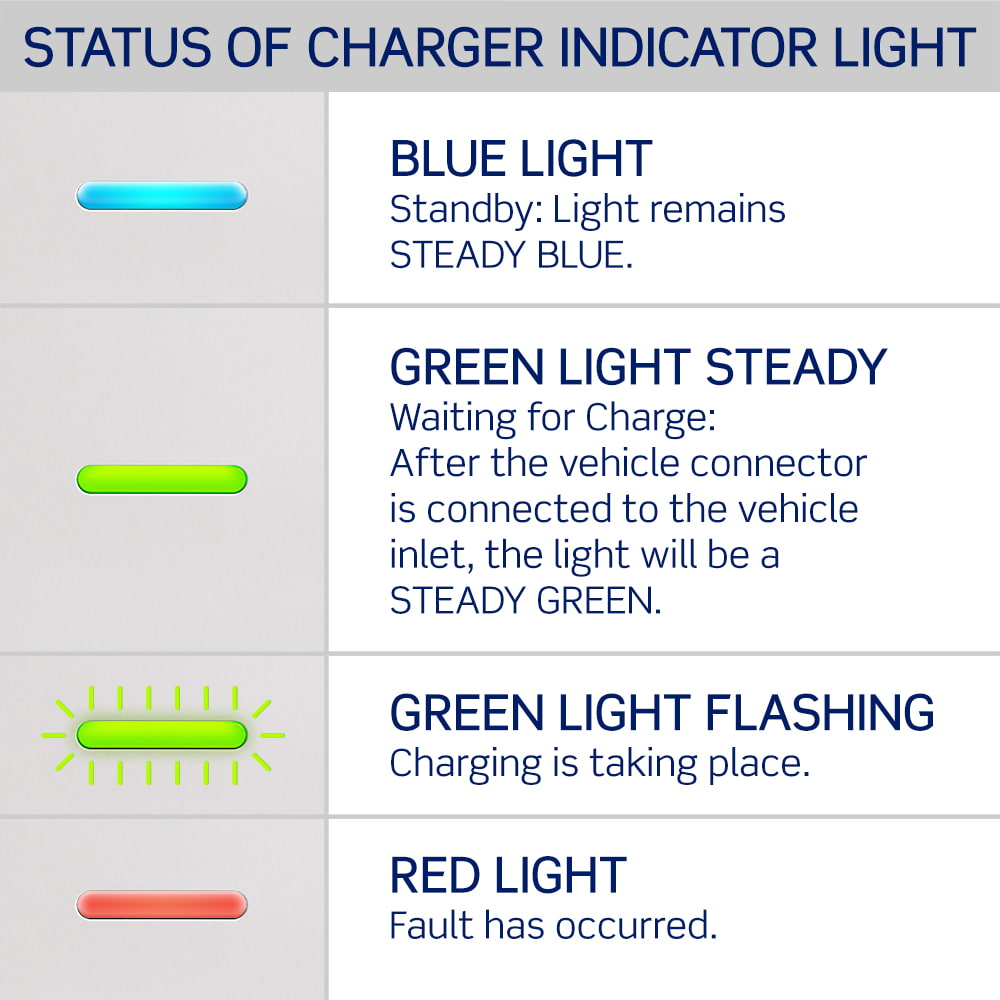

• LED status indicator lights for charger state: steady blue (standby), steady green (waiting for charge), flashing green (charging), and red (fault)

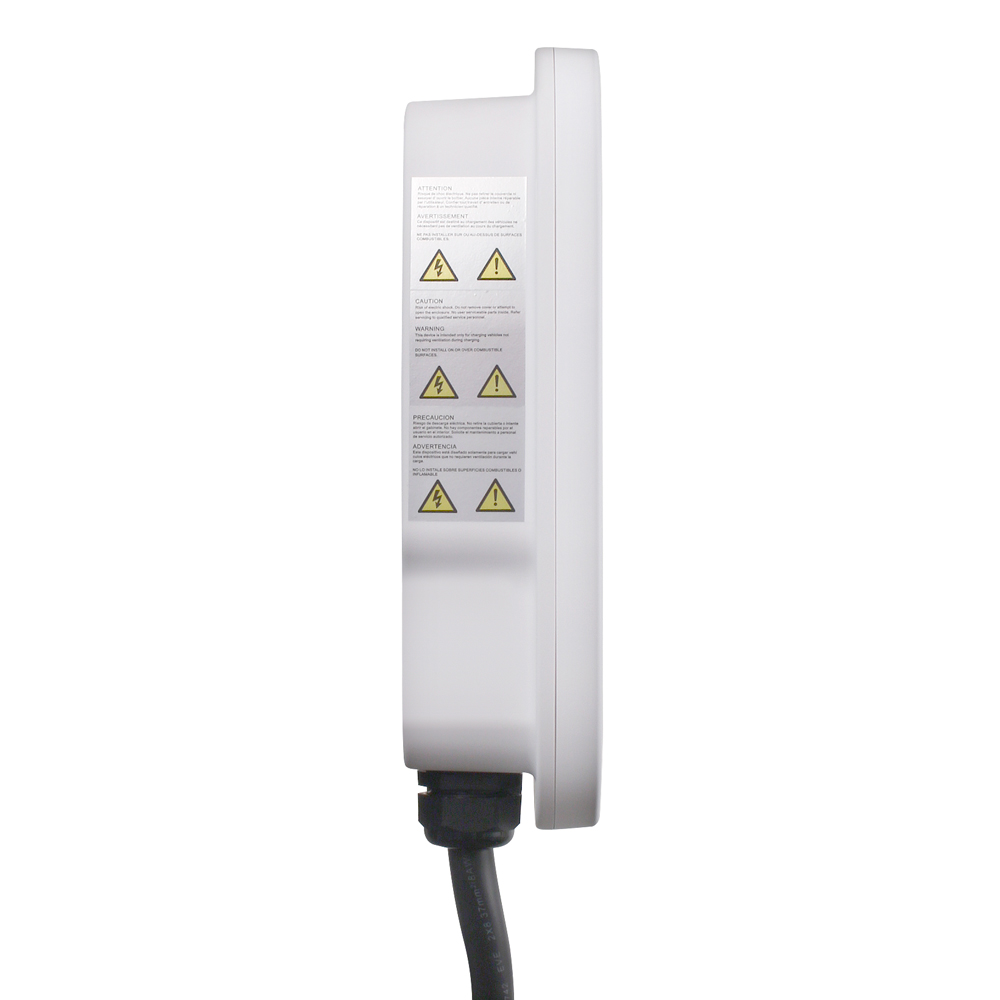

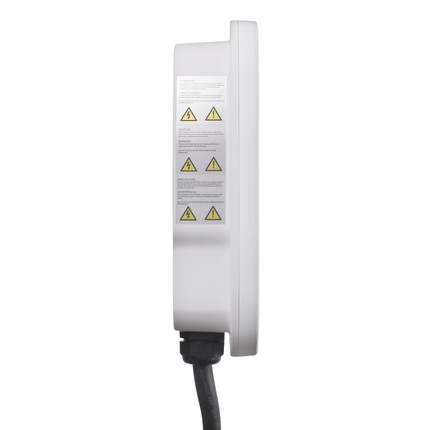

• Thermoplastic, water-resistant enclosure suitable for indoor and outdoor environments
• Pre-attached 18-foot cable and mounting hardware for easy installation

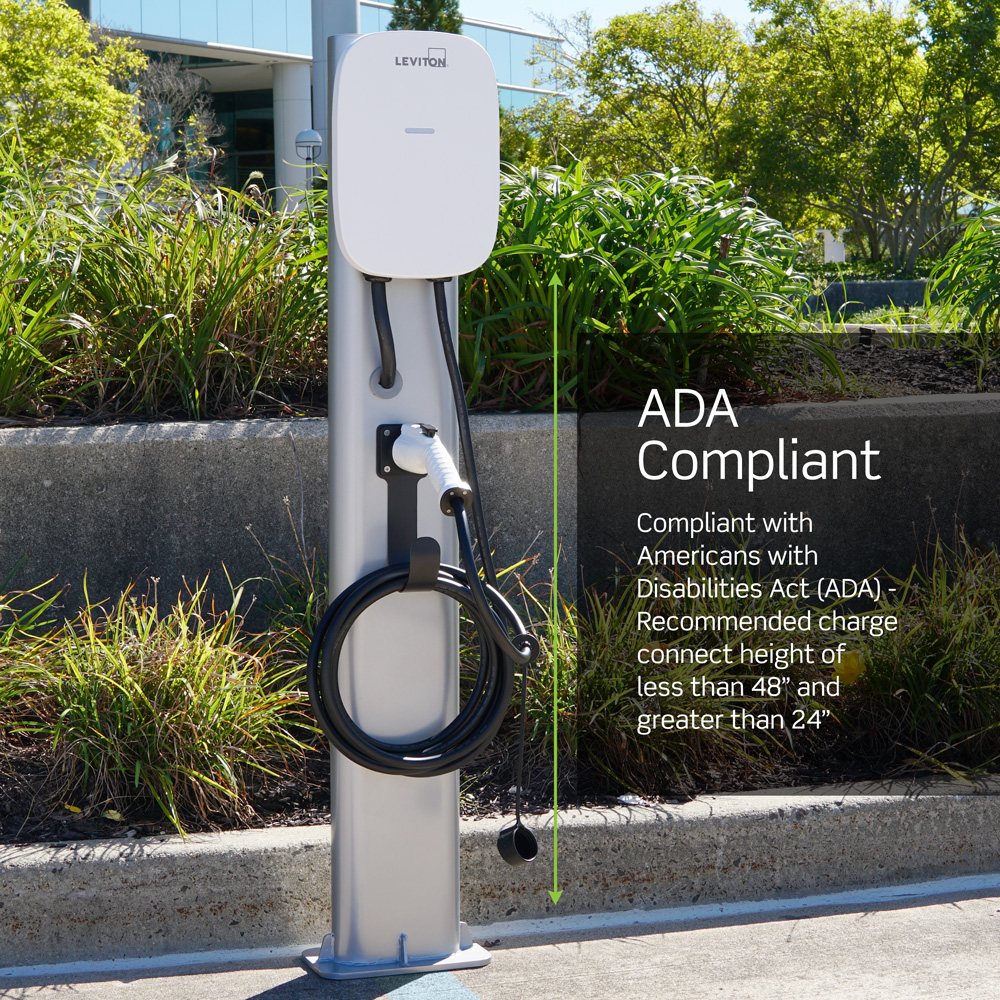

• Designed for use with Leviton EV Series chargers and compatible with dual mount pedestal systems
