Description
Features
- The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices (No data transfer capability)

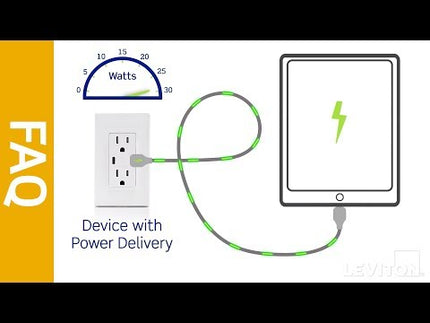

- Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are:
- Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W)
- Single port connected to non-PD device: 5VDC@3A (15W)
- Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total)
- Charges most Type-C devices as well as Type A devices (adapter required)
- Shallowest profile on the market for ease of installation
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
- Internal thermo regulator prevents the electronics from overheating
- USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- Type-C USB Ports enable cables to be inserted in either direction
- Tamper-Resistant improves child safety – built-in shutter prevents access by most non-rated/foreign objects
- Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device

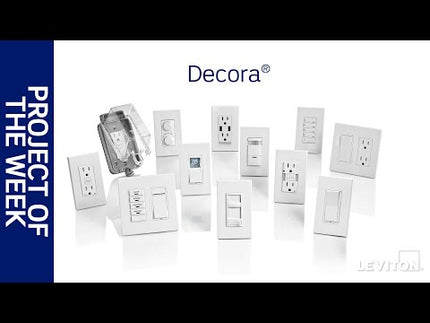

- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
- Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
- Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
- No data transfer capability
- POWERFUL – 30W charge on a single port. Up to 2x the charging power with PD-enabled devices
- INNOVATIVE – USB Type-C or USB-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
- FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently
NEMA
- 5-20R
Patents
- CA2621644
- CA2624409
- CA2677283
- CN200880004760.2
- MX338817
- US7355117
- US7820909
- US7868719
- US8242362
- US8944859
- US9368982
- US9496726
Color Variations
- Black
Specifications
- Country of Origin: Please Contact Customer Service
- RoHS Compliant: False
Electrical Specifications
- Amperage: 20 A
- Body Material: Thermoplastic
- Color: White
- Cover Material: Thermoplastic
- Grounding: Grounding
- Horsepower Rating: 20A-1/2 HP
- Ratings: 20A-125V
- Strap Material: Steel
- Voltage: 125 VAC
Product Features
- Brand: Decora
- NEMA: 5-20R
- Product Type: Outlet/USB Combo
- Type: 30W Type C/C with PD Duplex Receptacle
- Wallplate: Not Included
Material Specifications
- Body Material: Thermoplastic
- Color: White
- Cover Material: Thermoplastic
- Grade: Residential/Commercial Specification Grade
- Strap Material: Steel
Standards & Certifications
- FCC Part 15: Class B
- Listed: cCSAus
- NOM: 057
- UL 1310: Yes
- UL 498: Yes
- Warranty: 2-Year Limited
Environmental Specifications
- Flammability: Rated V-0 per UL 94
- Operating Temperature: -10°C to 40°C
- Product ID: Stamped on Strap
- Terminal Accom.: 14-12 AWG
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination: Back & Side
- Torque Range: 14 – 18 in.-lbs
Mechanical Specifications
- Listed: cCSAus
- NOM: 057
- Product ID: Stamped on Strap
- Terminal Accom.: 14-12 AWG
- Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
- Termination: Back & Side
- Torque Range: 14 – 18 in.-lbs
- Warranty: 2-Year Limited
Downloads
Application Note
RESI USB-Charger-Devices FAQsBrochure
Straight Blade Receptacle Catalog Q-1101HProduct Bulletin
Leviton High Power USB Product BulletinInstruction Sheet
Leviton T5635 T5835 Instruction Sheet EnFrSpDimensional Drawing
Leviton T5635-T5835 Dimensional DrawingOther Documents
USB-Type-C-C-PD-FAQsVideos
More Information
Manufacturer Catalog Number
T5835-W
Weight
17.1600
Country of Origin
Please Contact Customer Service
Color
White
Amperage
20 amperes
Body Material
Thermoplastic
Family Brand Name
Decora
Flammability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
-1/2 horse power
Nema
5-20R
Operating Temperature
-10 degrees celsius
Torque
14 pound inches
Warranty Length
2 years
