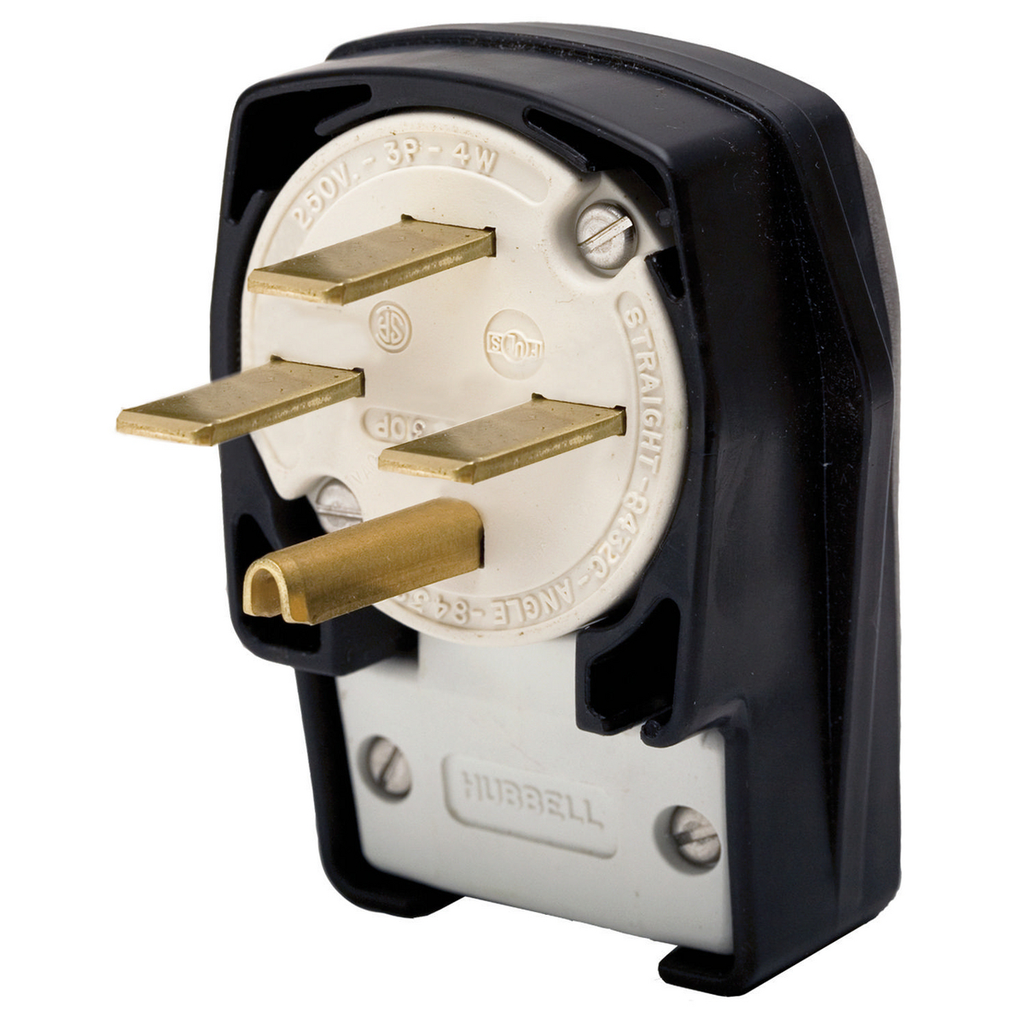

30A Plug Angled 3P4W, 3Ph 250V 15-30P, Black
SKU: #146087
Part: #HBL8432C
UPC: 783585015415
30A Plug Angled 3P4W, 3Ph 250V 15-30P, Black
SKU: #146087
Part: #HBL8432C
UPC: 783585015415
Description
30A Plug Angled 3P4W, 3Ph 250V 15-30P Industrial Electrical Plug
This 30 amp angled plug is designed for industrial and commercial applications, providing a reliable connection for 3-phase, 250V AC power systems. It is suitable for use with wire and cable in environments requiring grounding and secure electrical connections. Ideal for electrical distributors and switchgear suppliers, this plug supports heavy-duty power distribution needs in indoor dry environments unless additional protection is applied.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL8432C
- Application: Industrial/Commercial
- Current Rating: 30 amperes
- Amperage Rating: 30 A
- Voltage: 250V AC
- Number of Poles: 3-Pole
- Number of Wires: 4-Wire
- NEMA Rating: 15-30P
- Mounting: Cord Mounted
- Cord Type: All Portable
- Connection Type: Terminal Screws
- Material: Composite
- Width: 3.3 in
- Product Weight: 0.85 lb
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: United States
- Made in USA: Yes
Features
- Straight blade, angled design for secure and ergonomic connection
- Industrial grade plug suitable for 3-phase power distribution
- Composite material housing for durability and electrical insulation
- Terminal screw connections ensure reliable wiring
- Compatible with all portable cord types
- Meets NEMA 15-30P standards
- Manufactured in the USA ensuring quality and compliance
