30598 Weatherproof Outlet Box – Electrical Distributor Lighting Solutions

The 30598 Weatherproof Outlet Box by Mulberry Metal Products is designed for branch circuit wiring applications in wet, damp, or dry locations. Constructed from heavy-duty die-cast aluminum with a powder coat finish, this outlet box provides superior weather resistance and durability, making it suitable for electrical distributors, lighting solutions, wire and cable management, and switchgear supplier needs.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat for Maximum Weatherability
• Color: Gray

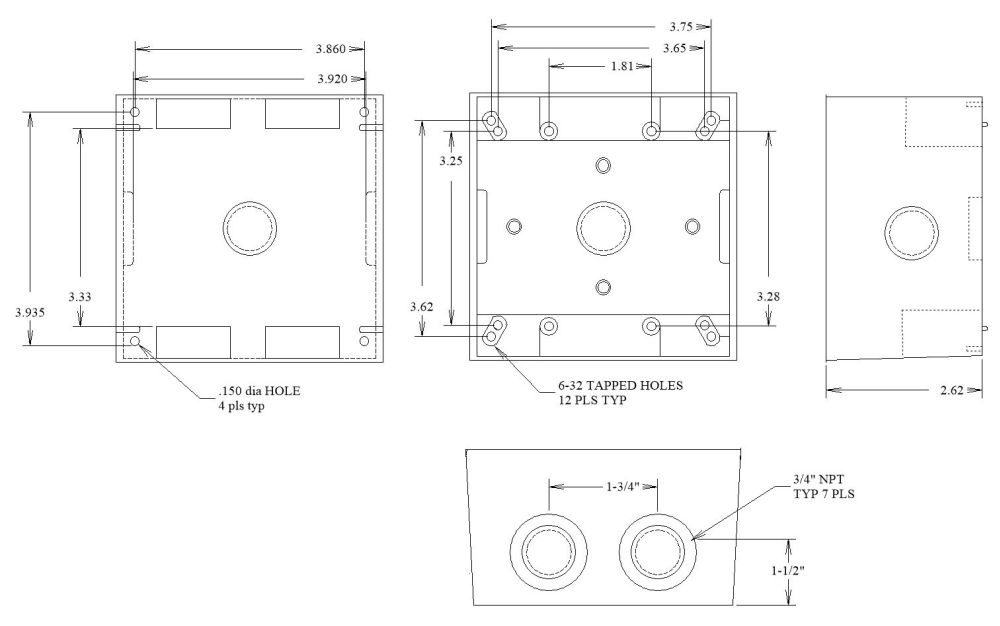

• Dimensions: 4.5 in. Height x 4.5 in. Width x 2.625 in. Depth
• Weight: 130 lbs per 100 units
• Number of Outlets: 7
• Hub Size: 3/4 inch
• UL Listing: c-UL-us Listed for Use in United States and Canada
• NEMA Rating: NEMA 3R Rated
• Country of Manufacture: Made in the U.S.A.

Features

• Weatherproof design suitable for wet, damp, or dry locations
• Heavy-duty die-cast aluminum construction ensures durability and corrosion resistance
• Superior powder coat finish enhances weatherability and longevity
• Includes detachable lugs, 2 close-up plugs, and self-tapping ground screw for easy installation
• Multiple outlet locations: 2 in each end, 1 in each side, and 1 in back
• Compatible with branch circuit wiring and lighting solutions applications

Downloads and Links

• Weatherproof Boxes Catalog PDF
