30461 Weatherproof Device Box Cover – Self-Closing 2-Gang Cover

The 30461 Weatherproof Device Box Cover is designed for outdoor receptacle protection, featuring a self-closing mechanism suitable for electrical distributors and lighting solutions. This cover accommodates two single receptacle device openings and is ideal for use in environments requiring durable, weather-resistant wire and cable protection. It is constructed with a die-cast zinc lid and an aluminum base plate, making it robust for heavy-duty applications. UL and CSA approvals ensure compliance with safety standards, making it a reliable component for switchgear suppliers and electrical contractors.

Specifications

• Device Opening: (2) Single Receptacle
• Number of Gangs: 2

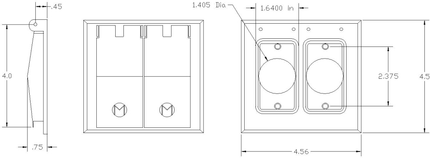

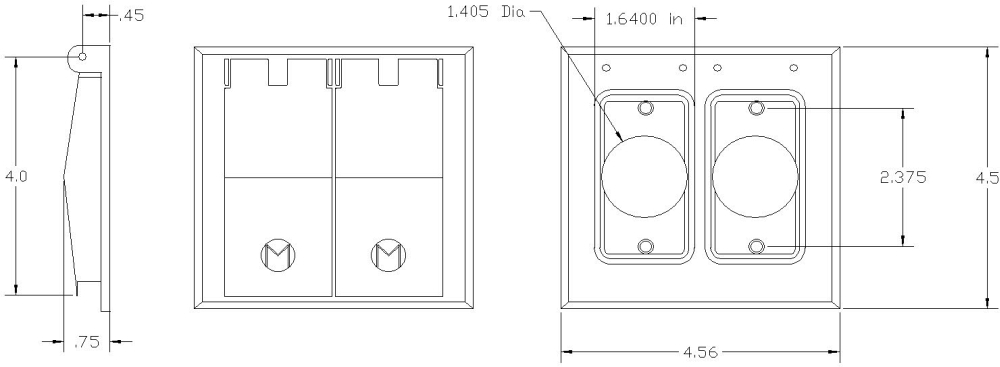

• Dimensions: 4.56 Inch Width x 0.75 Inch Depth x 4.5 Inch Height
• Material: Die-Cast Zinc (Lid), Aluminum (Base Plate)
• Color: Gray
• Finish: Powder Coat Painted
• Mounting Type: Device
• Mounting Position: Vertical
• Approvals: UL, CSA
• Includes: Heavy-Duty Universal Gasket and Stainless Steel Mounting Screws
• Product Weight: 0.7 lbs

Features

• Self-closing cover design enhances weather protection for outdoor receptacles
• Solid aluminum base plate with rugged die-cast zinc lid for durability
• Superior powder coat finish ensures maximum weatherability and corrosion resistance
• Includes stainless steel mounting screws and heavy-duty universal gasket for secure installation and sealing
• UL Listed and CSA Certified for use in the United States and Canada
• Made in the USA, supporting quality and regulatory compliance

Downloads & Links

• Specification/Technical
• Catalog
