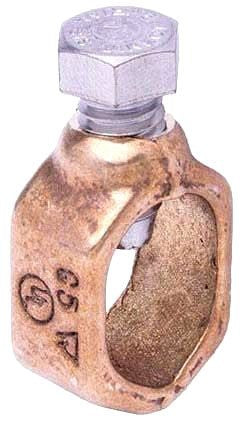

302LD Ground Rod Clamp - Electrical Grounding Solutions

The 302LD Ground Rod Clamp is designed for securing electrical cable to ground electrodes in grounding systems. Manufactured by Harger, this light duty clamp is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding components. It supports conductor sizes from 10 AWG solid to 2 AWG stranded and fits 3/4 inch ground rods, making it a practical component in lighting solutions and wire and cable installations.

Specifications

• Conductor Size: 10 AWG Solid to 2 AWG Stranded
• Rod Size: 3/4 Inch
• Material: Silicon Bronze
• Weight: 0.1300 lbs
• Dimensions (L x W x H): 1 in x 1 in x 1 in
• UL Listed: Yes (Canada and US)
• Manufacturer: Harger
• Manufacturer Part Number: 302LD

Features

• Bronze cap screw secures cable to ground electrode
• Light duty clamp suitable for electrical grounding applications
• Corrosion-resistant silicon bronze construction
• UL and CSA listed for direct burial applications
• Commonly known as acorn or tear drop clamp
