30289, Weatherproof Take-Off Extension - Weatherproof Electrical Box Extension

The 30289 Weatherproof Take-Off Extension is designed to extend the depth of existing weatherproof electrical boxes, providing additional wiring capacity for branch circuit wiring in wet, damp, or dry locations. This product is suitable for electrical distributors and switchgear suppliers seeking durable and reliable solutions for outdoor or harsh environment installations. Its rugged construction and weatherproof design make it ideal for lighting solutions and wire and cable management applications.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Color: Gray

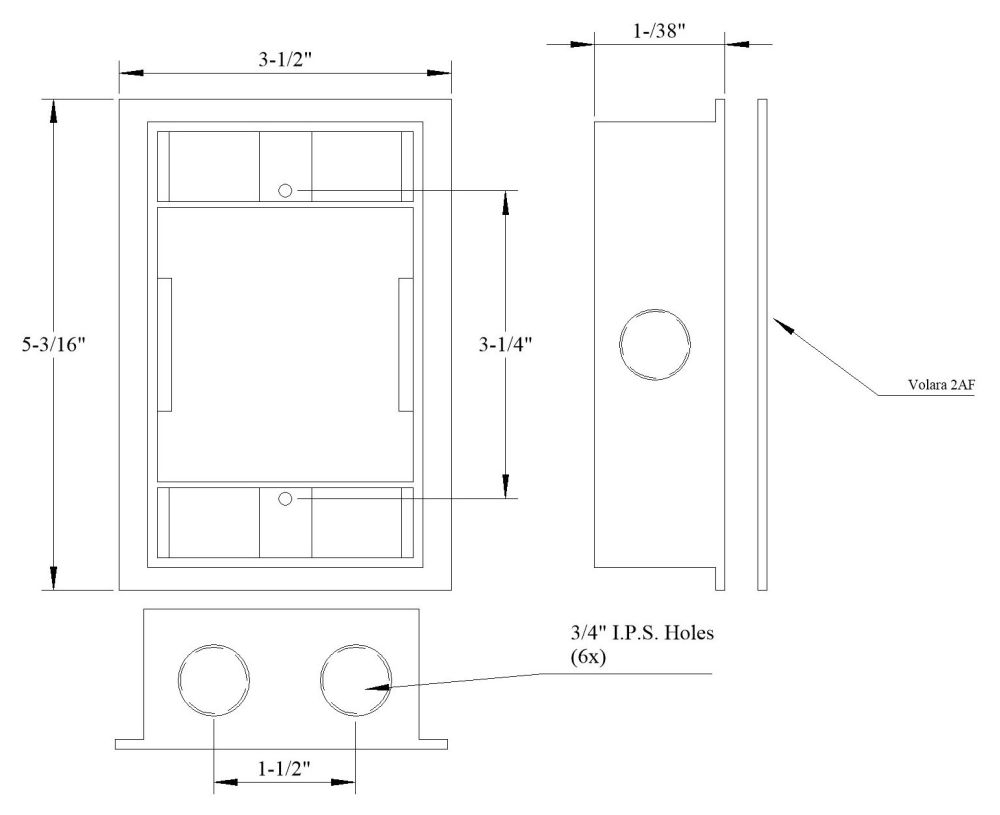

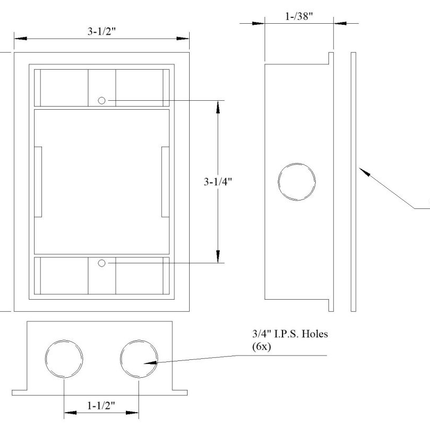

• Dimensions: 3.5 inches wide x 5.125 inches high x 1.375 inches deep
• Number of Outlets: 6 threaded outlets
• Hub Size: 3/4 inch
• Outlet Locations: 2 in each end, 1 in each side
• Product Weight: 0.7 lbs
• Mounting Type: Screw
• Cubic Capacity: 10 cubic inches
• Certification: c-UL-us

Features

• Rugged die-cast aluminum construction for durability
• Superior powder coat paint finish ensures maximum weatherability and scratch resistance
• Threaded outlets on sides allow take-offs in four different directions
• Includes 2 close-up plugs, gasket, and mounting screws
• Manufactured in the USA

Downloads & Links

• Specification/Technical
• Other 1
• Catalog
