30269, Weatherproof Outlet Box - Weatherproof Electrical Outlet Box

The 30269 Weatherproof Outlet Box is designed for use in branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box provides a durable and reliable solution for electrical distributors and switchgear suppliers requiring weather-resistant enclosures. It is suitable for various lighting solutions, wire and cable installations, and other electrical applications needing protection from environmental elements.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat
• Color: Gray

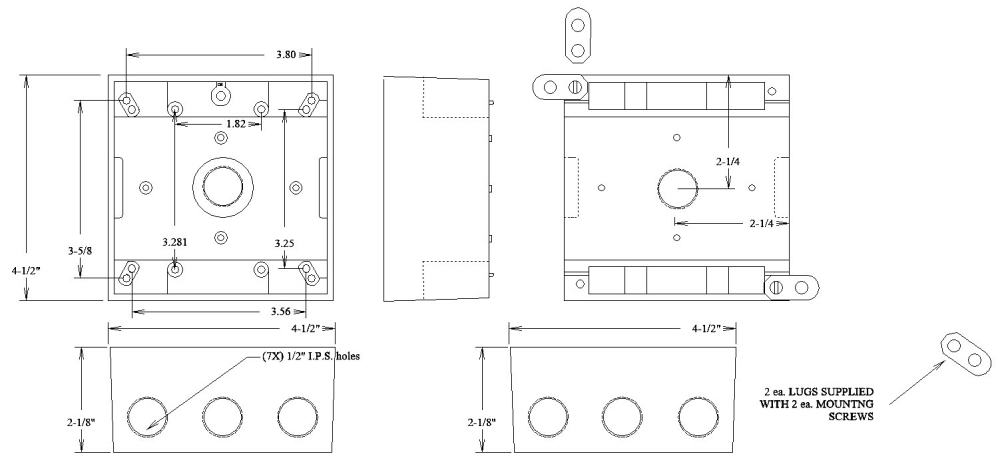

• Dimensions: 4.5 Inch Height x 4.5 Inch Width x 2.0 Inch Depth
• Weight: 110 lbs per 100 units
• Manufacturer Part #: 30269
• UL Listing: c-UL-us Listed for the United States and Canada
• NEMA Rating: NEMA 3R
• Hub Size: 1/2 inch
• Cubic Capacity: 30.5 cubic inches
• Outlets: 7 (3 in each end, 1 in back)
• Made in the USA

Features

• Heavy-duty die-cast aluminum construction ensures durability and corrosion resistance
• Superior powder coat finish for maximum weatherability
• Detachable lugs, 2 close-up plugs, and self-tapping ground screw included for easy installation
• Suitable for use with all standard FS, outlet, lampholder, or splice box covers
• Designed for indoor and outdoor damp or wet locations
• Complies with Federal Specification AA-50563
