30266 Weatherproof Outlet Box – Die-Cast Aluminum Electrical Enclosure

The 30266 Weatherproof Outlet Box by Mulberry Metal Products is designed for branch circuit wiring in wet, damp, or dry locations. This weatherproof enclosure is suitable for electrical distributors and switchgear suppliers requiring durable and reliable wire and cable protection for outdoor or harsh environments. Its robust construction and finish make it an ideal component in lighting solutions and electrical distribution systems.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat
• Color: Gray
• Height: 4.5 Inch
• Width: 4.5 Inch
• Depth: 2.0 Inch (from catalog details)
• Weight: 110 lbs per 100 units
• Manufacturer: Mulberry Metal Products
• Manufacturer Part #: 30266
• Hub Size: 3/4 Inch
• No. of Outlets: 7 (2 in each end, 1 in each side, 1 in back)
• NEMA Rating: 3R
• c-UL-us Listed for use in the United States and Canada
• Made in the USA

Features

• Heavy-duty die-cast aluminum construction ensures durability and corrosion resistance
• Superior powder coat finish provides maximum weatherability for outdoor applications

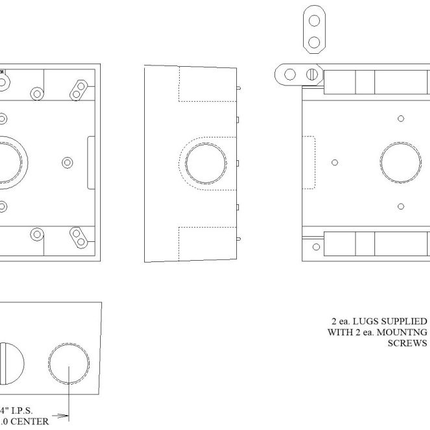

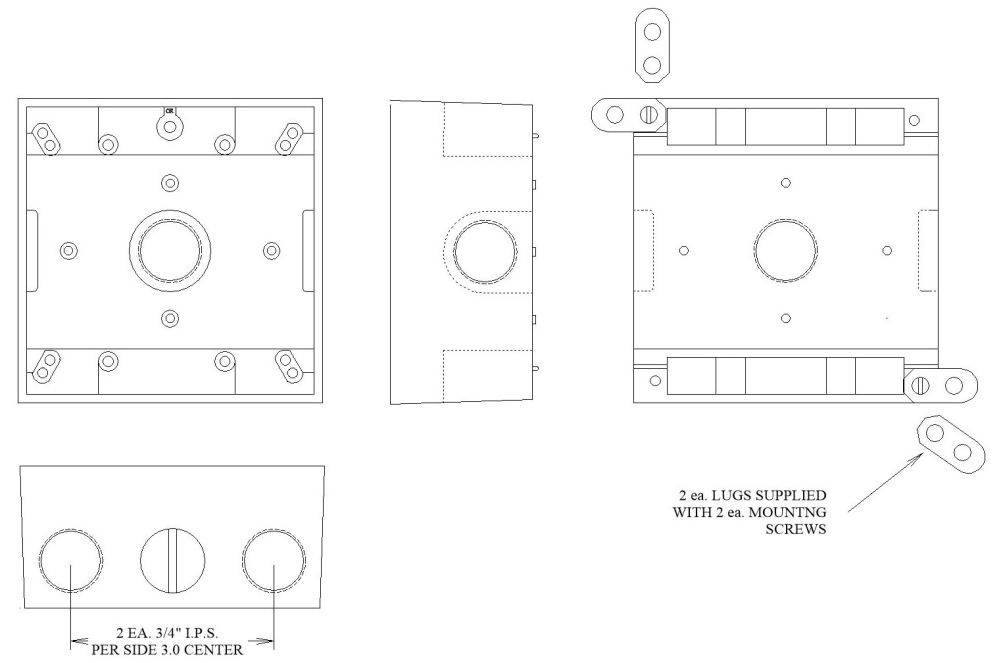

• Detachable lugs supplied with mounting screws for secure installation
• Includes 2 close-up plugs and self-tapping ground screw for grounding and sealing
• Suitable for wet locations, meeting industry standards for weatherproof electrical enclosures

Downloads & Links

• Catalog
• Specification/Technical
