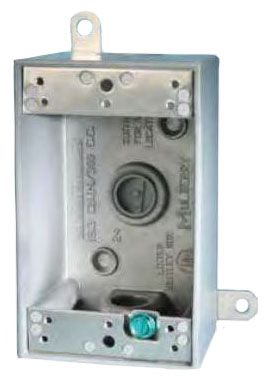

30226, Weatherproof Box - Die-Cast Aluminum Electrical Enclosure

The 30226 Weatherproof Box by Mulberry Metal Products is a durable, 1-gang enclosure designed for branch circuit wiring in wet, damp, or dry locations. It serves as a weatherproof junction box or housing for various electrical devices, suitable for electrical distributors and lighting solutions requiring robust protection. Constructed from heavy-duty die-cast aluminum, this box offers corrosion resistance and long-lasting performance for wire and cable installations.

Specifications

• Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
• Color: Gray

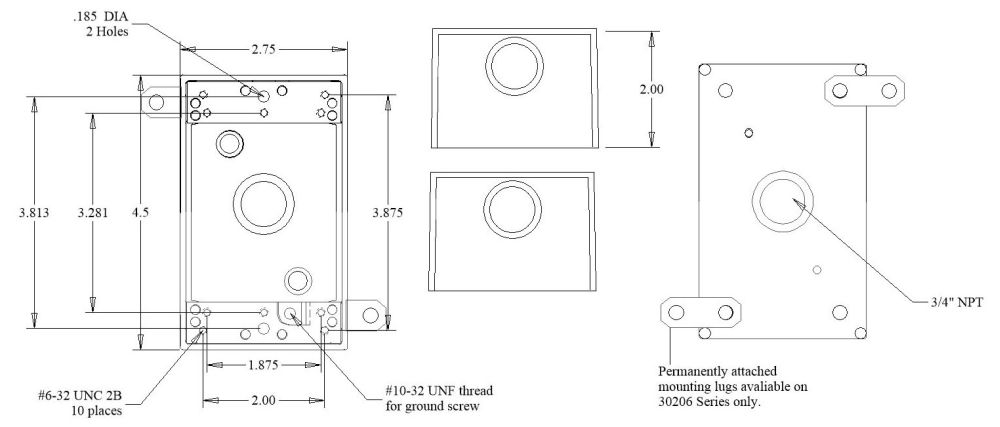

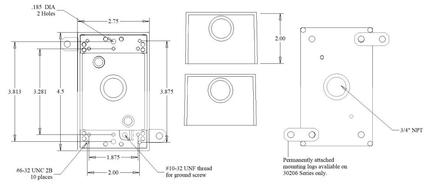

• Dimensions: 2.75 inches (Width) x 4.5 inches (Height) x 2 inches (Depth)
• Number of Outlets: 6 threaded outlets
• Outlet Locations: 1 in each end, 2 in one side, 1 in other side, 1 in back
• Hub Size: 1/2 inch
• Product Weight: 0.62 lbs
• Cubic Capacity: 18 cubic inches
• Certification: UL Listed, NEMA 3R Rated
• Manufacturer Part #: 30226

Features

• State-of-the-art powder coat paint finish for maximum weatherability and scratch resistance
• Heavy-duty mounting straps exceed all applicable UL pull-tests
• Easy access ground screw hole located along the surface of the mounting strap
• Ground screw and closure plugs included
• Manufactured in the USA
