30222, Weatherproof Outlet Box - Weatherproof Electrical Enclosure

The 30222 Weatherproof Outlet Box is designed for use in branch circuit wiring in wet, damp, or dry locations. Manufactured by Mulberry Metal Products, this box provides a durable and reliable solution for electrical distributors and switchgear suppliers requiring robust wire and cable enclosures. Its construction and finish ensure suitability for demanding outdoor and indoor lighting solutions and electrical installations.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat
• Color: Gray
• Height: 4.5 Inch
• Width: 2.75 Inch
• Weight: 58 lbs per 100 units

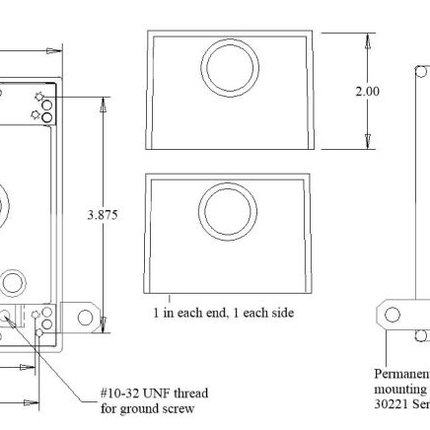

• Location of Outlets: 1 in each end, 1 each side, 1 in back
• Hub Size: 3/4 Inch
• UL Listing: c-UL-us Listed for United States and Canada
• NEMA Rating: 3R
• Country of Manufacture: Made in the USA

Features

• Weatherproof design suitable for wet locations
• Heavy duty die-cast aluminum construction for durability
• Superior powder coat finish for maximum weather resistance
• Detachable mounting lugs, two close-up plugs, and self-tapping ground screw included
• Compact dimensions optimized for branch circuit wiring
