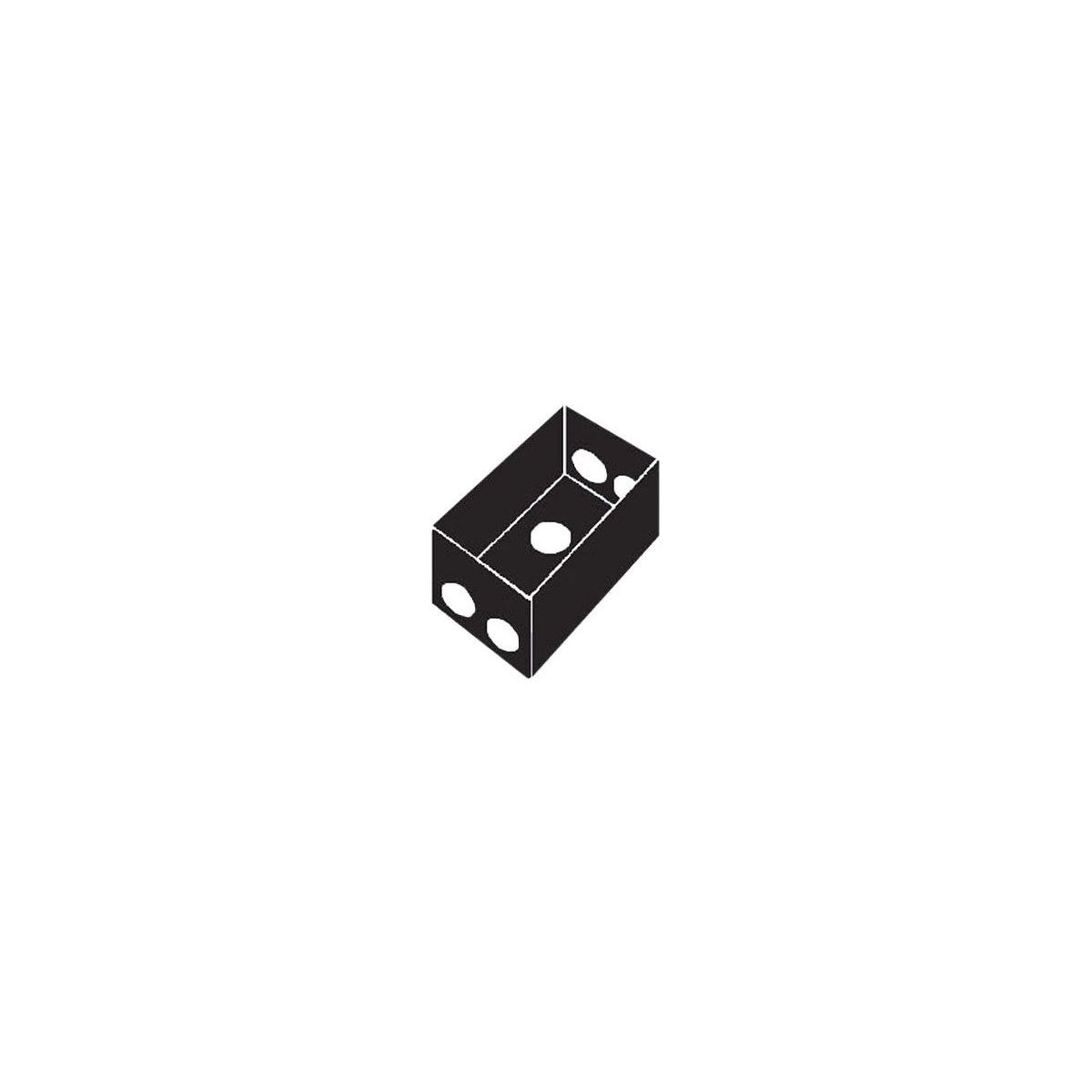

30215, Weatherproof Outlet Box – Weatherproof Electrical Box

The 30215 Weatherproof Outlet Box by Mulberry Metal Products is designed for branch circuit wiring in wet, damp, or dry locations. This weatherproof electrical box is suitable for use with standard FS, outlet, lampholder, or splice box covers, making it ideal for a variety of lighting solutions and electrical distribution applications. Manufactured from heavy-duty die-cast aluminum with a powder coat finish, it ensures durability and corrosion resistance for outdoor and indoor environments. The product is UL Listed and NEMA 3R rated, meeting industry standards for safety and weatherability.

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat
• Color: Gray
• Dimensions: 4.5 Inch Height x 2.75 Inch Width x 2.0 Inch Depth
• Weight: 62 lbs per 100 units
• Number of Outlets: 5
• Hub Size: 1/2 Inch
• Cubic Capacity: 18.0
• Mounting Lugs: Permanently Attached, Swivel
• UL Listed, NEMA 3R Rated
• Complies with Federal Specification AA-50563
• Made in the USA

Features

• Heavy-duty die-cast aluminum construction for strength and corrosion resistance
• Superior powder coat finish for maximum weatherability
• Permanently attached swivel mounting lugs for flexible installation
• Pre-tapped, easily accessible ground screw hole for simplified grounding
• Includes ground screw and two close-up plugs with each box
• Suitable for wet, damp, or dry locations
• Patented mounting strap design exceeding UL pull-tests
