30212 Weatherproof Outlet Box - Weatherproof Electrical Enclosure

The 30212 Weatherproof Outlet Box by Mulberry Metal Products is designed for use in wet, damp, or dry locations, providing a durable and reliable enclosure for branch circuit wiring. Ideal for electrical distributors and lighting solutions providers, this weatherproof box is suitable for outdoor and indoor applications requiring protection from environmental elements. It supports standard FS, outlet, lampholder, or splice box covers and features a pre-tapped ground screw hole for easy grounding.

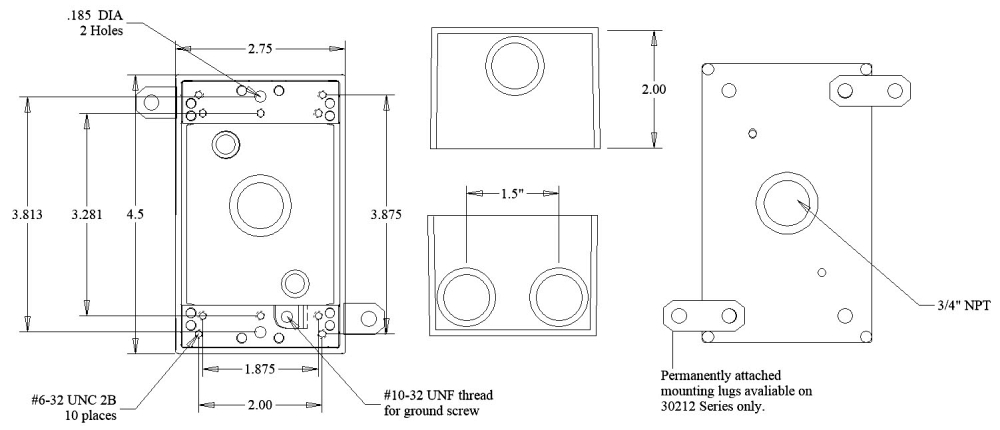

Specifications

• Material: 0.094 Inch Thick Die-Cast Aluminum
• Finish: Powder Coat
• Color: Gray
• Height: 4.5 Inch
• Width: 2.75 Inch
• Depth: 2.0 Inch
• Weight: 0.58 lbs
• Hub Size: 3/4 Inch
• Cubic Capacity: 18.0
• UL Listed, NEMA 3R Rated
• Complies with Federal Specification AA-50563
• Includes Ground Screw and 2 Close-Up Plugs
• Made in the USA

Features

• Heavy-duty die-cast aluminum construction with .094 inch thickness for superior durability
• Superior powder coat finish ensures maximum weatherability and corrosion resistance
• Permanently attached swivel mounting lugs for versatile and secure installation
• Pre-tapped ground screw hole located on mounting strap for easy grounding
• Heavy-duty mounting straps exceed all UL pull-test requirements
• Suitable for use with all standard FS, outlet, lampholder, or splice box covers
• Designed for branch circuit wiring in wet, damp, or dry locations
