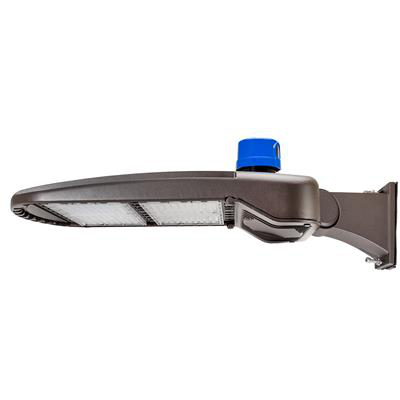

300W LED Pole/Arm-Mounted Area Light-P3 | LED Area Lighting

The 300W LED Pole/Arm-Mounted Area Light-P3 by Southwire is designed for commercial outdoor lighting applications, delivering uniform illumination with high photometric performance. This fixture is suitable for use by electrical distributors and lighting solutions providers in environments such as parking lots, roadways, campuses, auto dealerships, walkways, grocery stores, and other public areas. Featuring a low-profile design and durable construction, it supports efficient area lighting and security lighting needs.

Specifications

• Manufacturer Part #: F-ARL/300/50K/P3
• Power: 300W
• Lumens: 39,000
• Color Temperature: 5000K CCT
• CRI: 80
• Input Voltage: 120-277V
• Power Factor, THD: >0.9, <20%
• Functional Life (L70): 50,000 hours
• IES Distribution: Type III
• BUG Rating: B4U3G4
• Dimensions: Length 13.45", Width 24.73"
• Weight: 15.99 lbs
• Ambient Operating Temperature: -40°F to 115°F
• Standby Dimming Level: 10%

Features

• One-piece die-cast aluminum housing with UV resistant powder coat finish for corrosion protection
• Polycarbonate optical lens
• Stainless steel hardware
• Pole mounting bracket compatible with square or round poles
• Flexible mount system allowing easy swap of mounts for SKU reduction
• Suitable for mounting heights from 18 to 36 feet
• Includes 6-foot power cable
• Silicone rubber gasket for weatherproof seal
• Twist-lock photocell and shorting cap included
• 10kV surge protection
• 0-10V dimming capability

Downloads & Links

• IES - F-ARL-300-50K-P3.IES
• Trunnion Mount-80 Installation Instructions
• Spec Sheet
• LM79 - F-ARL-300-50K-P3
• Installation Instructions-F-ARL-xx0-50K-P3 and P5
