30 Crct Stked Neut C/W Base
SKU: #303412
Part: #1030MB
UPC: 662381008152
30 Crct Stked Neut C/W Base
SKU: #303412
Part: #1030MB
UPC: 662381008152
Description

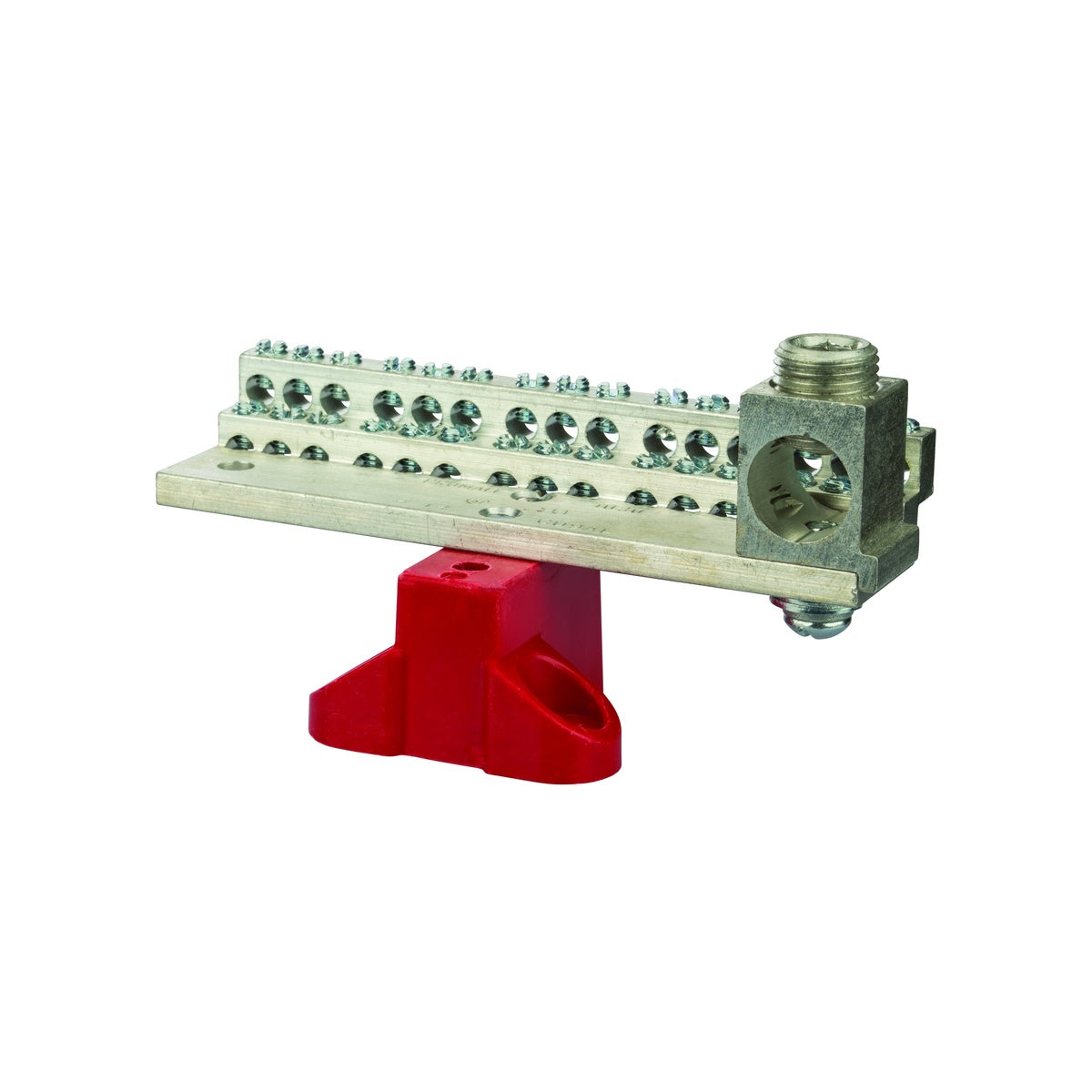

30 Crct Stked Neut C/W Base - NSI 1030MB 225A Stacked Neutral Bar
This 30 Circuit Stacked Neutral Bar with mounting base is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and lighting solutions providers. It supports conductors ranging from 4-14 AWG circuits and includes a 350 MCM to 6 AWG main lug. The product is suitable for use in wire and cable management systems and is ideal for switchgear suppliers requiring reliable neutral connections.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: 1030MB
- Conductor Size: (30) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
- Conductor Material: Aluminum
- Material: 6061T-6 Aluminum Alloy
- Dimensions: Length 5.385 in, Height 2.75 in, Width 2.25 in
- Product Weight: 0.3720 lbs
- Application: Wire Termination
- Order Minimum: 1
- Country of Origin: United States
- Made in USA: Yes
Features
- Compact stacked neutral assembly design for space-saving installation
- Wire holes are stacked to minimize width for efficient wiring
- One-piece construction ensures superior mechanical performance
- High strength 6061T-6 aluminum alloy construction
- Includes a 350 MCM main lug for main conductor connection
- High strength, glass-filled polyester mounting base for isolated mounting
- Supports up to 30 circuits with 4-14 AWG wire sizes
