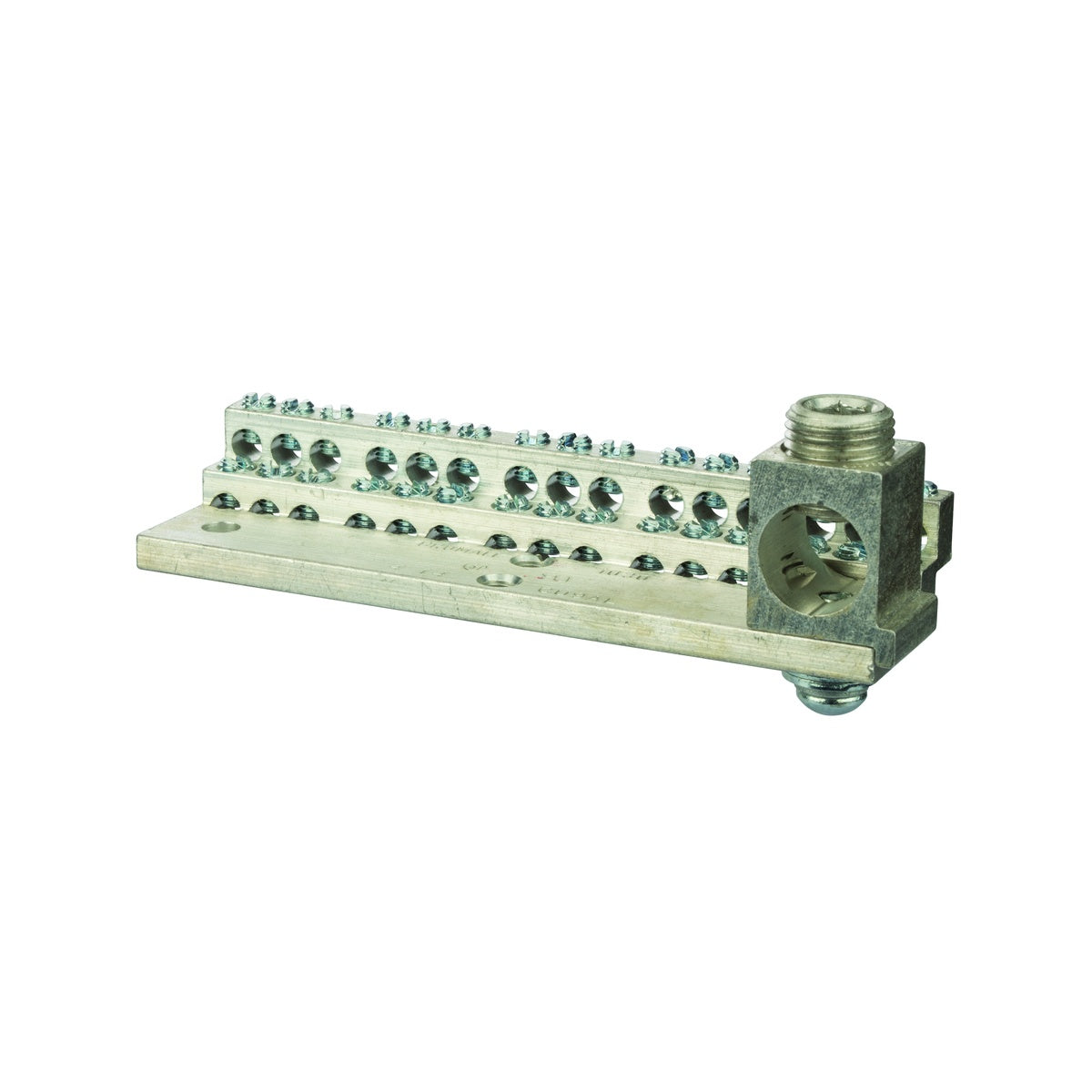

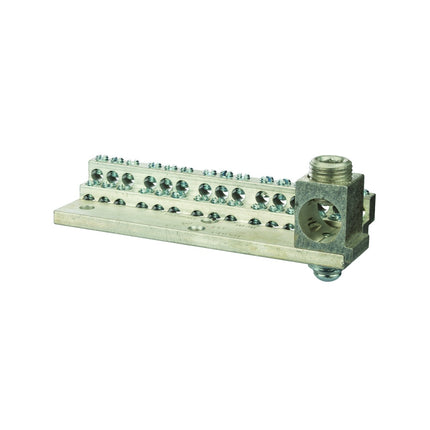

30 Circuit Stacked Neut + Main – Stacked Neutral Bar

The 30 Circuit Stacked Neutral Bar with Main Lug is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and lighting solutions requiring reliable neutral connections. This product supports up to 30 circuits with conductor sizes ranging from 4 to 14 AWG and includes a main lug sized for 350 MCM to 6 AWG conductors. Manufactured by NSI Industries, it is made from high strength 6061T-6 aluminum alloy and is suitable for use in wire and cable assemblies within switchgear and panelboards.

Specifications

• Manufacturer Part #: 1030M
• Conductor Size: (30) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
• Conductor Material: Aluminum
• Material: 6061T-6 Aluminum Alloy
• Dimensions: 5.385 in (Length) x 1.375 in (Height) x 1.5 in (Width)
• Product Weight: 0.3720 lbs
• Application: Wire Termination
• Country of Origin: United States
• Made in USA: Yes

Features

• Compact stacked design minimizes width for space-saving installation
• One-piece construction provides superior mechanical performance
• High strength 6061T-6 aluminum alloy ensures durability and conductivity
• Includes 350 MCM main lug for heavy gauge conductor compatibility
• Suitable for electrical distributors and switchgear suppliers requiring reliable neutral bar solutions
