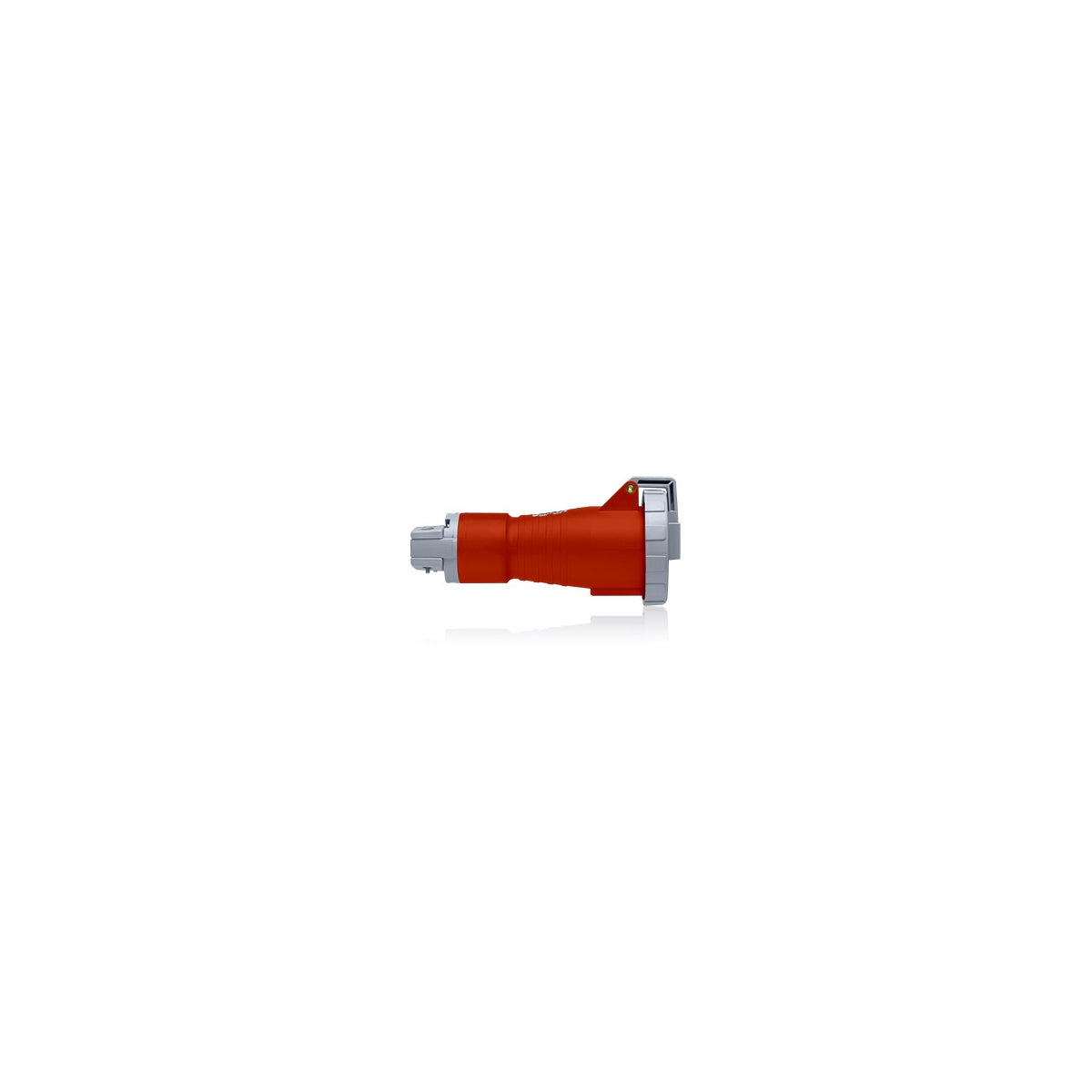

30 Amp, 277/480 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector - Industrial Grade

This industrial-grade, watertight North American pin and sleeve connector is designed for 30 amp, 277/480 volt, 3-phase WYE electrical systems. It features a 4-pole, 5-wire configuration suitable for heavy-duty applications requiring reliable and safe power connections. The connector is ideal for electrical distributors and lighting solutions providers requiring robust wire and cable accessories or switchgear supplier components with high ingress protection.

Specifications

• Amperage: 30 amperes
• Voltage: 277/480 Volt, 3-Phase WYE
• Number of Poles: 4
• Number of Wires: 5
• Device Type: Connector
• Body Material: Valox 357
• Color: Red
• IP Rating: IP67 (Watertight)
• Dielectric Withstand Voltage: 3000 volts
• Flammability Class: Rated V-2 per UL 94
• Certification: CSA C22.2 No 182.1
• Product Weight: 1.25 lbs
• Manufacturer Part Number: 530C7W

Features

• Industrial grade construction for durability in demanding environments
• Watertight design with IP67 rating ensures protection against dust and water ingress
• Compliance with CSA standards for safety and performance
• Valox 357 body material provides excellent mechanical strength and flame resistance
• Color-coded red housing for easy identification in electrical installations
• Designed for use with copper or copper-clad wire only
• Suitable for use in heavy-duty electrical distribution, lighting solutions, and switchgear applications
• High dielectric strength withstands up to 3000 volts for electrical safety

Downloads & Links

• Instruction Sheet
