Specifications

Material Specifications

• Color: Black
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Strap Material: Galvanized Steel

Standards and Certifications

• Warranty: 10-Year Limited
• NOM: 057
• CSA C22.2 No. 42: File 152105
• UL498: File E13399
• ANSI: C-73
• NEMA: WD-6

Electrical Specifications

• Amperage: 30 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Pole: 2
• Current Limiting: Full Rated Current
• Voltage: 250 VAC
• Grounding: Grounding

Product Features

• Color: Black
• Country Of Origin: Please Contact Customer Service.

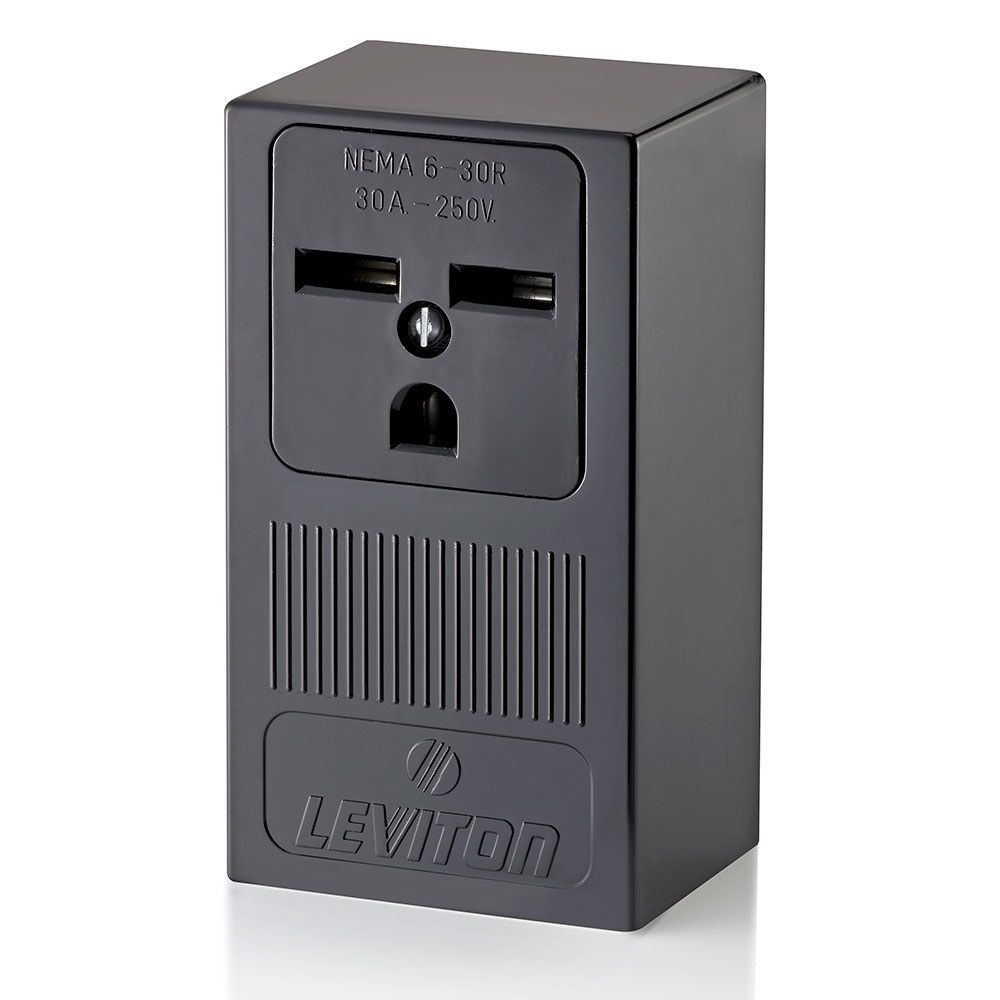

• NEMA: 6-30R

Mechanical Specifications

• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: Up to 4 AWG

AC Horsepower Ratings

• At Rated Voltage: 2 HP

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
