Features

• Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

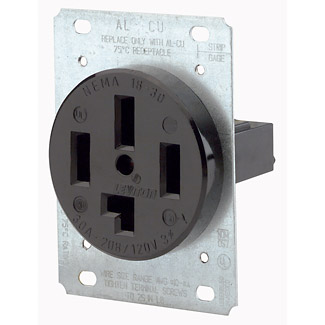

NEMA

• 18-30R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-6
• NOM: 057
• UL498: File E13399
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 30 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Non-Grounding
• Pole: 4
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Voltage: 120/208 VAC
• Wire: 4

Product Features

• Device Type: Power Device

AC Horsepower Ratings

• At Rated Voltage: 3 HP

Material Specifications

• Body Material: Nylon
• Color: Black
• Face Material: Nylon
• Line Contacts: Brass Double-Wipe
• Strap Material: Galvanized Steel

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: Up to 4 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
