30/50 Amp, 125 Volt, NEMA 5-30P/5-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
SKU: #27566
Part: #930
UPC: 078477155349
30/50 Amp, 125 Volt, NEMA 5-30P/5-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black
SKU: #27566
Part: #930
UPC: 078477155349
Description

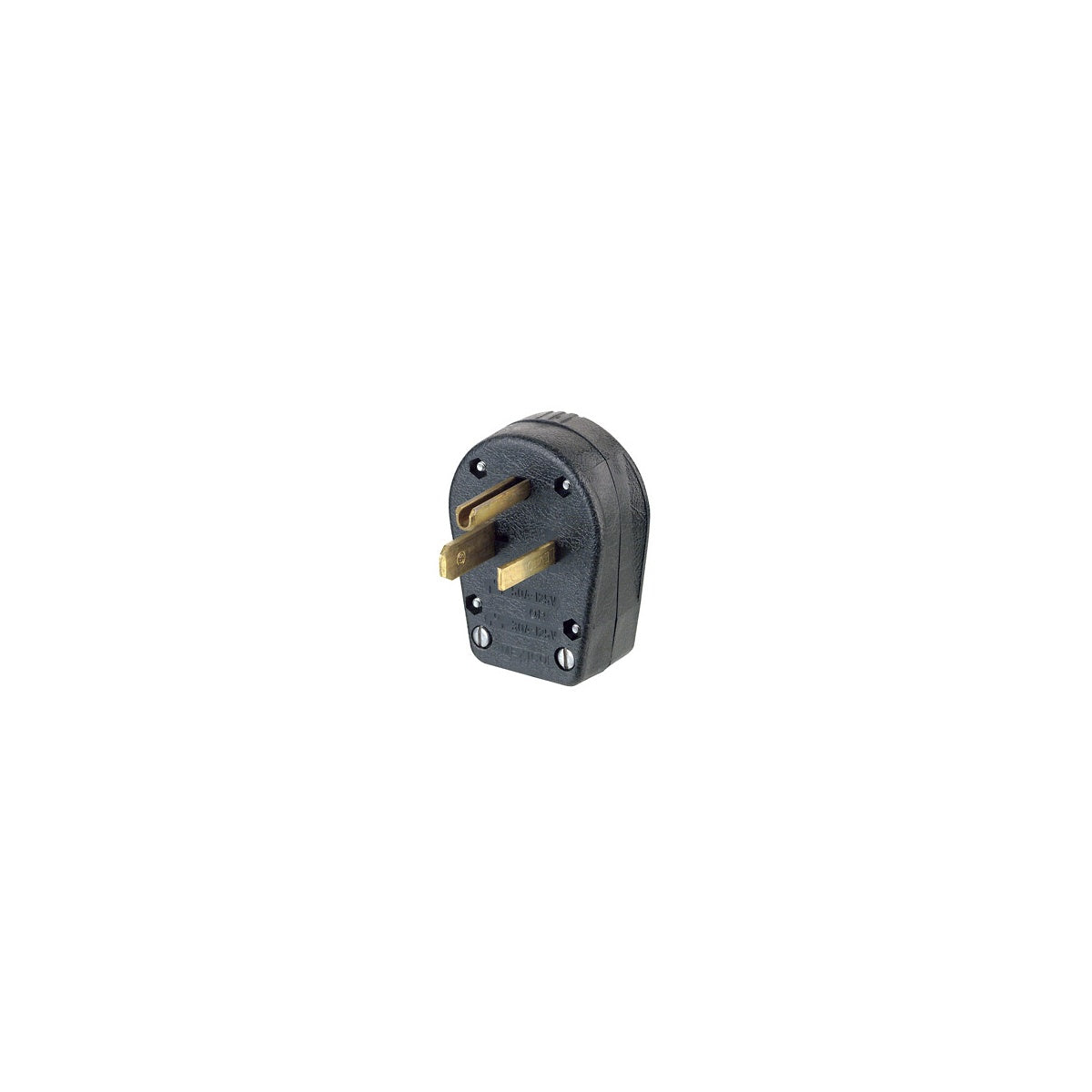

30/50 Amp, 125 Volt NEMA 5-30P Angle Plug – Commercial Grade Electrical Connector
This Leviton 30/50 Amp, 125 Volt NEMA 5-30P angle plug is designed for heavy-duty electrical applications requiring reliable power connections. Suitable for use with hard service cords and heavy equipment, this commercial grade plug features a right-angle construction and grounding for safe and efficient electrical distribution. It is ideal for electrical distributors and lighting solutions providers needing durable wire and cable connectors or switchgear supplier components.
Specifications
- Amperage: 30 amperes
- Voltage: 125 volts
- NEMA Configuration: 5-30P
- Number of Poles: 2
- Number of Wires: 3 (2P, 3W)
- Body Material: Thermoplastic
- Blade Type: Brass
- Color: Black
- Grounding: Grounding
- Dielectric Withstand Voltage: 2000 volts
- Operating Temperature: -40 degrees Celsius
- Flammability Rating: Rated V-2 per UL94
- Product Weight: 0.56 lbs
- Manufacturer: Leviton
- Manufacturer Part Number: 930
Features
- Dead front design with no exposed current-carrying parts for enhanced safety
- Right-angle construction to facilitate installation in tight spaces
- Impact, grease, and oil resistant thermoplastic housing for durability in harsh environments
- Supplied with L-shaped 30 Amp and 50 Amp interchangeable blades for versatile use
- Compatible with hard service cords ranging from #14/3 to #6/3 AWG copper wire
- Terminal clamps accept up to #6 AWG wire
