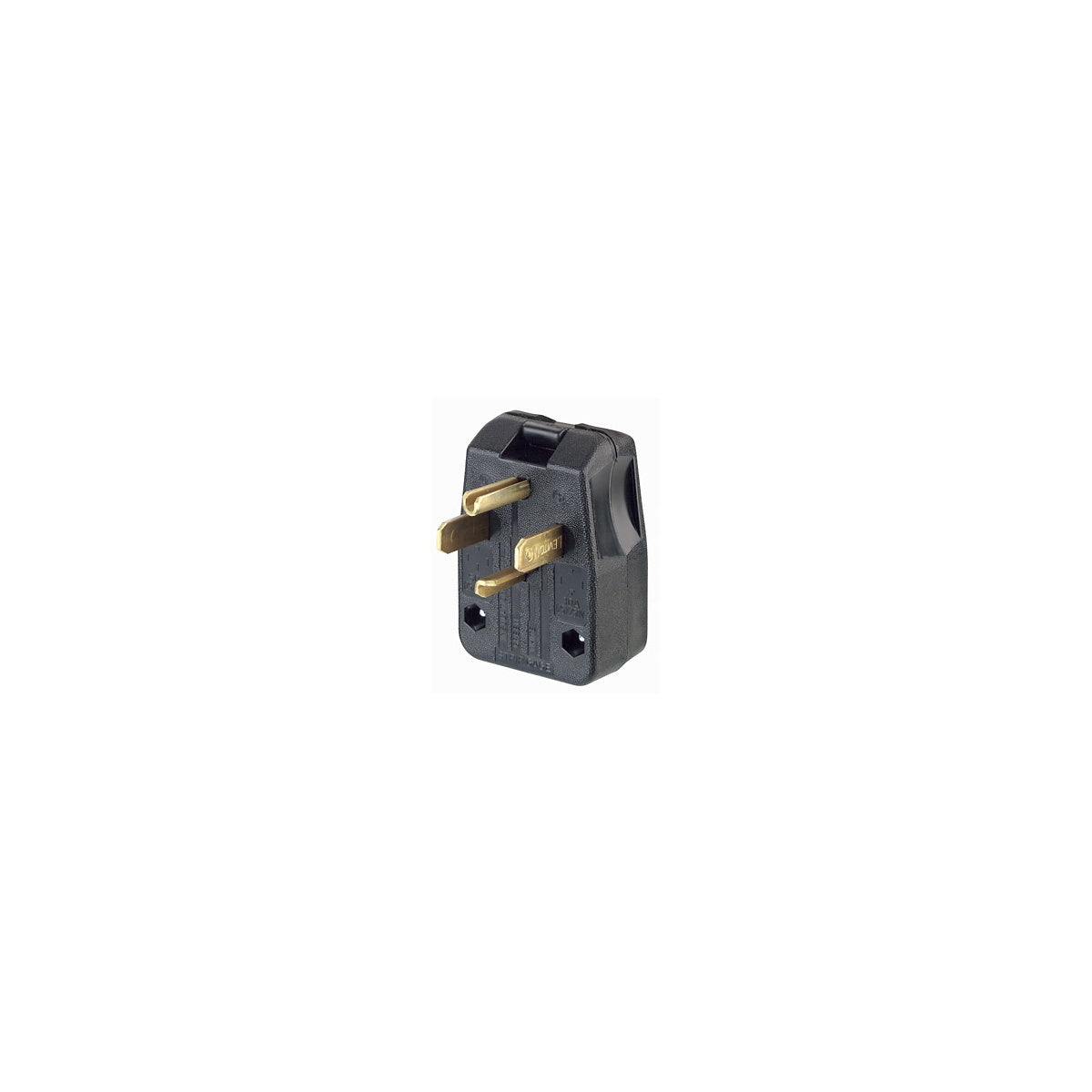

30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - BLACK
SKU: #11642
Part: #275-T
UPC: 078477771402
30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - BLACK
SKU: #11642
Part: #275-T
UPC: 078477771402
Description
30/50 Amp, 125/250 Volt NEMA 14-30P/14-50P Plug – Commercial Grade Electrical Connector
This Leviton 30/50 Amp dual power plug is designed for commercial electrical applications requiring reliable connections for 125/250 Volt circuits. It serves as a robust component for electrical distributors and switchgear suppliers needing durable, grounding plugs suitable for wire and cable installations. The plug supports both 30 amp and 50 amp ratings with NEMA 14-30P and 14-50P configurations, providing compatibility with multiple power requirements.
Specifications
- Name: 30/50 Amp, 125/250 Volt, NEMA 14-30P/14-50P, 3P, 4W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - BLACK
- Manufacturer: Leviton
- Manufacturer Part #: 275-T
- NEMA: 14-30P
- Amperage: 30 amperes
- Number of Poles: 3
- Voltage Rating: 125/250 Volt
- Blade Type: Brass
- Body Material: Thermoplastic
- Color: Black
- Grounding: Grounding
- Dielectric Strength: 2000 volts
- Operating Temperature: -40 degrees Celsius
- Flammability Class: Rated V-2 Per UL 94
- Product Weight: 0.6400 lbs
- UPC: 078477771402
Features
- Commercial grade construction for durability in demanding electrical environments
- Thermoplastic body material provides high resistance to heat and flame
- Brass blades ensure reliable conductivity and corrosion resistance
- Built-in grounding for enhanced safety compliance
- Rated for use with copper or copper-clad wire only, supporting 4-wire cords with black, red, white, and green conductors
- Designed with a rejection feature to prevent improper blade positioning during installation
- Wide operating temperature range suitable for harsh environments
