30/50 Amp, 125/250 Volt, NEMA 10-30P/10-50P, 3P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Non-Grounding - Black
SKU: #11927
Part: #287-T
UPC: 078477137024
30/50 Amp, 125/250 Volt, NEMA 10-30P/10-50P, 3P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Non-Grounding - Black
SKU: #11927
Part: #287-T
UPC: 078477137024
Total Price: $17.25 per each Sold in increments of 1 each
Description

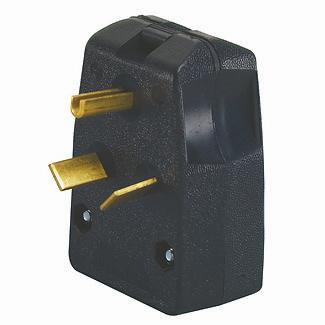

30/50 Amp, 125/250 Volt, NEMA 10-30P/10-50P Plug – Commercial Grade Electrical Connector
This Leviton commercial grade angle plug is designed for use in electrical distribution applications requiring 30 to 50 ampere capacity at 125/250 volts. It serves as a reliable connector for wire and cable in commercial and industrial settings. Suitable for use by electrical distributors and switchgear suppliers, this plug supports 3-pole, 3-wire configurations with a straight blade design and is non-grounding.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: 287-T
- Amperage: 30 amperes
- Voltage Rating: 125/250 volts
- NEMA Configuration: 10-30P
- Number of Poles: 3
- Blade Type: Brass
- Body Material: Thermoplastic
- Color: Black
- Grounding: Non-Grounding
- Dielectric Strength: 2000 volts
- Flammability Class: Rated V-2 Per UL 94
- Operating Temperature: -40 degrees Celsius
- Product Weight: 0.52 lbs
- UPC: 078477137024
Features
- Angle plug design with cord clamp for secure cable attachment
- Compatible with #10 to #6 AWG 3-wire round cord or flat wire configurations
- Non-grounding configuration suitable for specific commercial applications
- Durable thermoplastic body with UL 94 V-2 flammability rating for safety
- Brass blades provide reliable electrical conductivity
- Designed for use with copper or copper-clad wire only
- Built-in rejection feature prevents improper blade positioning
