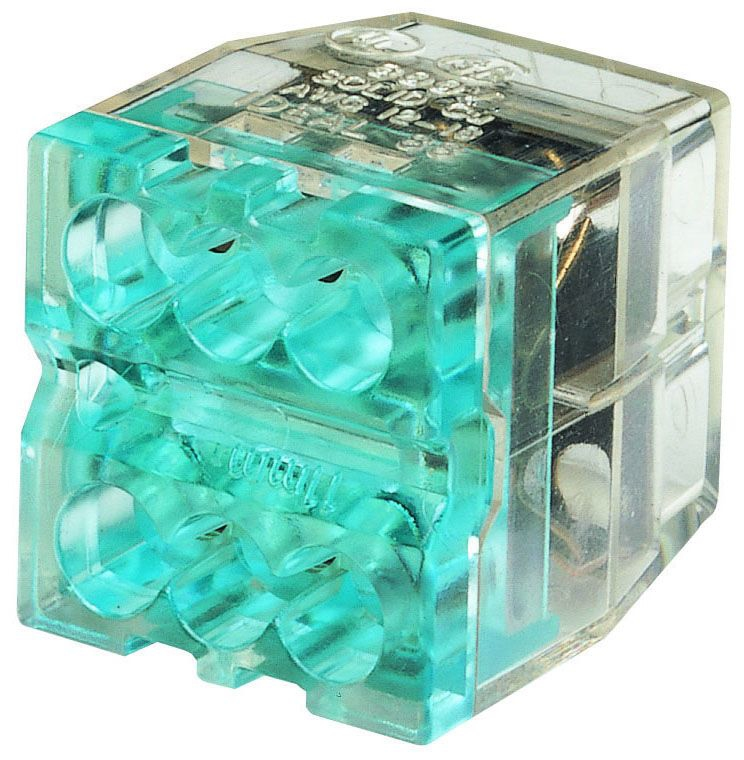

30-188, Push-In Wire Connector – Wire Connector for Electrical Distributor and Lighting Solutions

The 30-188 Push-In Wire Connector by IDEAL Industries is designed for efficient and reliable electrical connections in residential, light commercial, lighting retrofit, and pre-fabricated wiring systems. This connector simplifies branch circuit wiring applications by eliminating the need for traditional twist-on wire connectors. Its push-in design with low insertion force allows for quick and easy connections, making it suitable for electrical distributors and switchgear suppliers seeking streamlined wiring solutions.

Specifications

• Color: Blue
• Product Weight: 0.0100 lbs
• Voltage Rating: 600V maximum building wire, 1000V maximum signs or lighting fixtures
• Temperature Rating: 105°C (221°F)
• UL Listed and CSA Certified
• Compliance: Models 87, 88, and 90 CE Listed; Models 32, 33, 34 CE Listed; Models 32, 33, 34, and 39 UL 467 Listed

Features

• No-twist, push-in design reduces repetitive motion fatigue
• Low insertion force for fast and easy connections
• Compact size for easy installation in tight spaces or shallow boxes
• Clear polycarbonate shell allows visual verification of connection
• Color-coded shell for quick identification of port configuration
• Ergonomic design for comfortable grip during installation
• Tough, UL 94V-2 flame-retardant shell withstands harsh environments
• Tin-plated copper bus system for reliable conductivity
• Stainless steel inserts restrict pull out
• Check port for continuity testing
