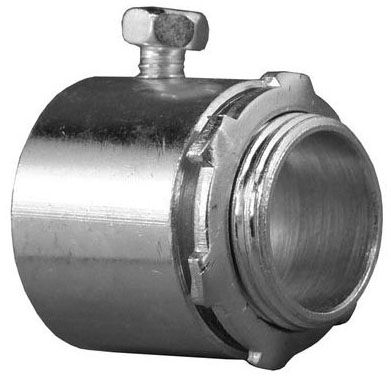

30-075, IMC/Rigid Conduit Coupling – Compression Coupling for Electrical Distribution

The 30-075 IMC/Rigid Conduit Coupling is designed for coupling sections of threadless rigid metal conduit, specifically IMC and RMC. It is used primarily in commercial and industrial electrical installations to join conduit sections securely and maintain conduit continuity. This compression-type coupling provides a concrete-tight connection, suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers.

Specifications

• Application: For Used To Couple Sections of Threadless Rigid Conduit Together
• Trade Size: 3/4 Inch
• Diameter: 1.56 inches
• Length: 1-3/4 Inch
• Material: Zinc Electroplated Malleable Iron
• Connection Type: Compression
• Constructional Feature: Concrete Tight
• Weight: 0.3100 lbs
• Applicable Standards: NEC/CEC, NEMA FB-1
• Certifications: UL 514B, CSA C22.2
• Used On: IMC/Rigid Conduit

Features

• Threadless compression design for easy installation without threading conduit ends
• Concrete-tight seal suitable for harsh commercial and industrial environments
• UL and CSA certified ensuring compliance with electrical safety standards
• Durable zinc electroplated malleable iron construction for corrosion resistance
• Compatible with rigid metal conduit (RMC) and intermediate metal conduit (IMC)

Downloads & Links

• Catalog
