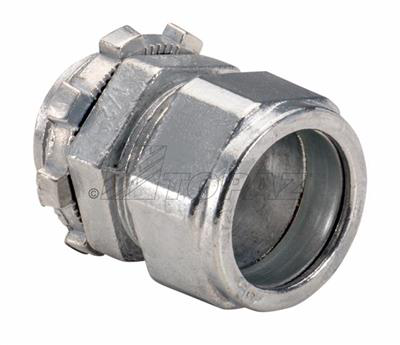

3" Zinc Die Cast Compression Type Connector
SKU: #178695
Part: #658
UPC: 751338166608
3" Zinc Die Cast Compression Type Connector
SKU: #178695
Part: #658
UPC: 751338166608
Next day delivery
Description
3" Zinc Die Cast Compression Type Connector for Electrical Conduit
The 3" Zinc Die Cast Compression Type Connector is designed to securely join EMT thin wall conduits to electrical boxes or enclosures. Manufactured by Southwire, this connector features a threaded by compression connection providing a concrete-tight bond suitable for dry location applications. Its zinc die cast construction offers a natural corrosion barrier ensuring durability and long service life. This product is UL listed and compliant with NEMA/ANSI FB-1 standards, making it a reliable choice for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers.
Specifications
- Material: Die Cast Zinc
- Connection: Threaded x Compression
- Insulation: Bare
- Product Weight: 1.6083 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 658
- Size: 3"
- UPC: 751338166608
Features
- Compression type connector ensuring a concrete-tight connection
- Constructed with zinc die cast for corrosion resistance
- Assembled with a die cast locknut for secure fitting
- Suitable for joining EMT to boxes or enclosures in dry locations
- UL listed and NEMA/ANSI FB-1 compliant
- Available in sizes from 1/2" to 4"
