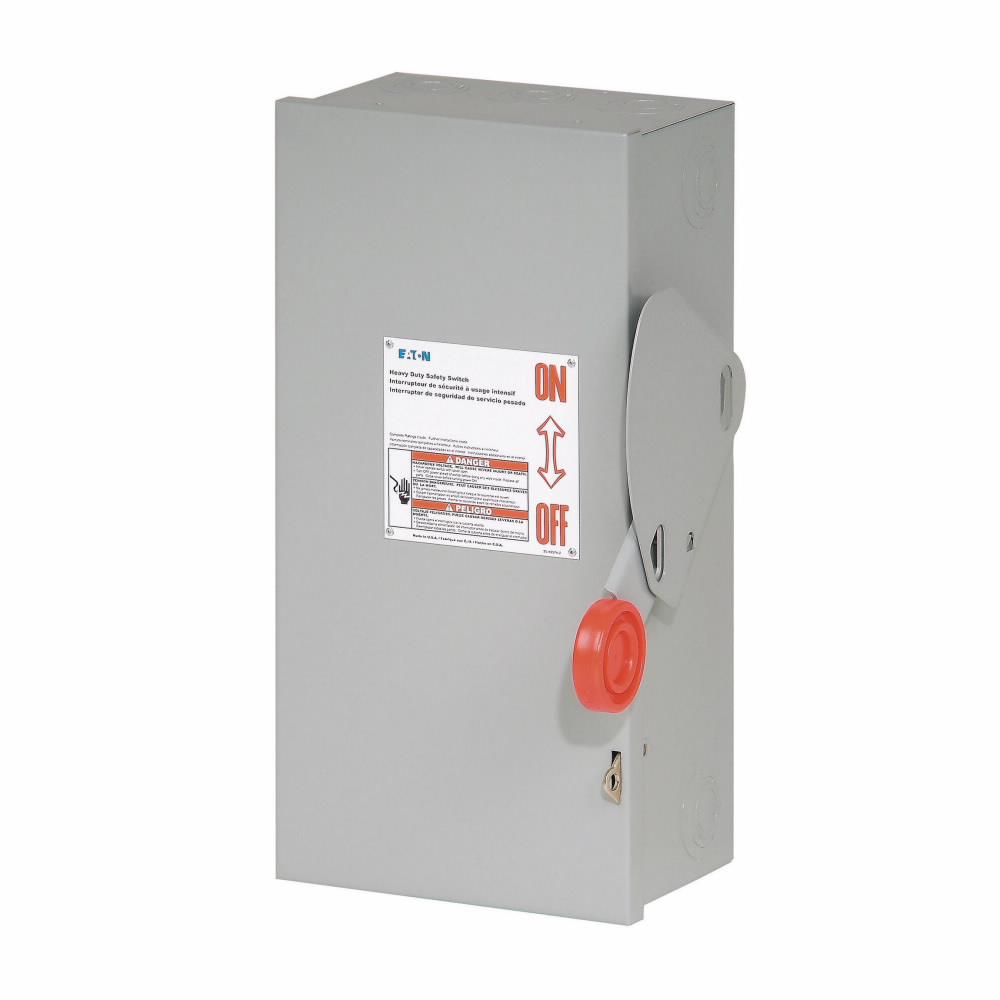

3 Wire 3 Pole Non-Fusible K Series Heavy-Duty Safety Switch 600 Volt AC 30 Amp
SKU: #163513
Part: #DH361URK
UPC: 782113205519
3 Wire 3 Pole Non-Fusible K Series Heavy-Duty Safety Switch 600 Volt AC 30 Amp
SKU: #163513
Part: #DH361URK
UPC: 782113205519
Description
3 Wire 3 Pole Non-Fusible K Series Heavy-Duty Safety Switch 600 Volt AC 30 Amp – Heavy Duty Safety Switch
This Eaton 3 Wire 3 Pole Non-Fusible K Series Heavy-Duty Safety Switch is designed for reliable electrical power distribution and safety applications. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring robust and durable disconnect switches. Rated for 600 Volt AC and 30 amperes, this heavy-duty switch is ideal for industrial and commercial electrical systems, providing a secure means of disconnecting power for maintenance and emergency shutdowns.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH361URK
- Amperage: 30 amperes
- Voltage Rating: 600V AC
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Fuse Configuration: Non-fusible
- Enclosure: NEMA 3R
- Enclosure Material: Painted Galvanized Steel
- Dimensions (HxWxL): 15.88 in x 8.13 in x 10 in
- Product Weight: 16 lb
- Max Horsepower Ratings: 7.5 HP at 480 Vac TD 1 Ph, 10 HP at 600 Vac TD 1 Ph, 10 HP at 240 Vac TD 3 Ph, 20 HP at 480 Vac TD 3 Ph, 30 HP at 600 Vac TD 3 Ph, 5 HP at 250 Vdc
- UL Listed
Features
- Heavy-duty, single-throw, non-fusible safety switch designed for industrial and commercial power distribution
- Painted galvanized steel enclosure providing durability and corrosion resistance
- NEMA 3R enclosure rating suitable for indoor and outdoor use, protecting against rain and sleet
- Suitable for service entrance use with optional neutral or ground lug kits
- Factory-installed ground lug included for enhanced grounding capacity
- Compact design with standard dimensions for ease of installation and replacement
- Provides visible ON/OFF status with optional viewing window modifications available through Eaton’s Flex Center
- Multiple accessory options including auxiliary contacts, fuse adapters, and control poles available for customization
- Compliant with U.S. National Electrical Code and UL safety standards
