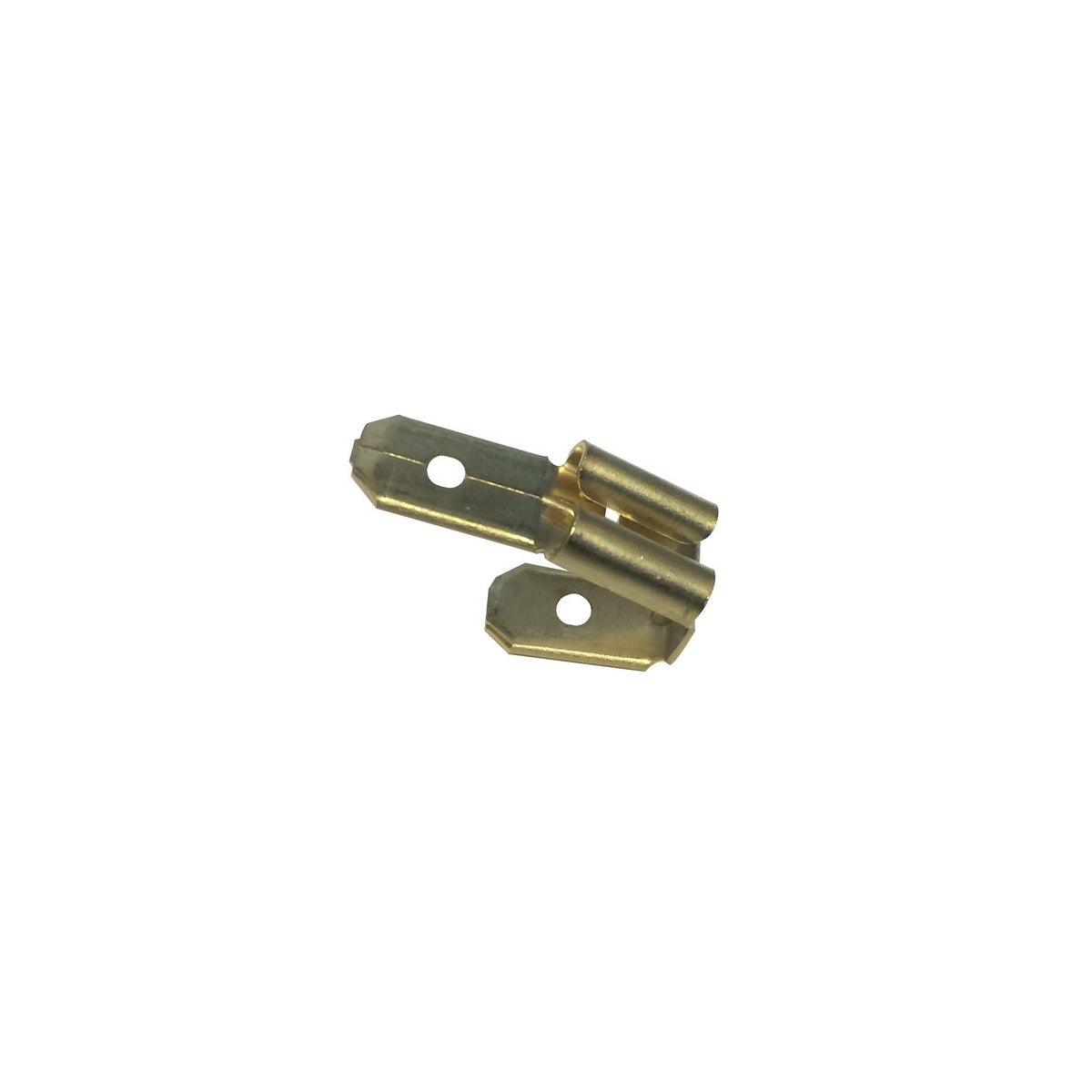

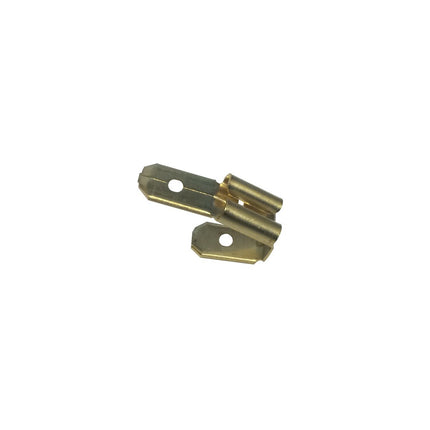

3-Way Adapter (2 Male Tabs) Electrical Connector

This 3-Way Adapter (2 Male Tabs) is designed for electrical distribution and wiring applications requiring a reliable connection. It features brass terminals for high conductivity and durability, making it suitable for use by electrical distributors and switchgear suppliers in lighting solutions and wire and cable assemblies.

Specifications

• Material: Brass
• Wire Range: 22-10 AWG
• Tab Size: 0.25 inches
• Length: 0.709 inches
• Width: 0.291 inches
• Voltage Rating: 600 V
• Amp Rating: 24 Amps
• Flammability Rating: UL94V-O
• Certifications: UL, cUL, RoHS

Features

• Non-insulated design for direct electrical contact
• Manufactured from high strength brass for conductivity and durability
• Two parallel 0.250" male tabs and one in-line 0.250" female tab configuration
• Compact size suitable for various electrical wiring setups

Downloads & Links

• Spec Sheet
