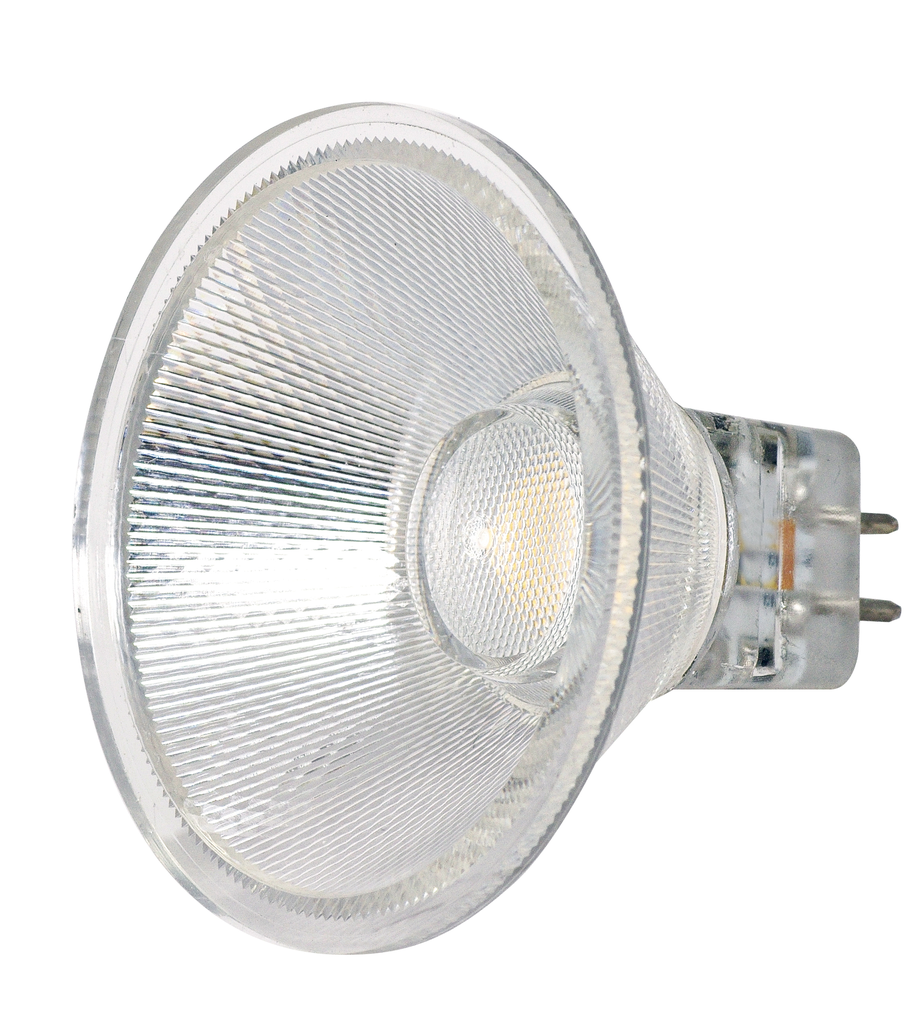

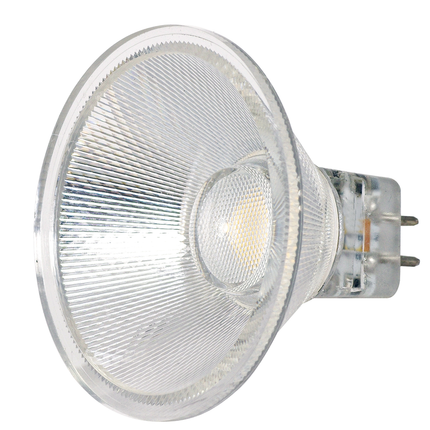

3 Watt LED MR16 GU5.3 Base Lamp – LED Lighting Solutions

This 3 Watt LED MR16 lamp by Satco is designed for low-voltage 12 Volt lighting applications, suitable for electrical distributors and lighting solutions providers. It features a GU5.3 bi-pin base, delivering warm white light at 3000K with a 40-degree beam angle, ideal for focused illumination. The lamp is dimmable, making it compatible with various dimming controls, and rated for enclosed fixtures, supporting versatile installation environments including damp locations.

Specifications

• Manufacturer Part #: S9552
• Wattage: 3W
• Voltage: 12V
• Shape: MR16
• Base: Bi Pin GU5.3
• Finish: Clear
• Color Temperature: Warm White (3000K)
• Lumens: 330 lumens
• Beam Spread: 40 degrees
• Dimmable: Yes
• Average Rated Life: 25,000 hours
• Operating Temperature: -20¬∞C to +45¬∞C
• Lens Finish: Clear
• Housing Color: Silver
• Rated for Enclosed Fixture: Yes
• Safety Listing: cULus
• Location Rating: Damp
• RoHS Compliant: Yes
• FCC Compliant: Yes
• Incandescent Equivalent: 20 watts

Features

• LED technology providing energy-efficient lighting with long life expectancy
• Compatible with forward phase, reverse phase, phase selectable, or triac dimming types
• Clear lens and finish for optimal light output and beam control
• Compact MR16 form factor for easy integration in existing fixtures
• Silver housing color for aesthetic and functional heat dissipation
• Suitable for damp locations, expanding application versatility
• 3 Year Limited Warranty ensuring product reliability and support
