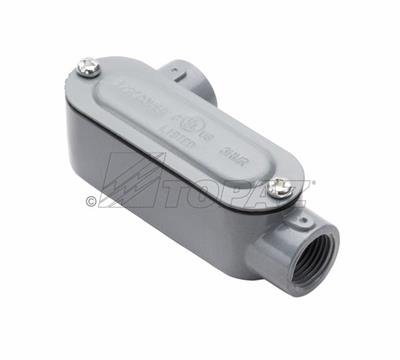

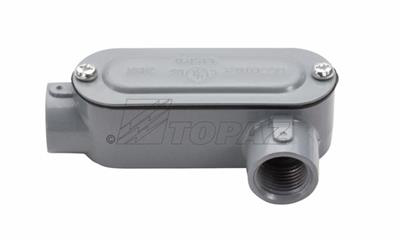

3" Threaded LL Type Rigid Conduit Body with Cover - Electrical Conduit Fitting

This 3" Threaded LL Type Rigid Conduit Body with Cover by Southwire is designed to provide access to conductors for pulling, splicing, and maintenance. Suitable for use in concrete and wet locations, it supports electrical distributors and lighting solutions requiring durable wire and cable management. The conduit body facilitates wiring system installation and maintenance in demanding environments.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: LL8CG
• Material: Die Cast Aluminum
• Form: LL
• Hub Size: 3"
• Dimensions: Length 12.75 in, Height 4.682 in, Width 5.506 in
• Product Weight: 7.0000 lbs
• Mounting: Wall Mount
• Application: Provides access to conductors for pulling, splicing, and maintenance; suitable for use in concrete and wet locations
• UPC: 751338211117

Features

• Threaded LL type with cover and gasket
• NPT tapered hubs for secure conduit connections
• Copper-free aluminum die cast construction for corrosion resistance
• Stamped steel cover with neoprene rubber gasket for environmental sealing
• Powder coat finish for durability in harsh conditions
• UL Listed to Standard 514A, compliant with Federal Specification W-C-586D and NEMA FB 1

Downloads & Links

• Spec Sheet
