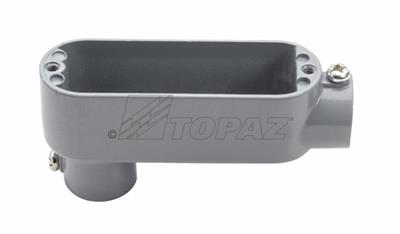

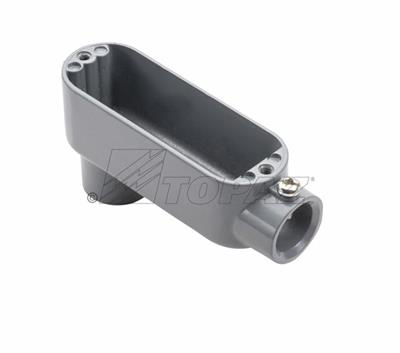

3" Set Screw LB Type EMT Conduit Body – Electrical Distributor Lighting Solutions

The 3" Set Screw LB Type EMT Conduit Body is designed to provide access to conductors for pulling, splicing, and maintenance in electrical installations. Suitable for use in concrete, this conduit body supports wire and cable management in commercial and industrial wiring systems. It is an essential component for electrical distributors and switchgear suppliers looking to ensure safe and efficient conduit routing and wiring access.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: ELB8
• Size: 3"
• Maximum Number of Conductors: 3
• Maximum Wire Size: 4/0 AWG
• Weight per Case: 6.0 lbs
• Dimensions (inches): A - 12.50, B - 5.657, C - 4.45
• UPC: 751338205406
• Standards: UL Standard 514A, Federal Spec. W-C-586D, NEMA FB 1

Features

• Set screw EMT LB type design for secure conduit connections
• Constructed from copper-free aluminum die cast for durability
• Steel screws for reliable fastening
• Powder coat finish for corrosion resistance
• Suitable for embedding in concrete installations

Downloads & Links

• Spec Sheet
