3-Phase 4 Wire Main Lug Load Center 42 Circuits - Electrical Load Center

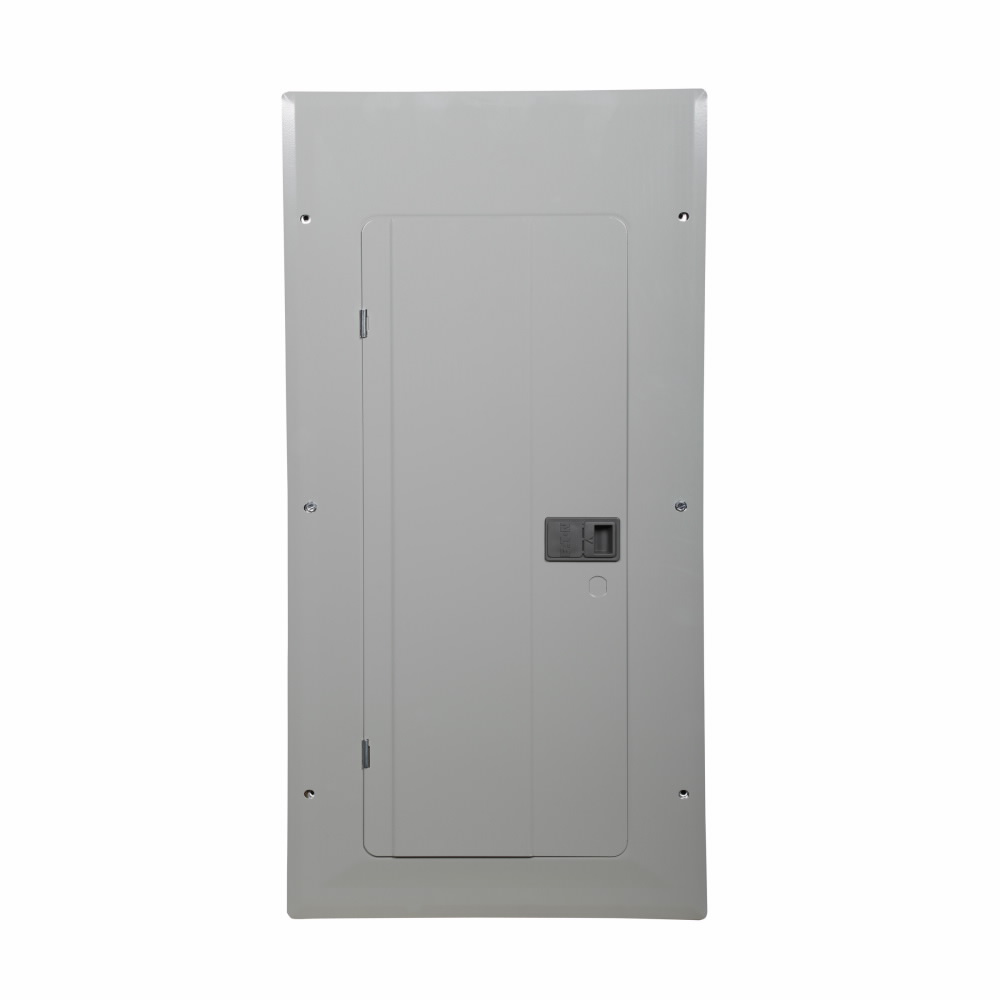

This Eaton 3-Phase 4 Wire Main Lug Load Center is designed for reliable power distribution in commercial and light industrial applications. With a 150 Amp rating and 42 circuits, it supports 208Y/120/240 Volt AC systems. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers, this load center features a metallic enclosure and aluminum bus material, providing durability and excellent conductivity. Its combination mounting type offers flexible installation options.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: 3BR2442L150
• Number of Circuits: 42
• Number of Phases: 3
• Amperage: 150 amperes
• Bus Material: Aluminum
• Enclosure Material: Metallic
• Mounting Type: Combination
• Dimensions (W x H x L): 4 in x 21 in x 3.88 in
• Product Weight: 28.2 lbs
• UPC: 786676441704

Features

• 3-phase, 4-wire configuration suitable for 208Y/120/240 Volt AC systems
• Main lug only design for sub-panel or distribution applications
• Aluminum bus for superior conductivity and corrosion resistance
• Durable metallic enclosure suitable for indoor installations
• Combination mounting for versatile installation options
• 42 circuit capacity supports extensive branch circuit distribution
• Compact size enabling flush mounting within standard stud width
