3" Malleable Iron Rigid Threaded Type C Conduit Body
SKU: #183496
Part: #C8M
UPC: 751338200524
3" Malleable Iron Rigid Threaded Type C Conduit Body
SKU: #183496
Part: #C8M
UPC: 751338200524
Next day delivery
Description

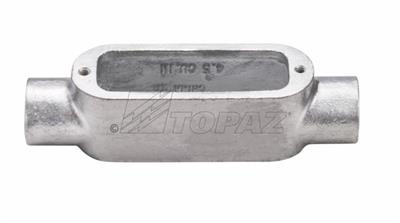

3" Malleable Iron Rigid Threaded Type C Conduit Body – Electrical Conduit Accessory
This 3" Malleable Iron Rigid Threaded Type C Conduit Body is designed to provide access to conductors for pulling, slicing, and maintenance. It is suitable for use by electrical distributors and switchgear suppliers requiring durable conduit solutions for wire and cable management. The conduit body connects conduit sections and facilitates future system changes or maintenance in electrical installations.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: C8M
- Material: Malleable Iron
- Finish: Zinc Plated
- Form: C
- Hub Size: 3"
- Dimensions (L x H x W): 15.125 in x 4.75 in x 4.312 in
- Product Weight: 12.2 lbs
- Mounting: Wall Mount
- Application: Provides access to conductors for pulling, slicing, and maintenance
Features
- NPT tapered hubs for secure conduit connections
- Suitable for use in concrete installations
- Enables maintenance and future system changes without conduit removal
- Durable zinc plated finish for corrosion resistance
